Visual Inspection

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

If the cooling system problem is not caused by a driving condition, perform a visual inspection to determine if there was a recent service or accident repair, including the following:

Loose/damaged water pump drive belt
Incorrect cooling system refilling (trapped air or low level)
Brakes possibly dragging
Damaged hoses
Loose/damaged hose clamps
Damaged/incorrect engine thermostat
Damaged cooling fan motor, fan blade and fan shroud
Damaged head gasket
Damaged water pump
Damaged radiator
Damaged coolant recovery system
Damaged heater core
Open/shorted electrical circuits

If the visual inspection reveals none of the above as cause for a cooling system complaint, refer to the following diagnostic charts.

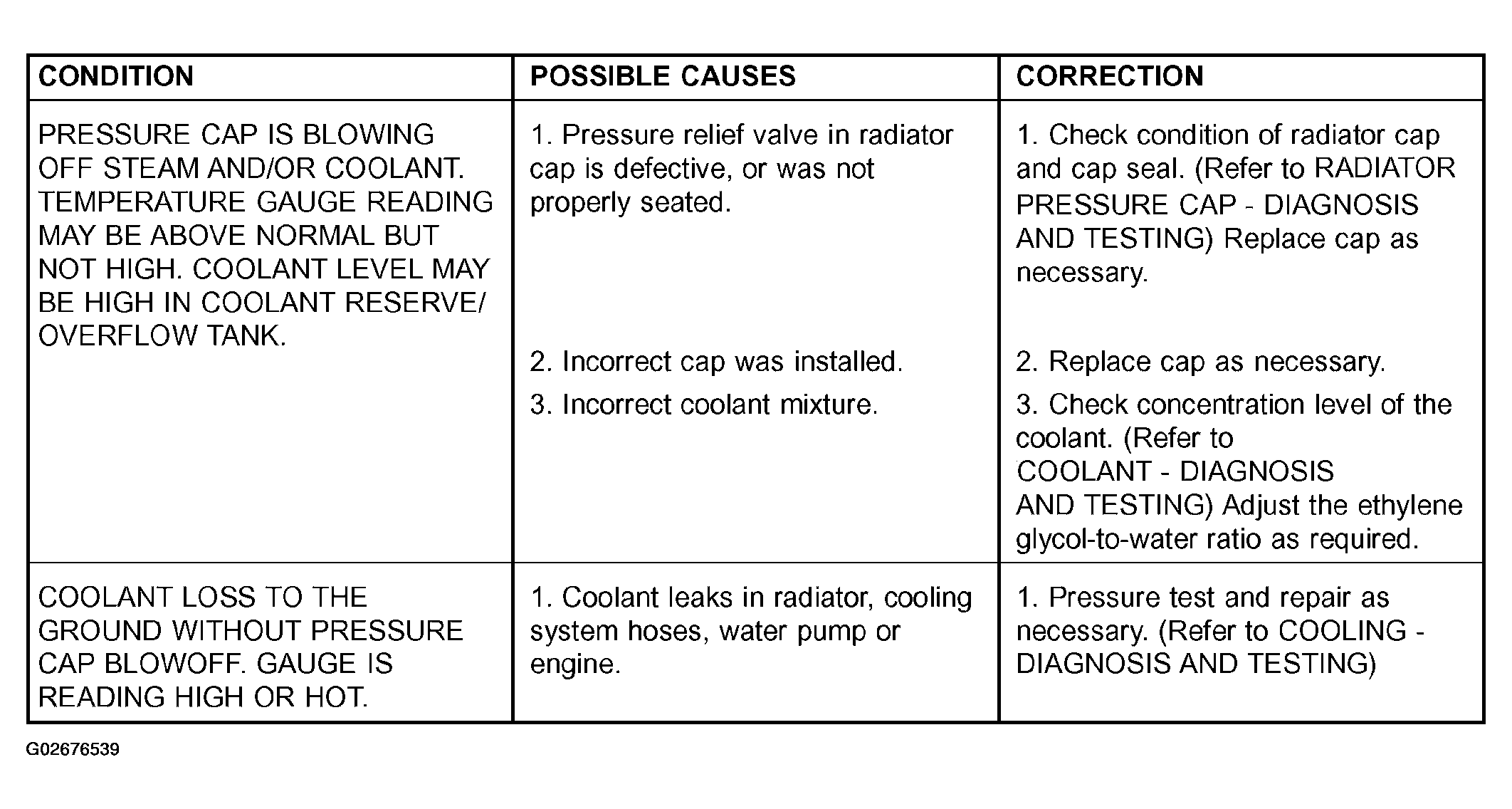

Fig 1: Cooling System Diagnosis Chart (1 Of 4)

G02676539

Courtesy of DAIMLERCHRYSLER CORP.

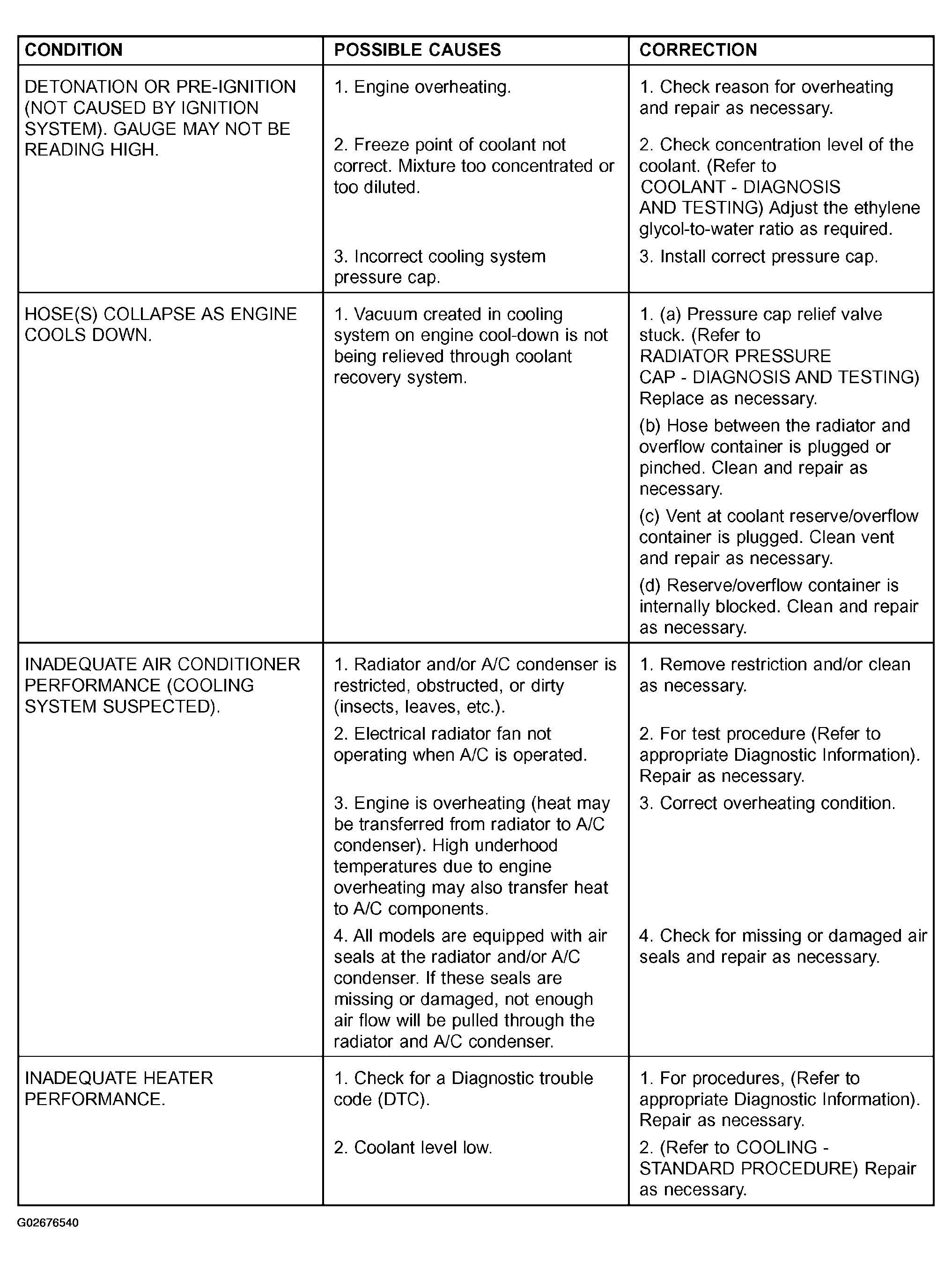

Fig 2: Cooling System Diagnosis Chart (2 Of 4)

G02676540

Courtesy of DAIMLERCHRYSLER CORP.

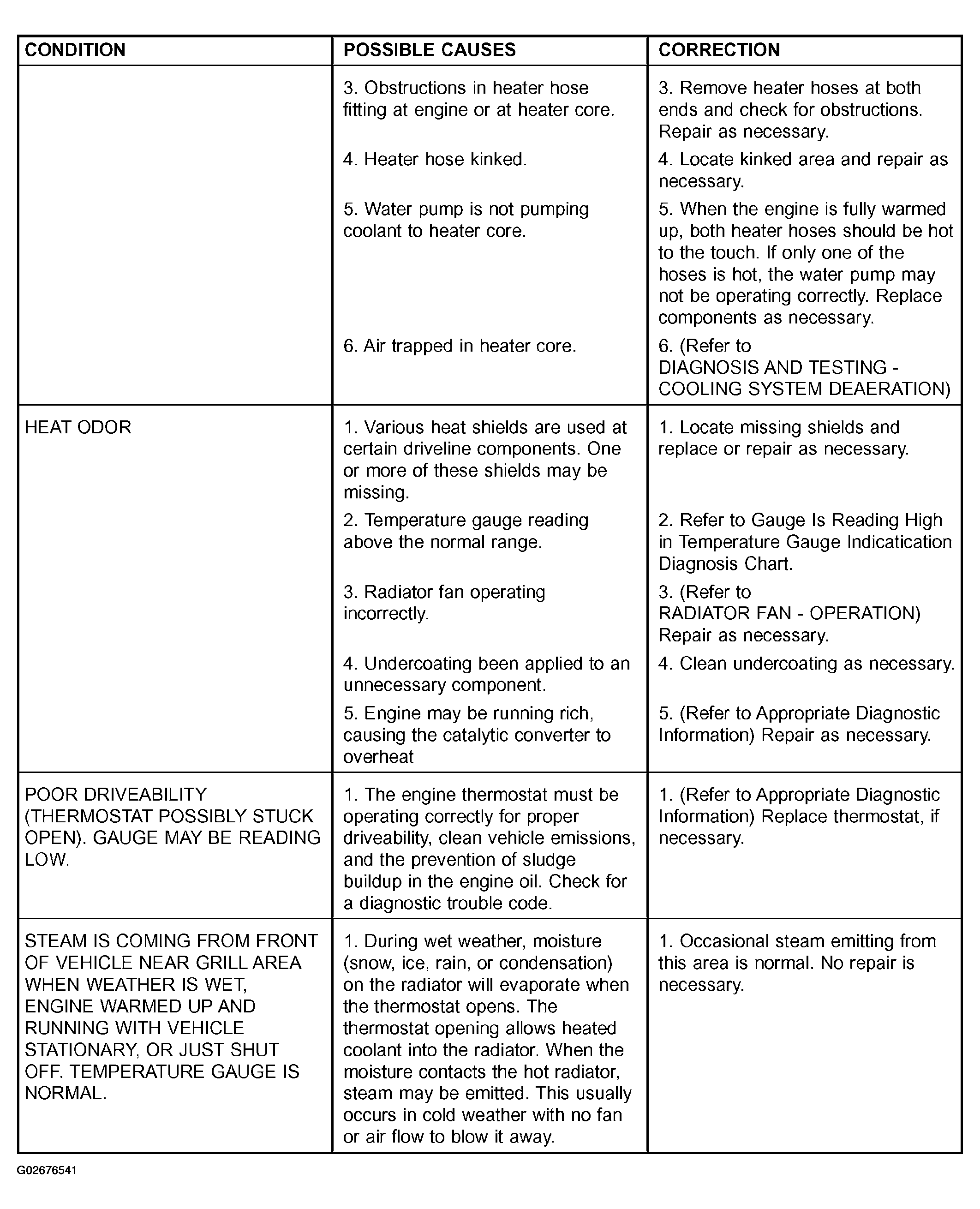

Fig 3: Cooling System Diagnosis Chart (3 Of 4)

G02676541

Courtesy of DAIMLERCHRYSLER CORP.

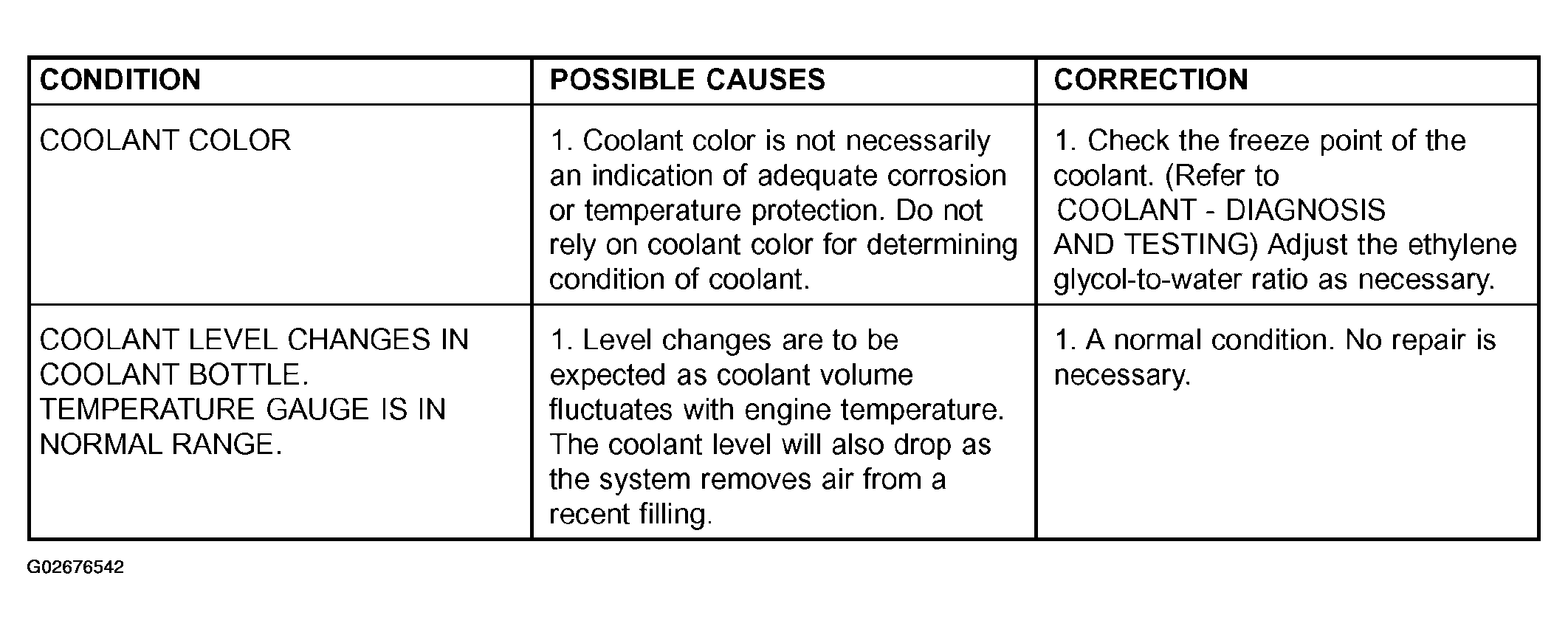

Fig 4: Cooling System Diagnosis Chart (4 Of 4)

G02676542

Courtesy of DAIMLERCHRYSLER CORP.

Refer to (Fig 6) when using the TEMPERATURE GAUGE INDICATION DIAGNOSIS CHART.

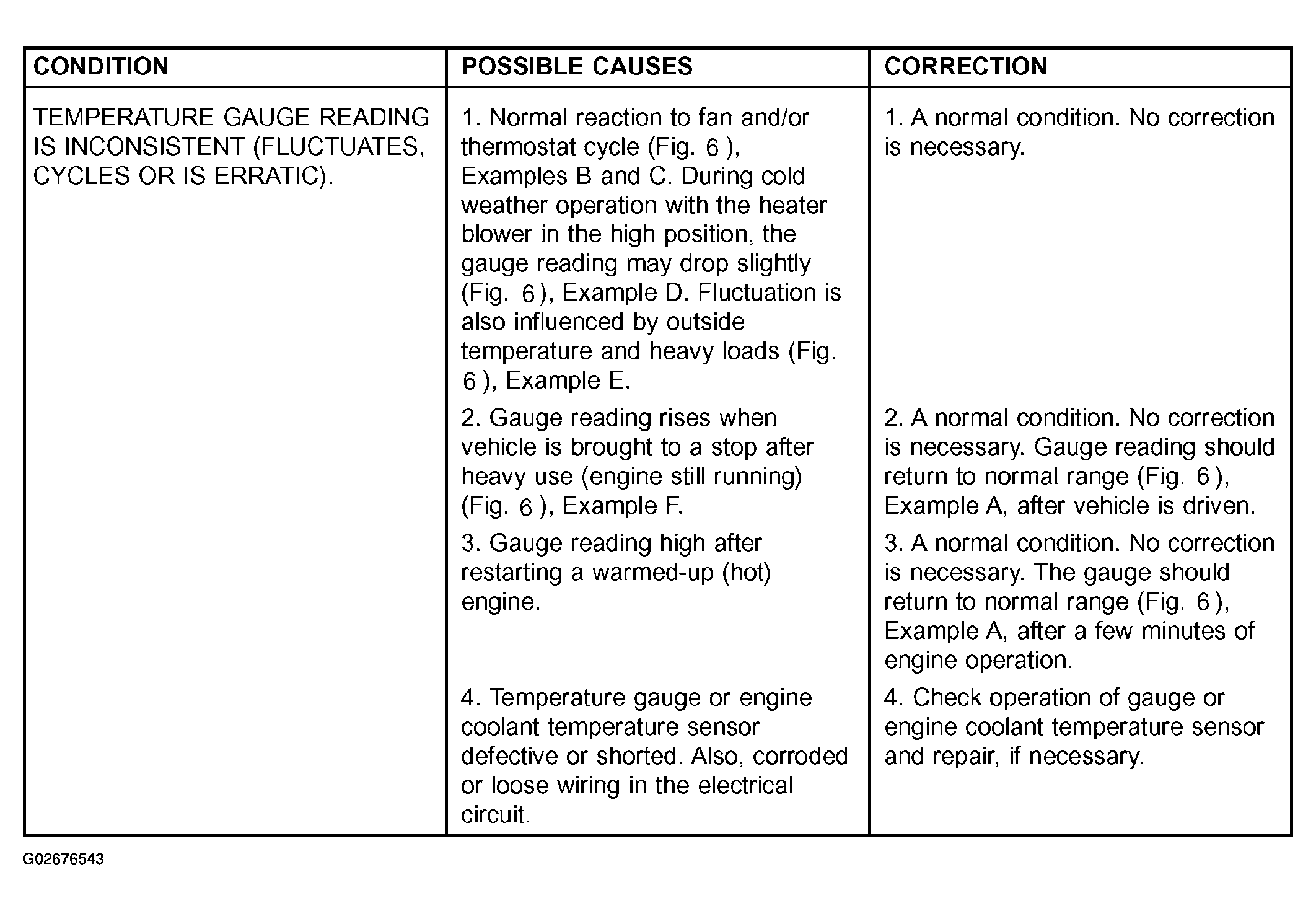

Fig 5: Temperature Gauge Indication Diagnosis Chart

G02676543

Courtesy of DAIMLERCHRYSLER CORP.

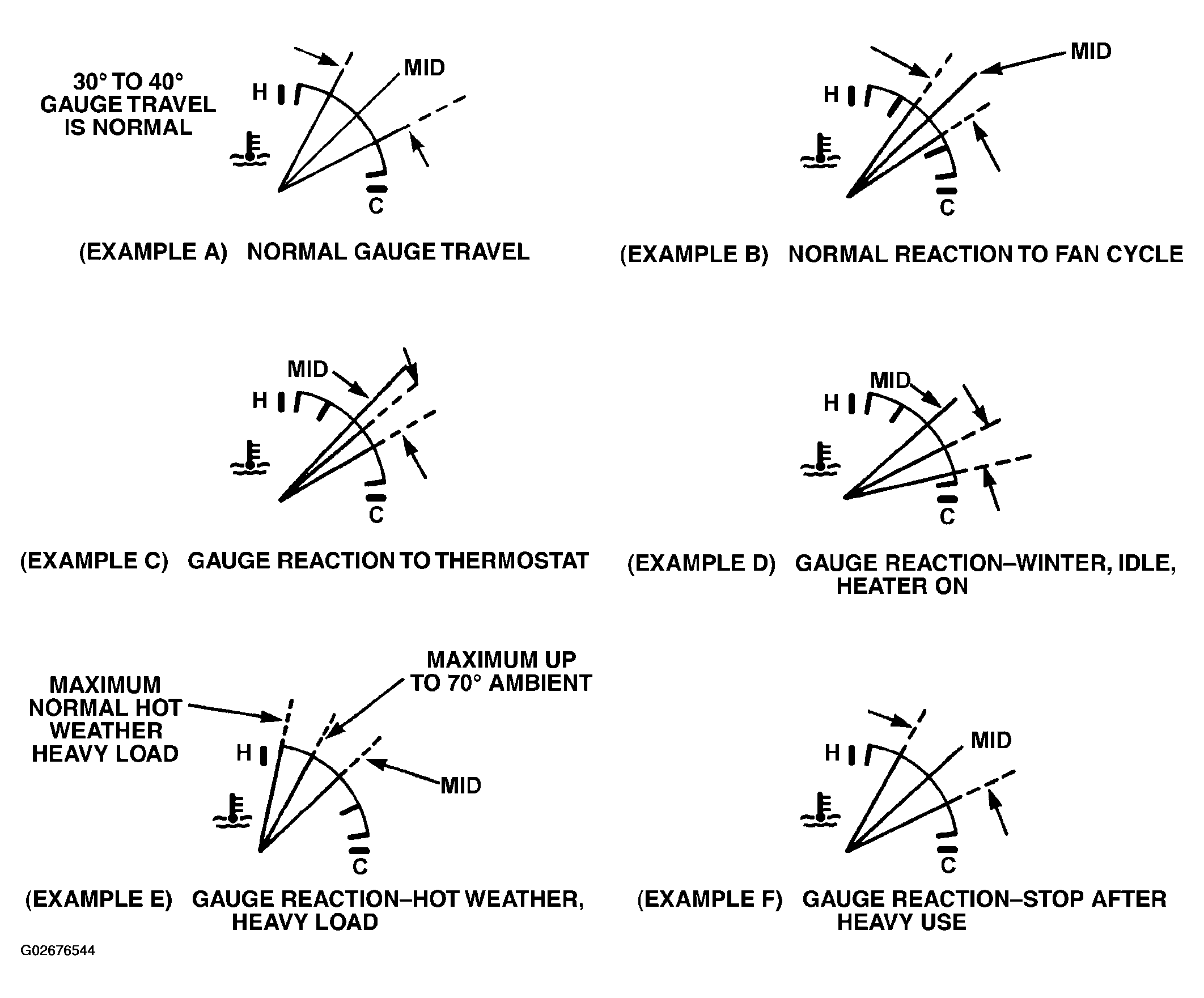

Fig 6: Identifying Temperature Gauge Indications

G02676544

Courtesy of DAIMLERCHRYSLER CORP.
