Lower Drive Unit: Description
WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.

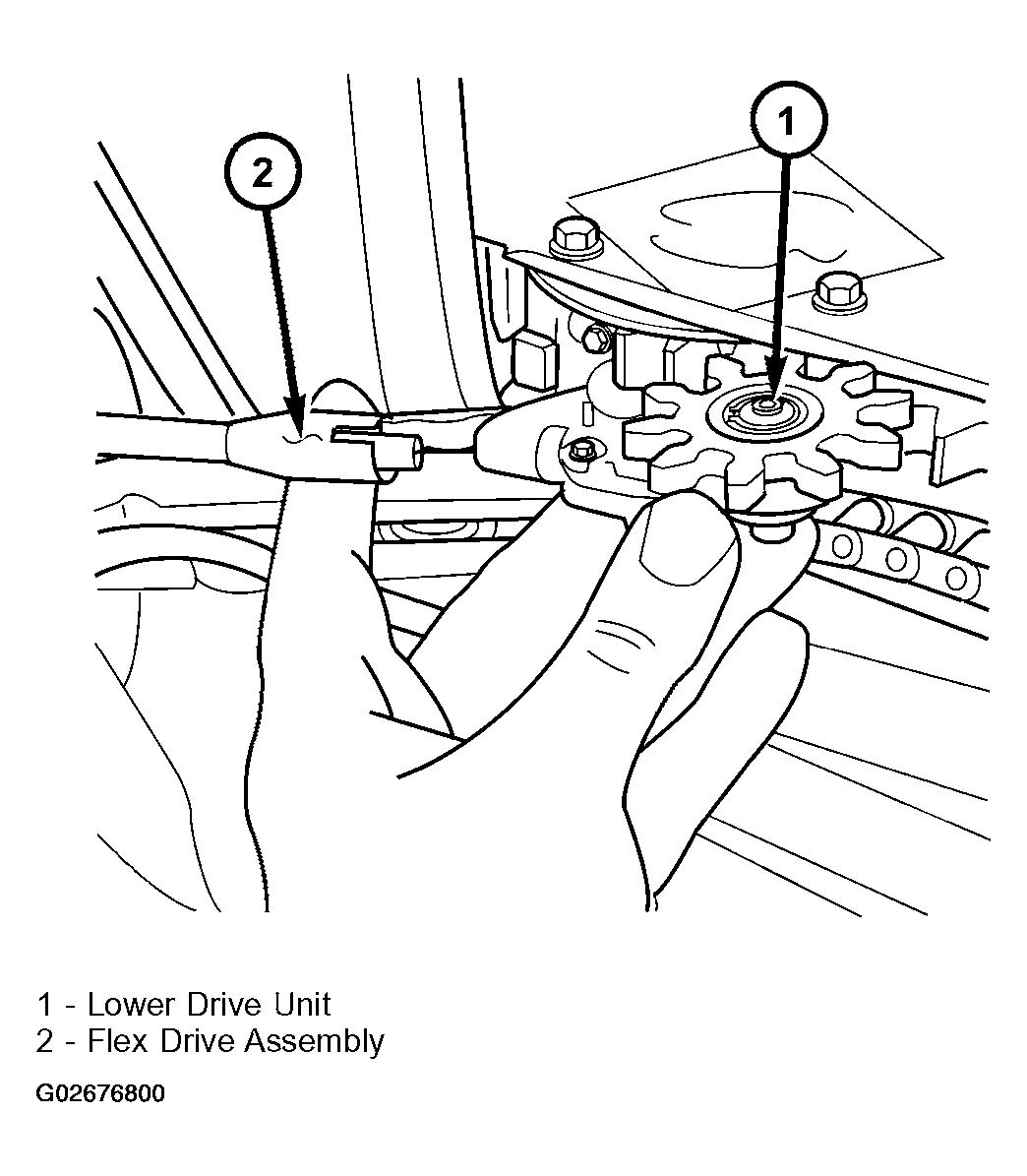

Vehicles equipped with a power sliding side door utilize a lower drive unit. The lower drive unit is located on the sliding door lower hinge assembly (Fig 1 ). This drive unit is used to transfer the lateral rotation of the flex drive assembly into longitudinal movement via the drive unit gear and door track rack teeth (Fig 1 ).
The lower drive unit is a replaceable component. Consult your Mopar parts catalog for specific part numbers.
