Bench Seat Track: Installation

WARNING: This page is about a different car, the 2004 Dodge Grand Caravan, 2004 Dodge Caravan, and 2004 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
  1. Place track in position on seat riser.

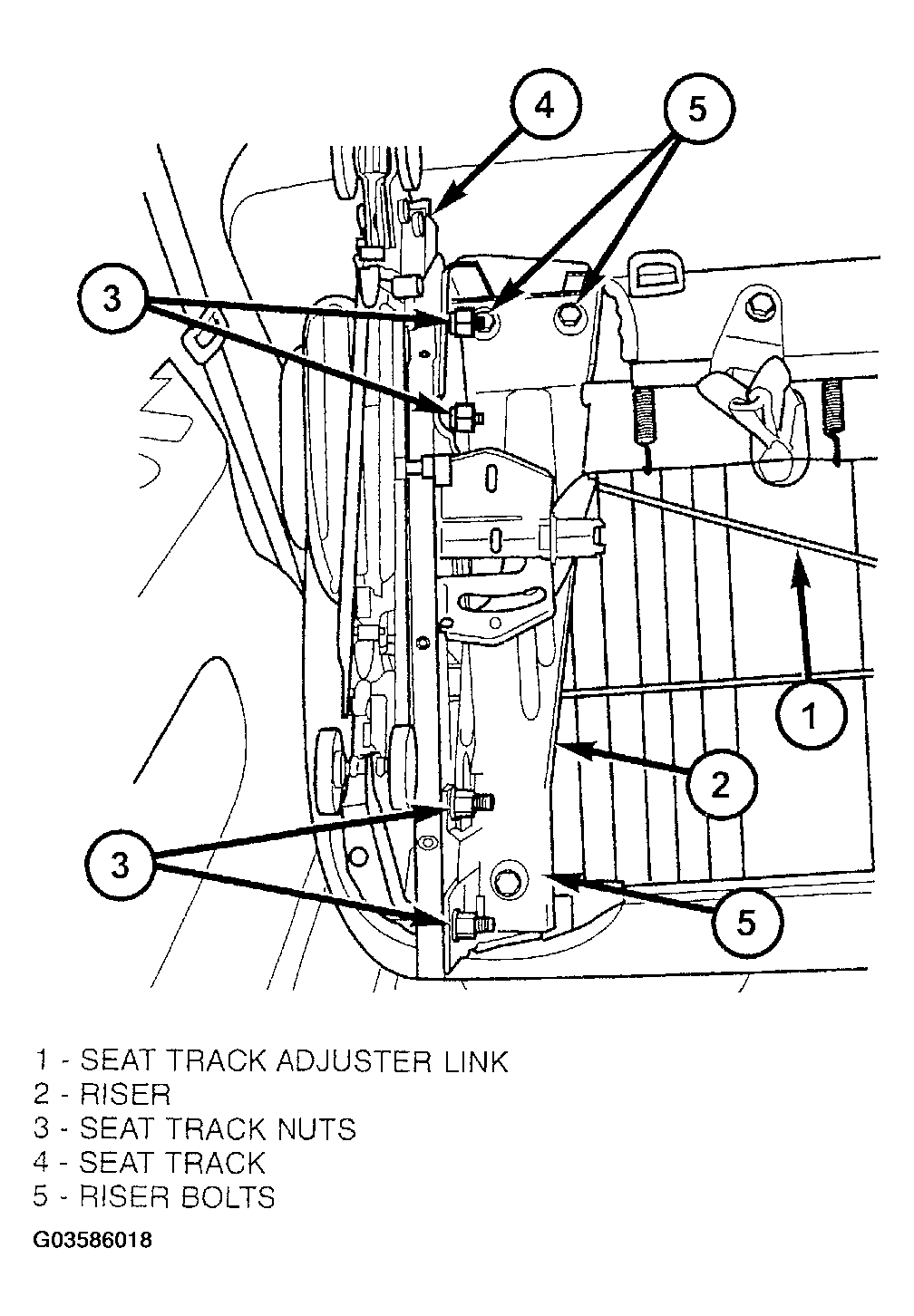

  2. Install nuts attaching track to seat riser. (Figure ). Tighten nuts to 48 N.m (35 ft. lbs.) torque.
  3. Engage seat track adjuster link wire onto track being installed.
  4. Install second row seat into vehicle.
