Section 154 (Seats): Seat-Front: Installation
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not reuse the seat fasteners, always replace with new ones.

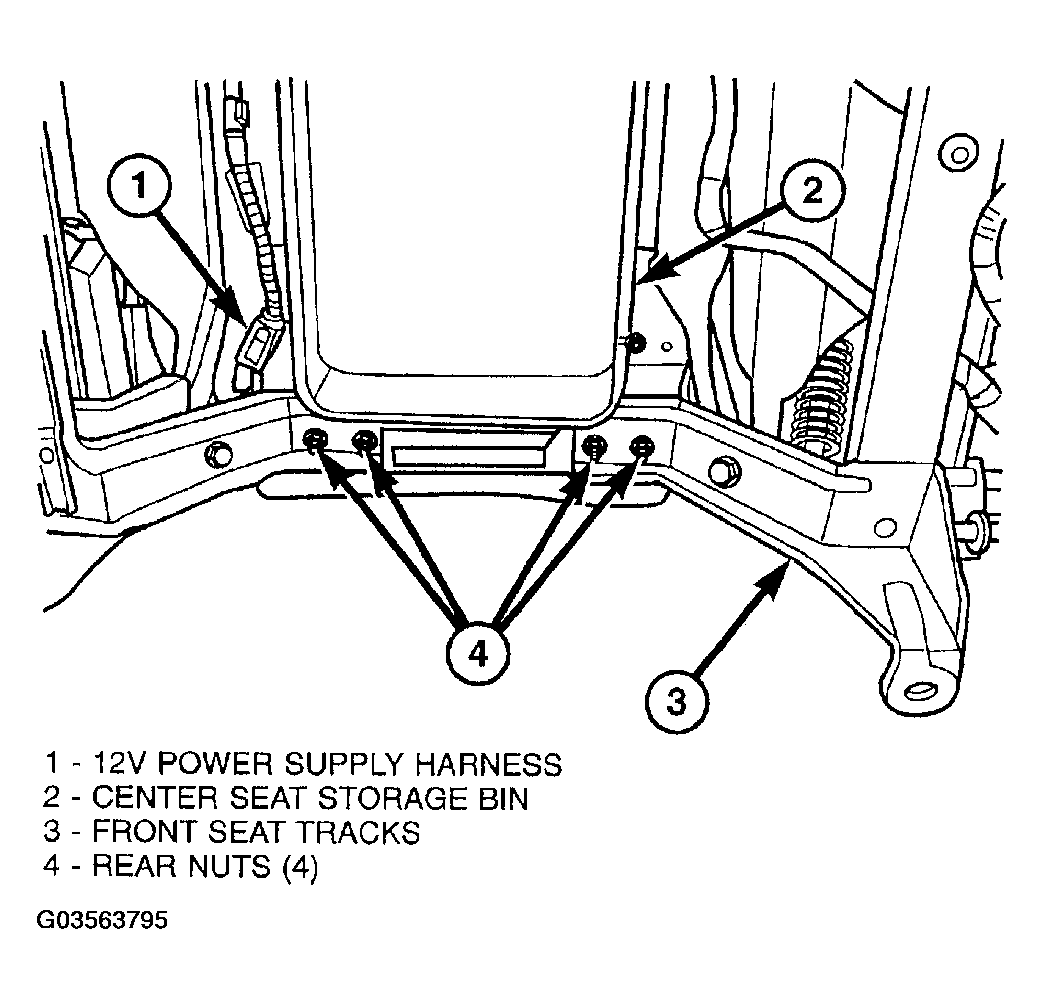

- Position each seat section into the vehicle and tip back.
- Install the three nuts attaching the center seat section to the other seat, and tighten to 25 N.m (18 ft. lbs.)
- Roll the seat assembly forward and install new rear bolts.
- Connect the 12v power supply electrical connector.
- Tighten the rear bolts to 40 N.m (30 ft. lbs.).
- Fold the seat backs up and slide the seats to the rear.
- Install new front bolts and tighten to 28 N.m (21 ft. lbs.).
