C131 (5.7L/Diesel) Connector End View
WARNING: This page is about a different car, the 2004 Dodge Pickup and 2004 Dodge Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

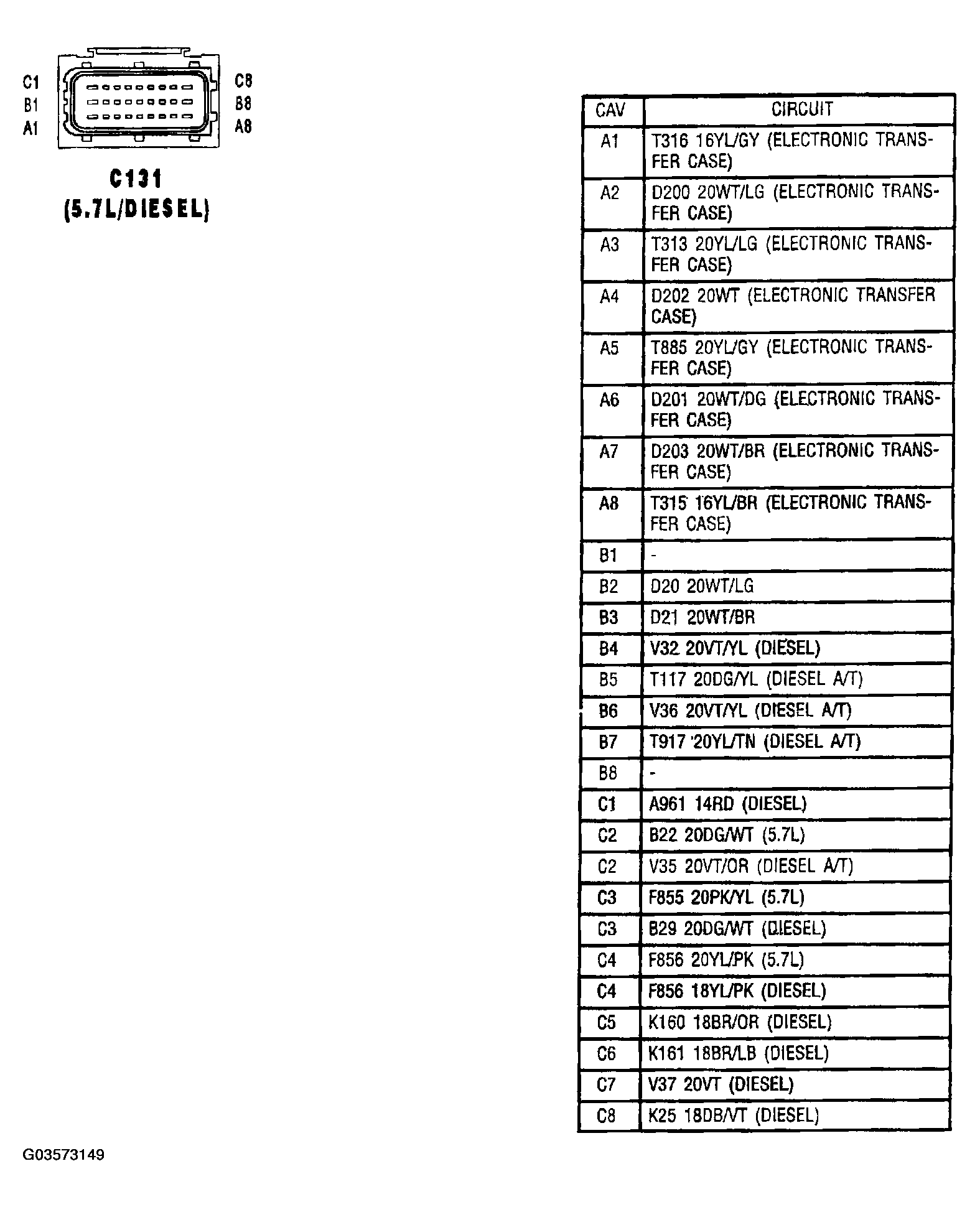

Fig 1: Engine Side (5.7L/Diesel) Inline Connector End View (C131)
Courtesy of DAIMLERCHRYSLER CORP.

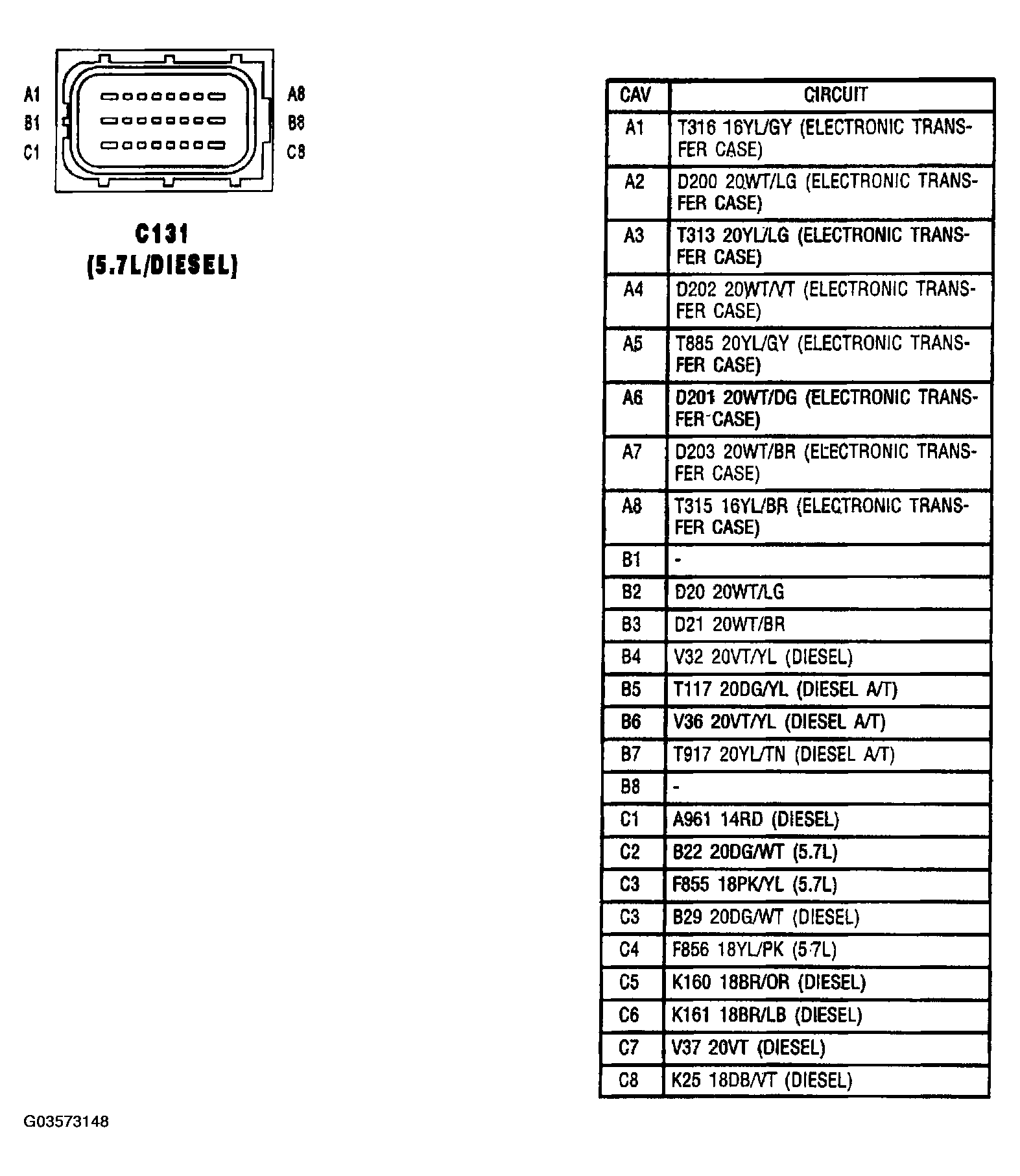

Fig 1: Headlamp & Dash Side (5.7L/Diesel) Inline Connector End View (C131)
