Circuit Schematic

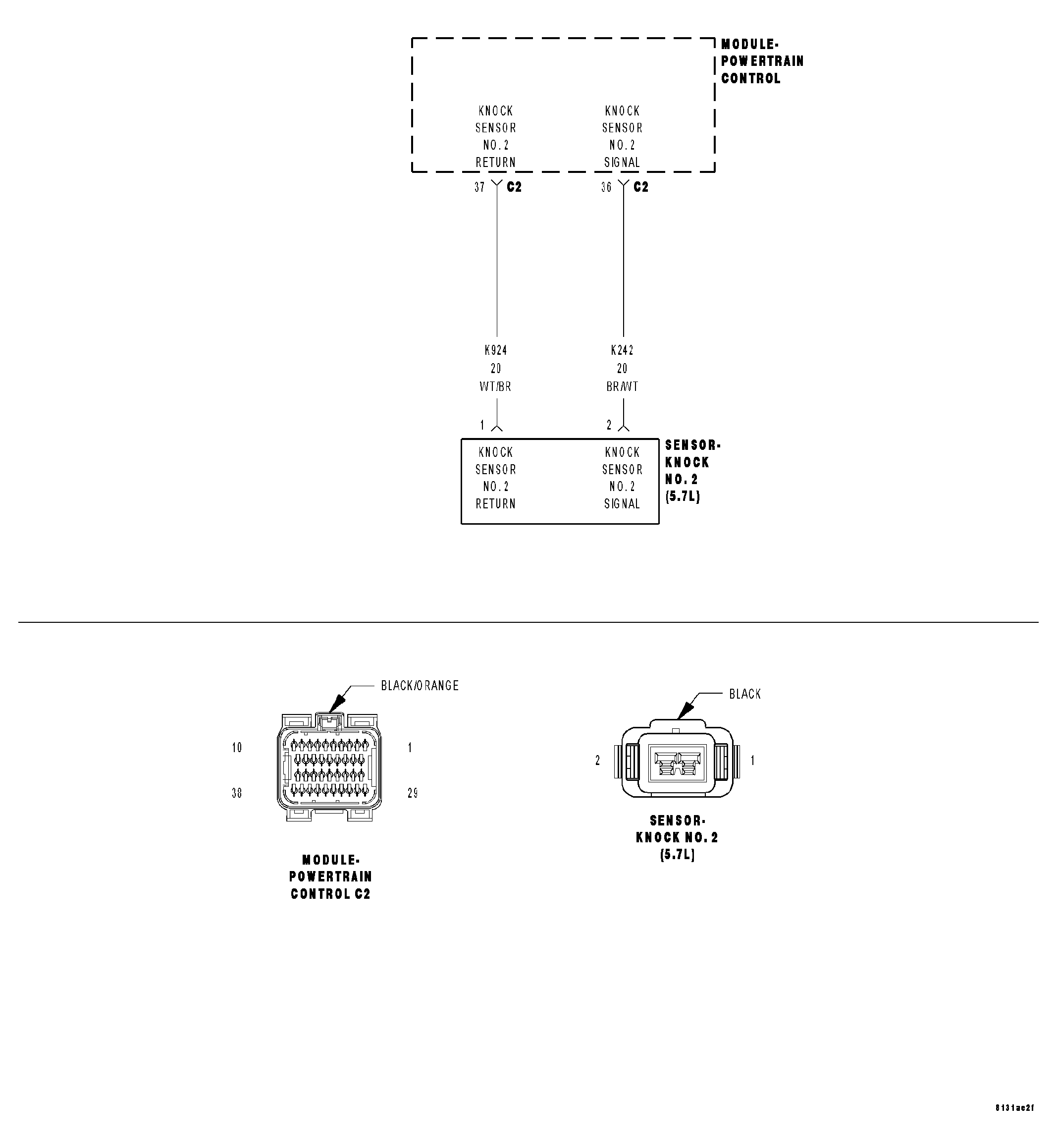

Fig 1: Knock Sensor 2 Circuit Schematic
GC0014945Courtesy of DAIMLERCHRYSLER CORP.

For the Engine circuit diagram (Refer to ENGINE - SCHEMATICS AND DIAGRAMS) .
