U0019 - Can B Bus-DDM/PDM: Notes

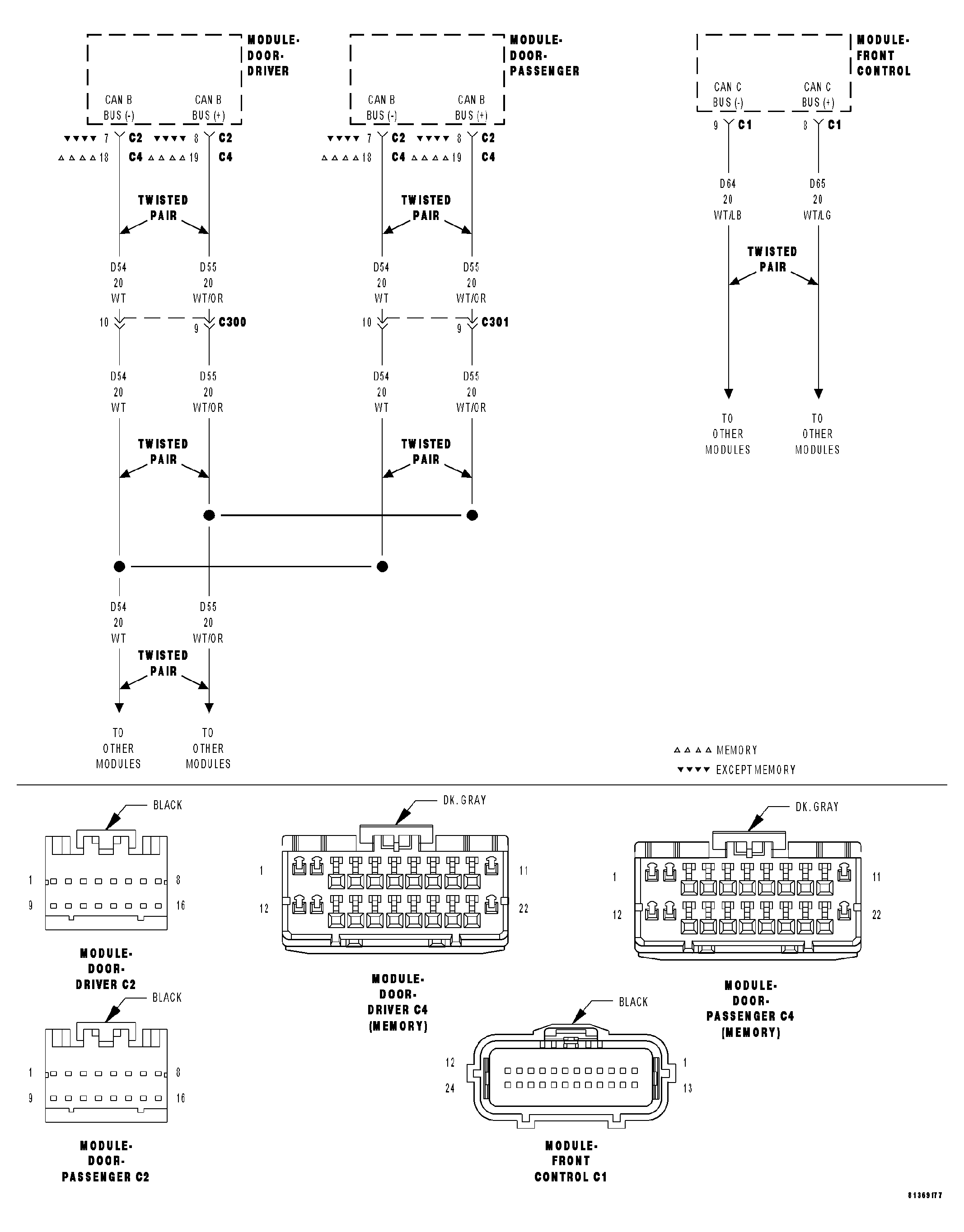

Fig 1: U0019 CAN DOOR MOD

GC0016474

Courtesy of DAIMLERCHRYSLER CORP.
