Front Wiper Module: Installation

Fig 1: Grommet
GC0016718Courtesy of DAIMLERCHRYSLER CORP.
  1. Inspect the grommet (1) that the wiper motor sits in. If cracked, brittle, or damaged, replace the grommet (1).
    Fig 2: Wiper Motor
    GC0016719Courtesy of DAIMLERCHRYSLER CORP.
  2. While positioning the wiper module in its mounting location, make sure that the dowel on the bottom of the wiper motor (1) slides into the mounting grommet (2) correctly.

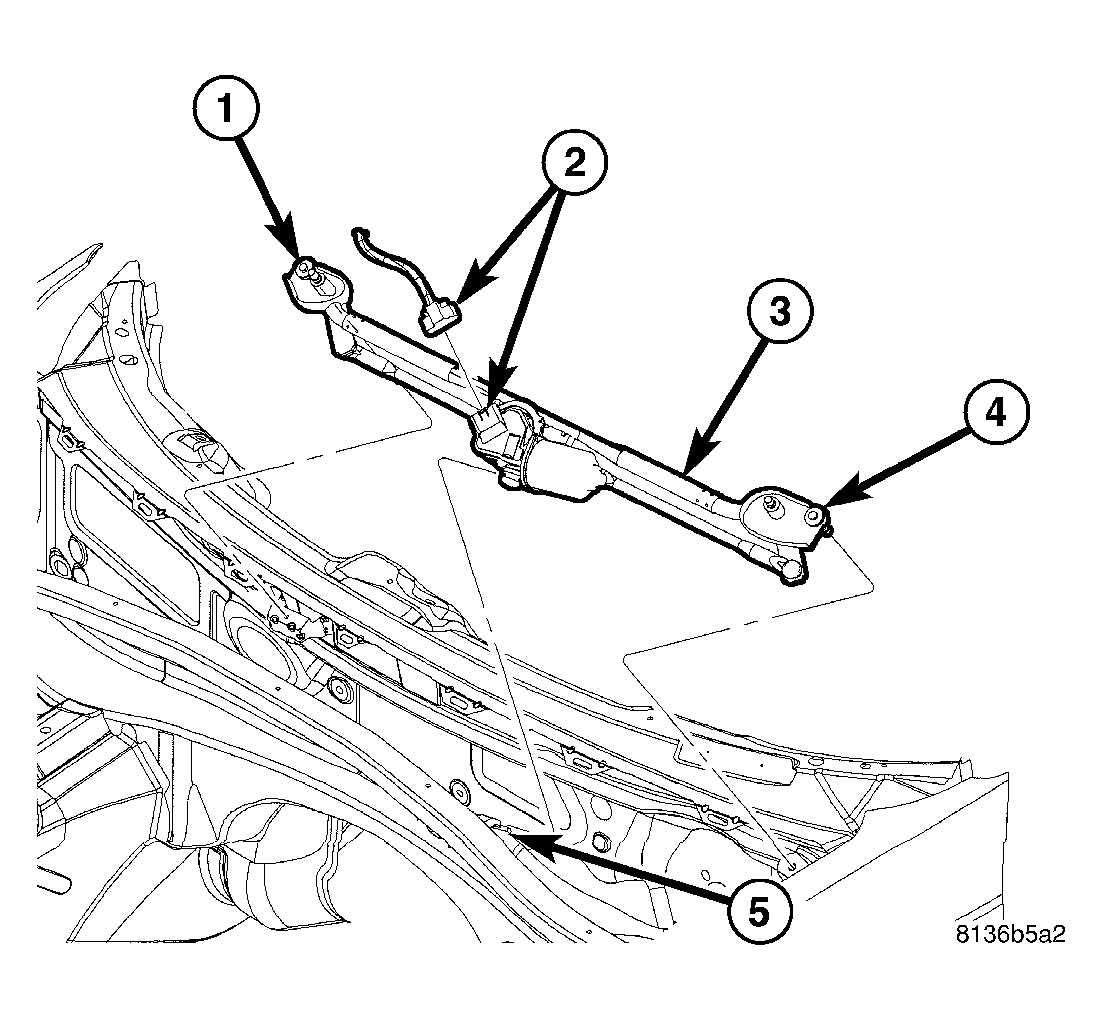

    Fig 3: Removing/Installing Wiper Module
    GC0016716Courtesy of DAIMLERCHRYSLER CORP.
  3. Install the two retaining bolts (1 and 4). Torque bolts to 8 N.m (70 in. lbs.).
    Fig 4: Wiper Motor Electrical Connector
    GC0016714Courtesy of DAIMLERCHRYSLER CORP.
  4. Connect the wiper motor electrical connector (1).

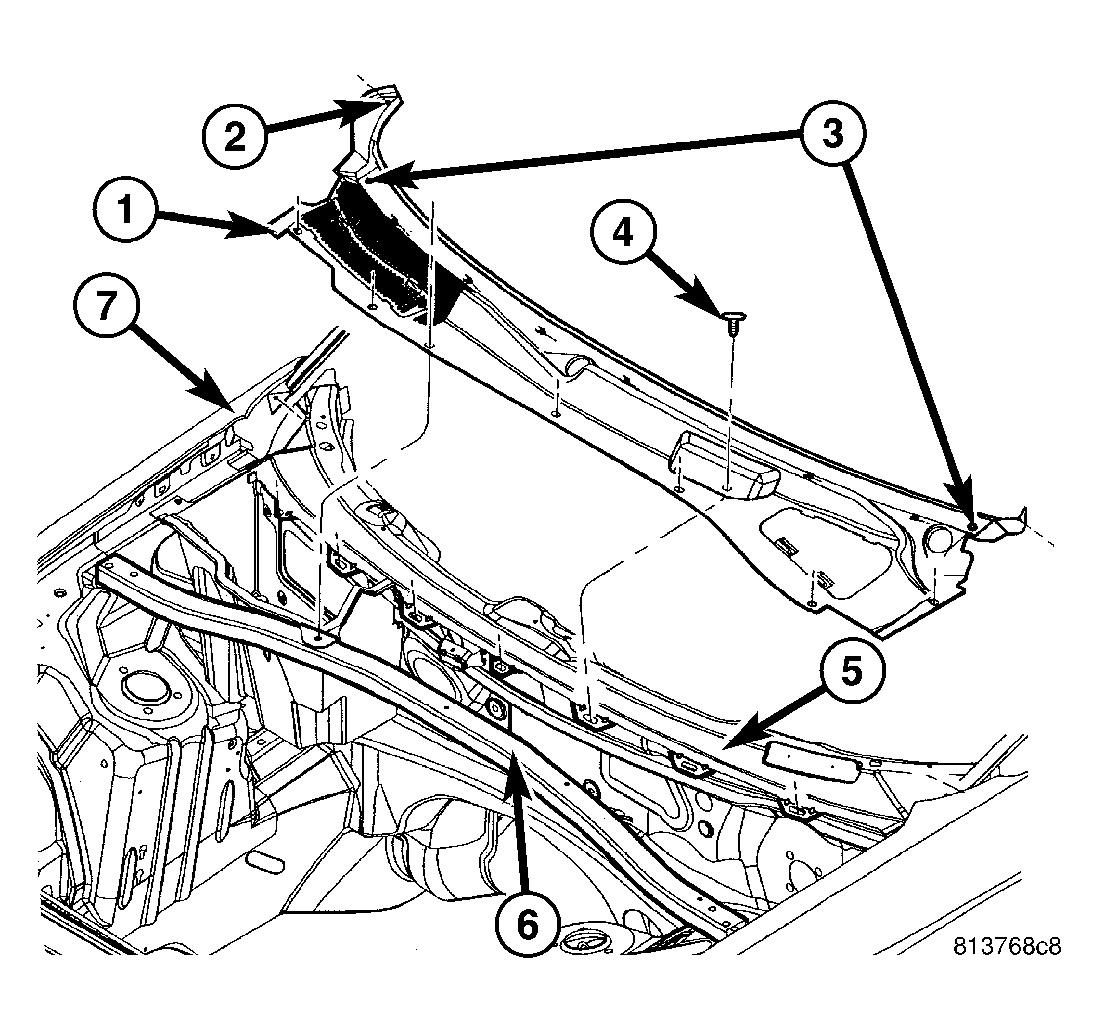

    Fig 5: COWL PANEL
    GC0013423Courtesy of DAIMLERCHRYSLER CORP.
  5. Install the cowl panel (1) (Refer to BODY/EXTERIOR/COWL GRILLE - INSTALLATION) .

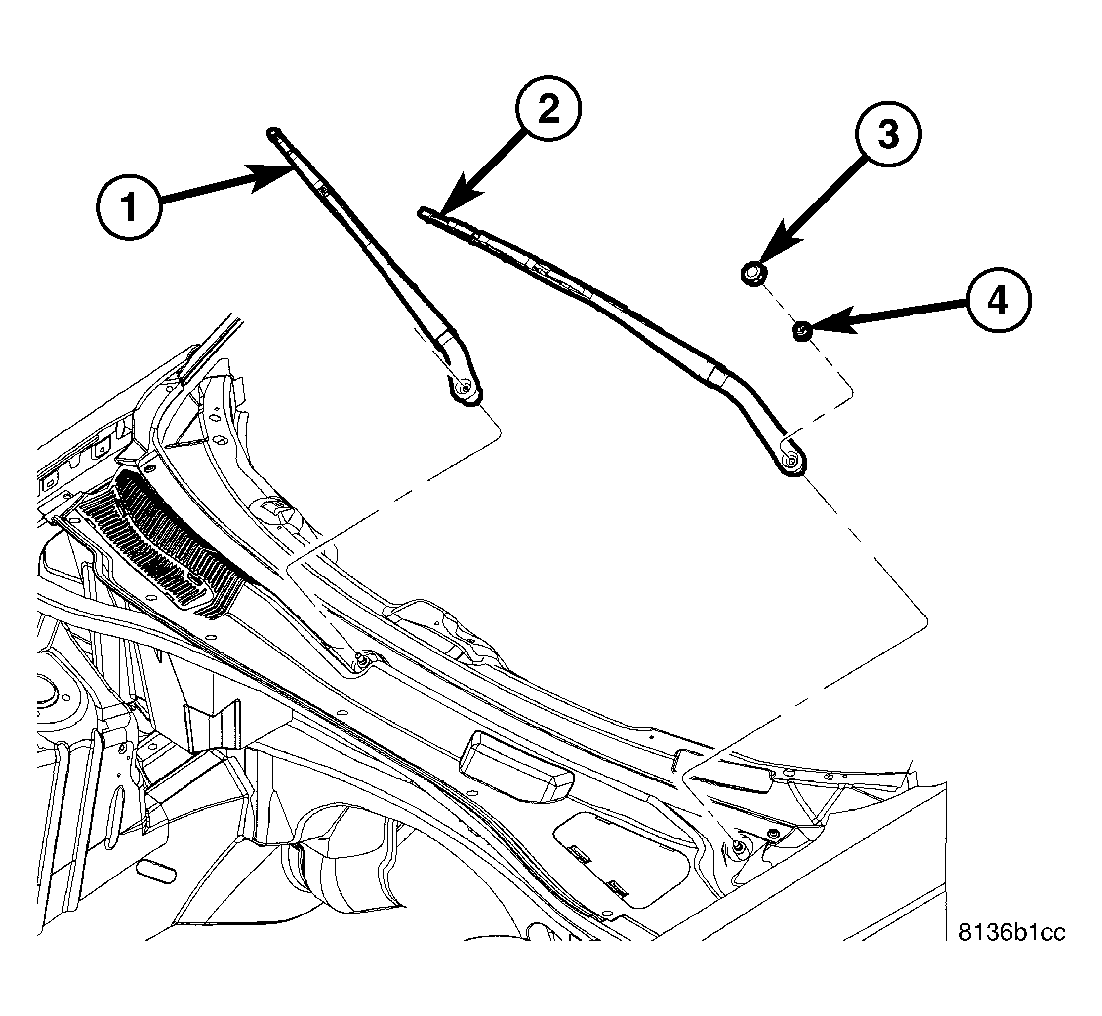

    Fig 6: Removing/Installing Front Wiper Arms
    GC0016715Courtesy of DAIMLERCHRYSLER CORP.
  6. Install the wiper arms (1) and (2) (Refer to ELECTRICAL/WIPERS/WASHERS/WIPER ARMS - INSTALLATION) . Torque nuts to 18 N.m (150 in. lbs.).
  7. Connect the battery negative cable.
