Module-Heated Seats: Installation

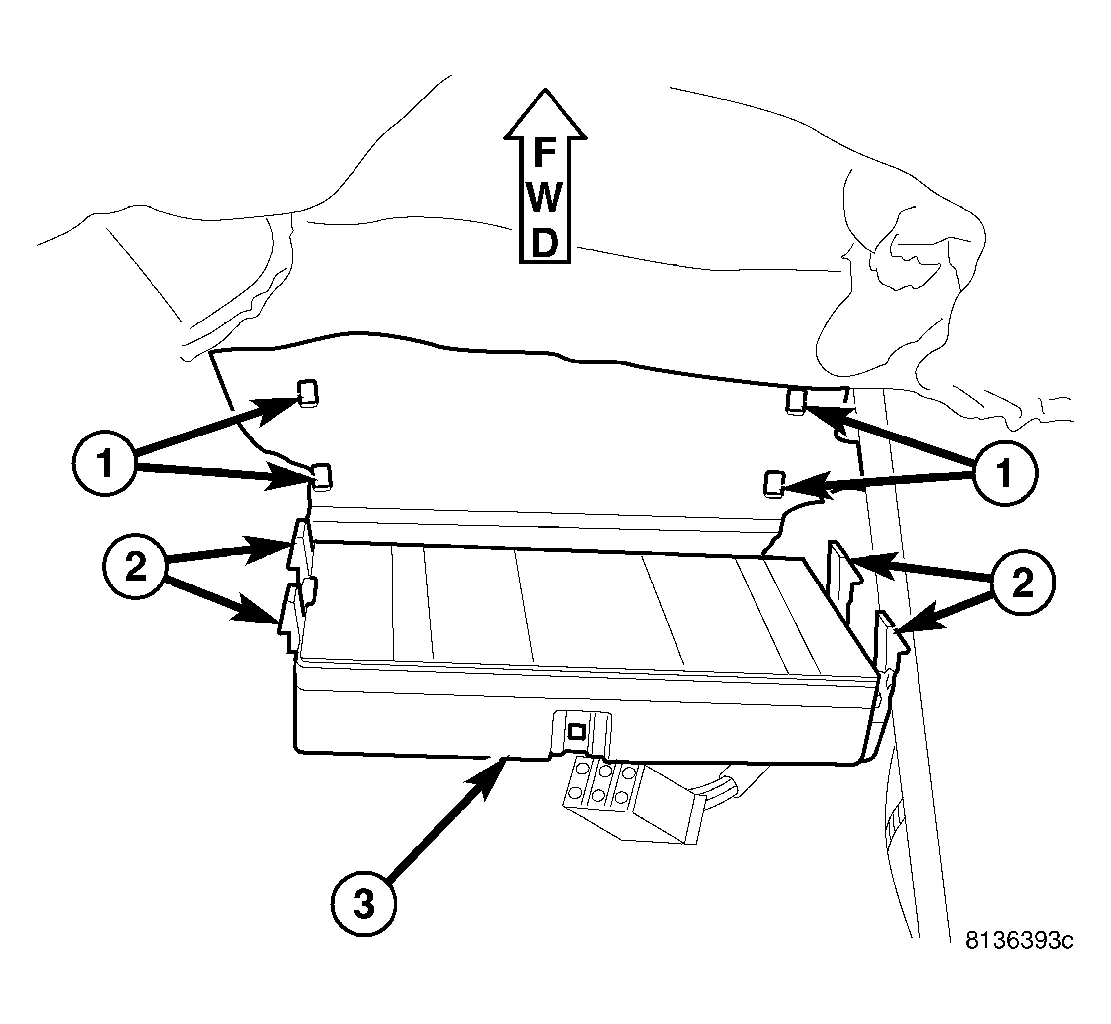

Fig 1: Heated Seat Module
GC0015939Courtesy of DAIMLERCHRYSLER CORP.
  1. Install the heated seat module (3) in the vehicle.
  2. Position the retaining clips (2) with the retaining holes (1) in the floor cross member. Firmly apply even pressure to the module (3) until all four retaining clips (2) snap into place.

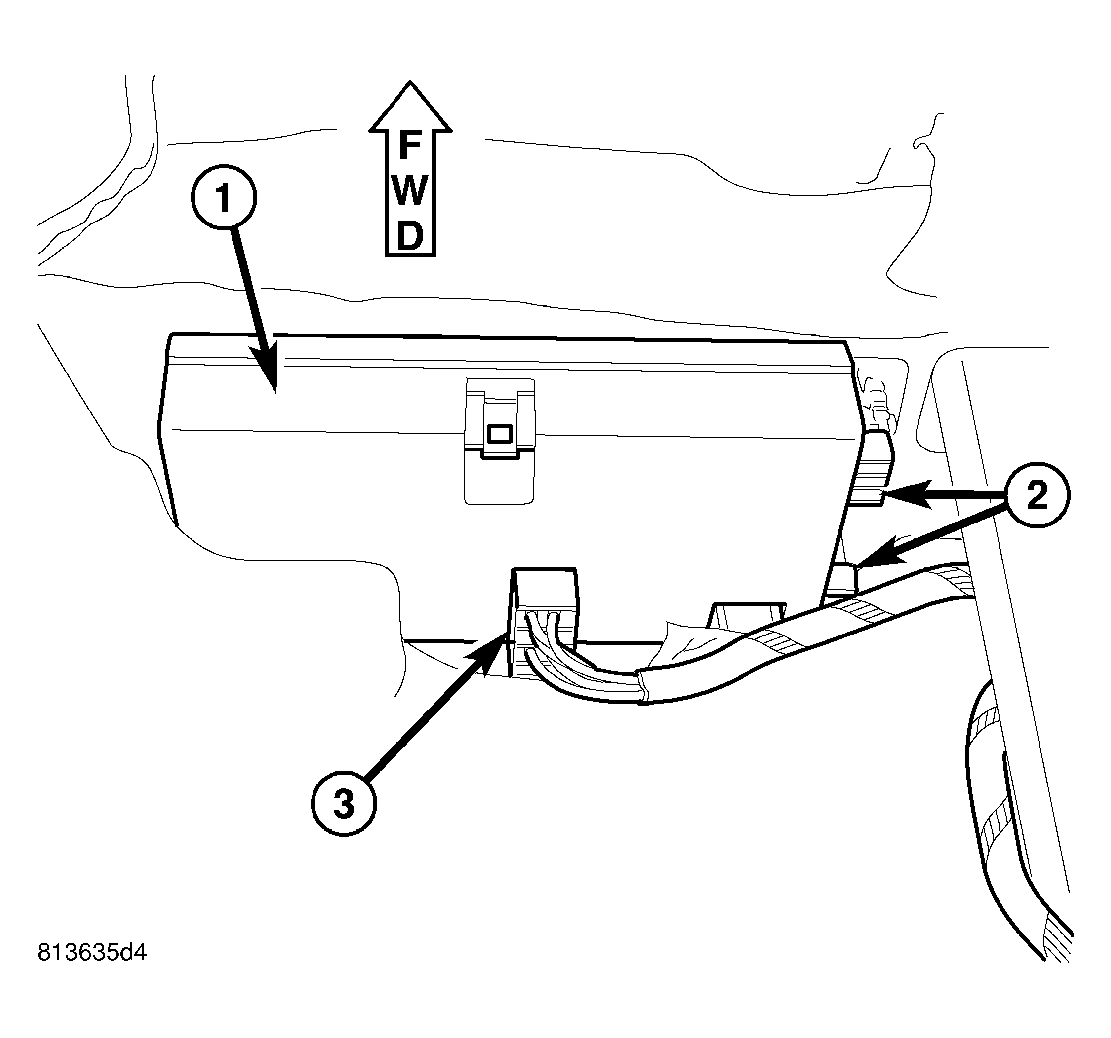

    Fig 2: Heated Seat Module
    GC0015938Courtesy of DAIMLERCHRYSLER CORP.
  3. Connect the wire harness connector (3) to the heated seat module (1).
  4. Reposition the front carpet assembly to the original position.
  5. Install the right, front seat, (Refer to BODY/SEATS/SEAT - INSTALLATION) .
  6. Connect the battery negative cable.
  7. Check for proper heated seat system operation.
