Check Strap: Installation

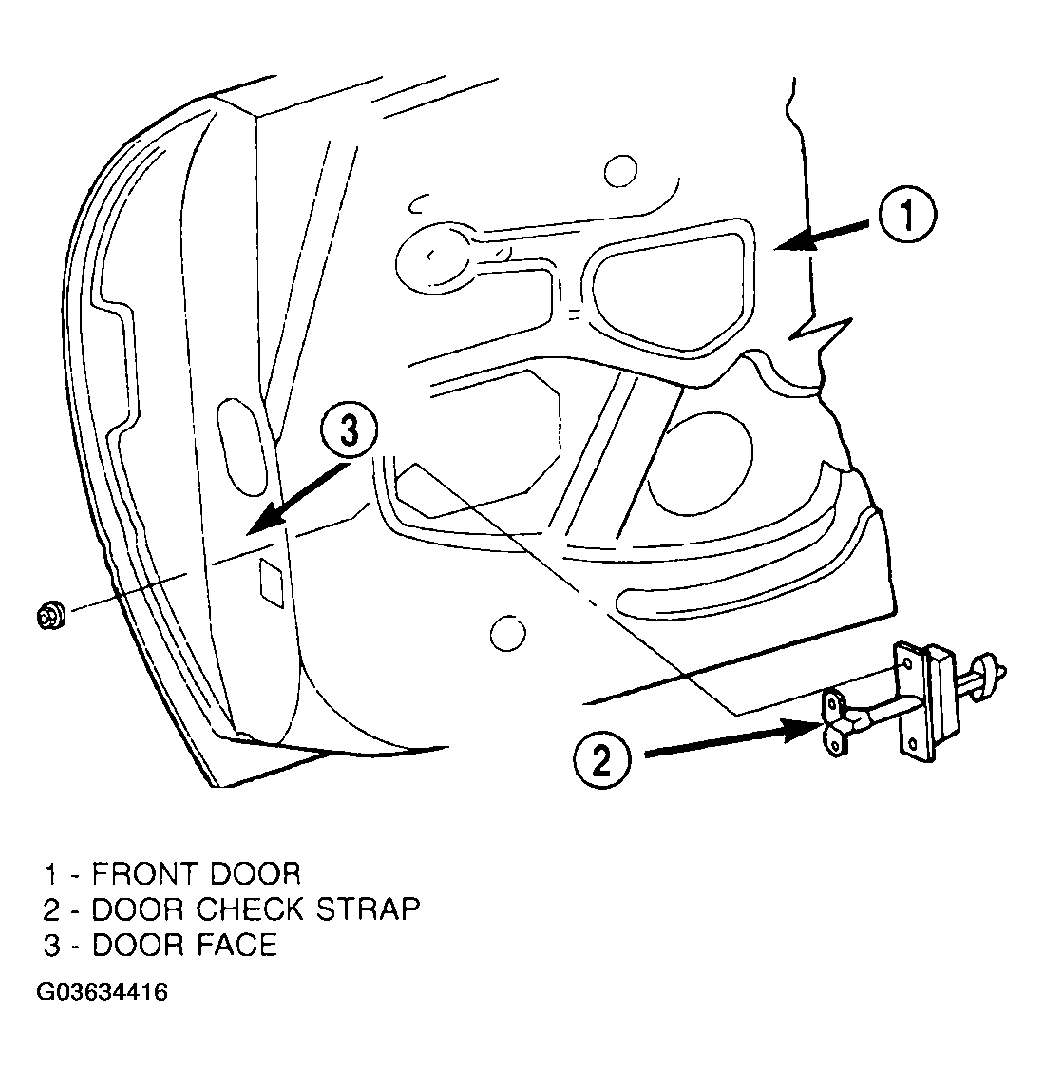

  1. Position door check strap on vehicle (Figure ).
  2. Install bolts attaching check strap to door end frame.
  3. Install bolts attaching check strap to lower A-pillar.
  4. Install water dam (Refer to WATERSHIELD  ).
  5. Install door trim panel (Refer to TRIM PANEL  ).
