Speed Control - Except Coupe: Servo: Installation

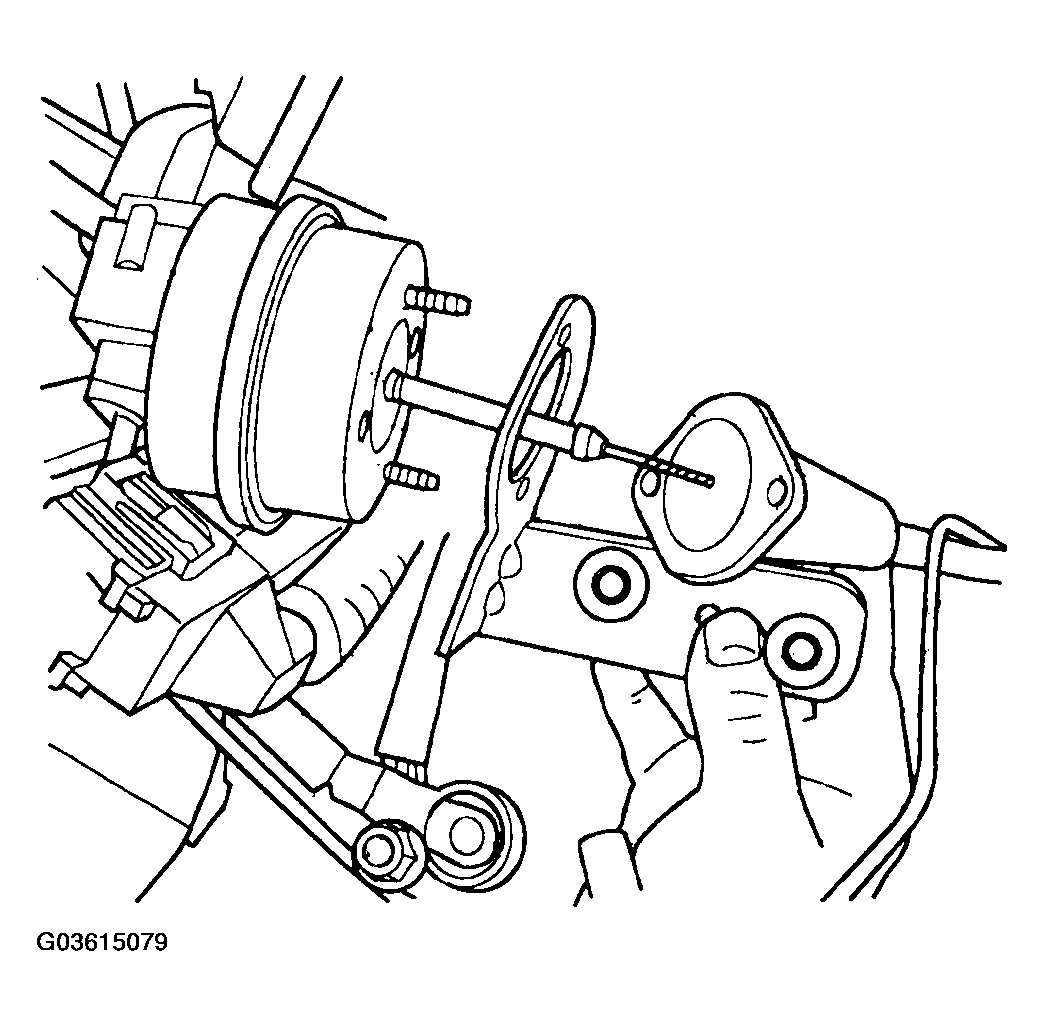

- With throttle in full open position feed cable sleeve through hole in bracket, then align hole in speed control cable sleeve with hole in servo pin and install retaining clip (Figure).
- Connect vacuum hose to servo.
- Connect electrical connector.
- Insert servo studs through holes in speed control cable and mounting bracket (Figure).
- Install nuts, tighten to 6.7 N.m (60 in. lbs.).
- Install servo and bracket to stud plate in shocktower and tighten nuts.

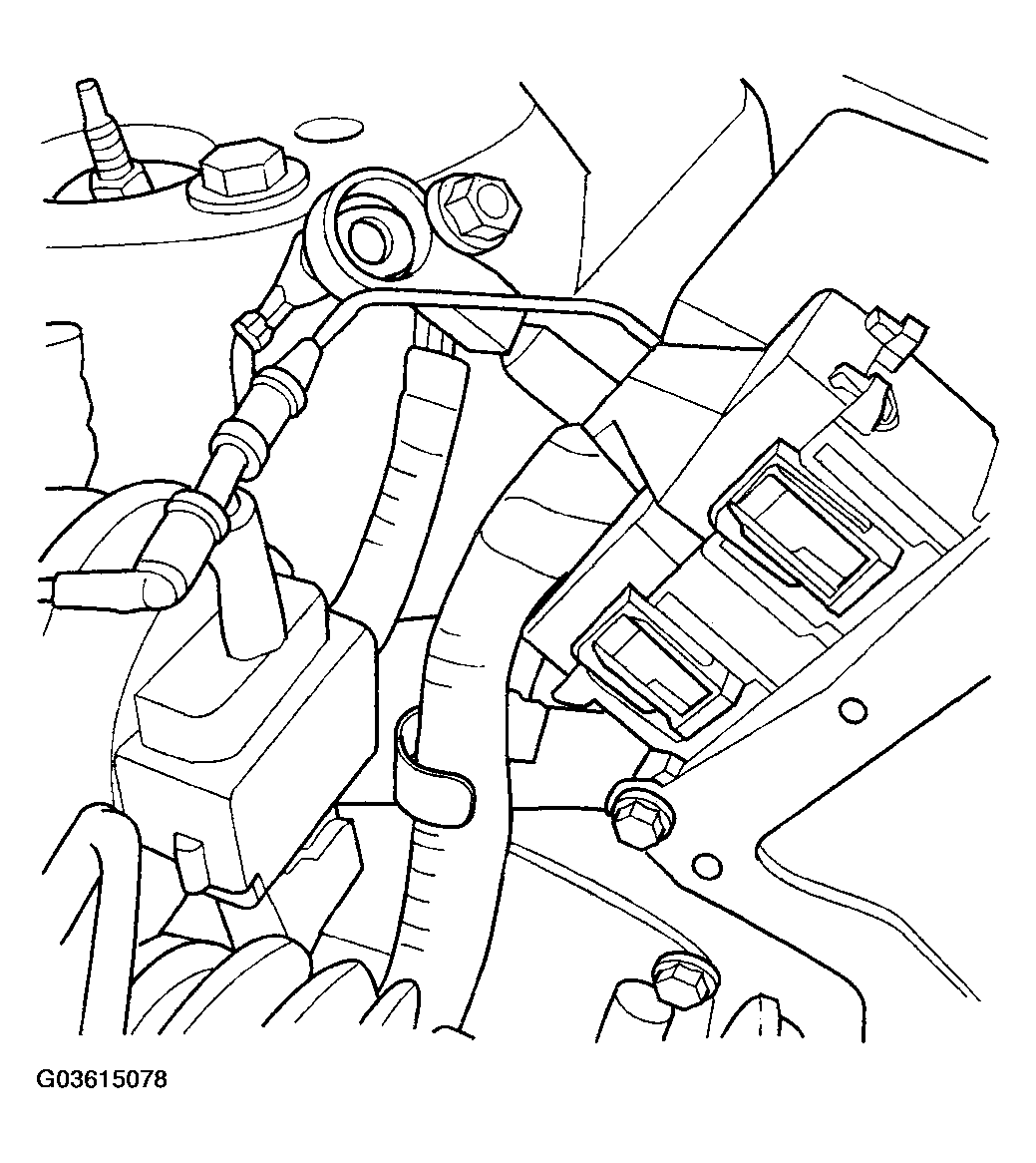

- Connect negative battery cable (Figure).
