Engine Coolant Temperature Gauge Inoperative or Inaccurate

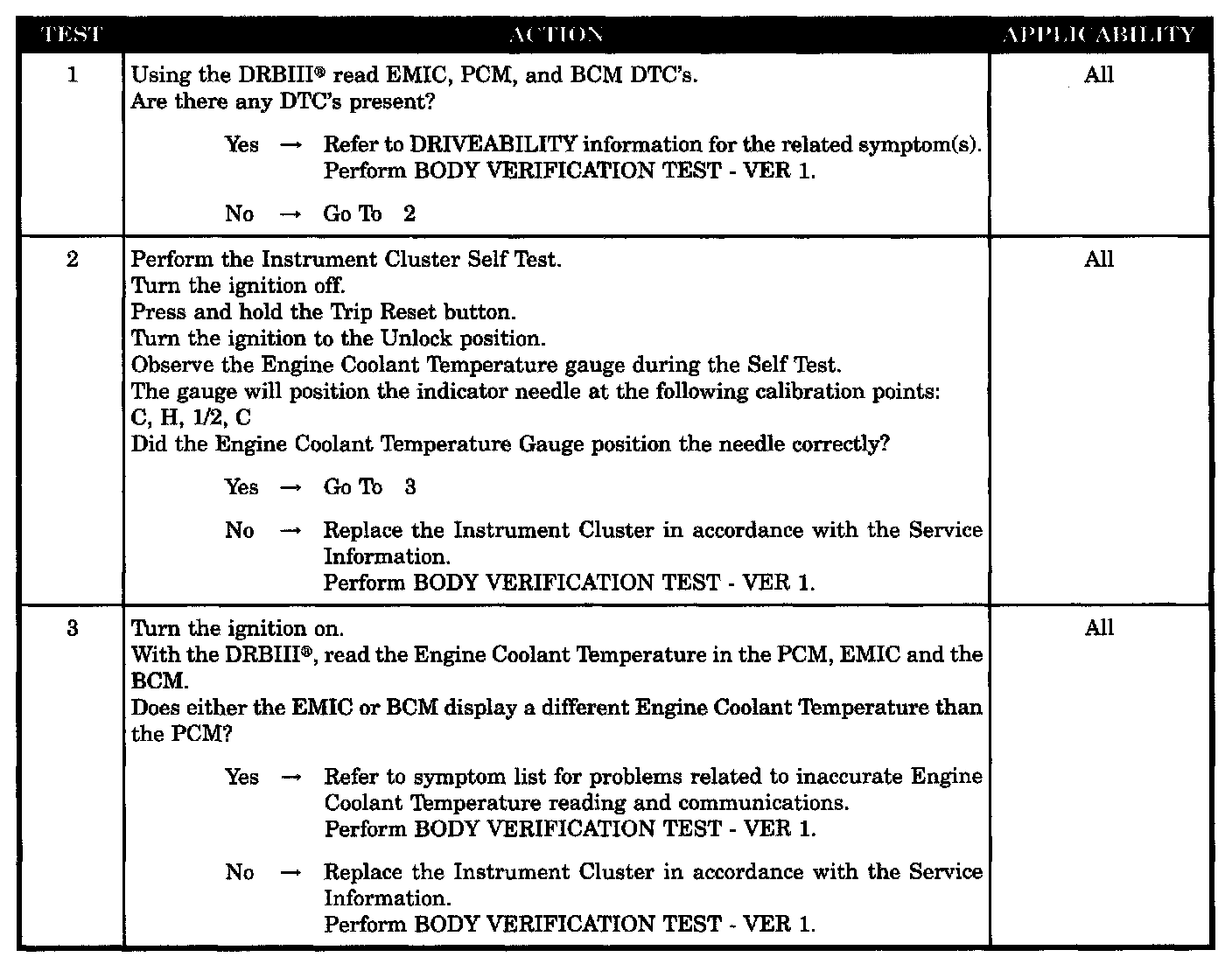

Test 1 - 3:






SYMPTOM
ENGINE COOLANT TEMPERATURE GAUGE INOPERATIVE OR INACCURATE

POSSIBLE CAUSES
- DTC present
- Engine coolant temperature bus message
- Instrument cluster
