Decklid Ajar Circuit Open

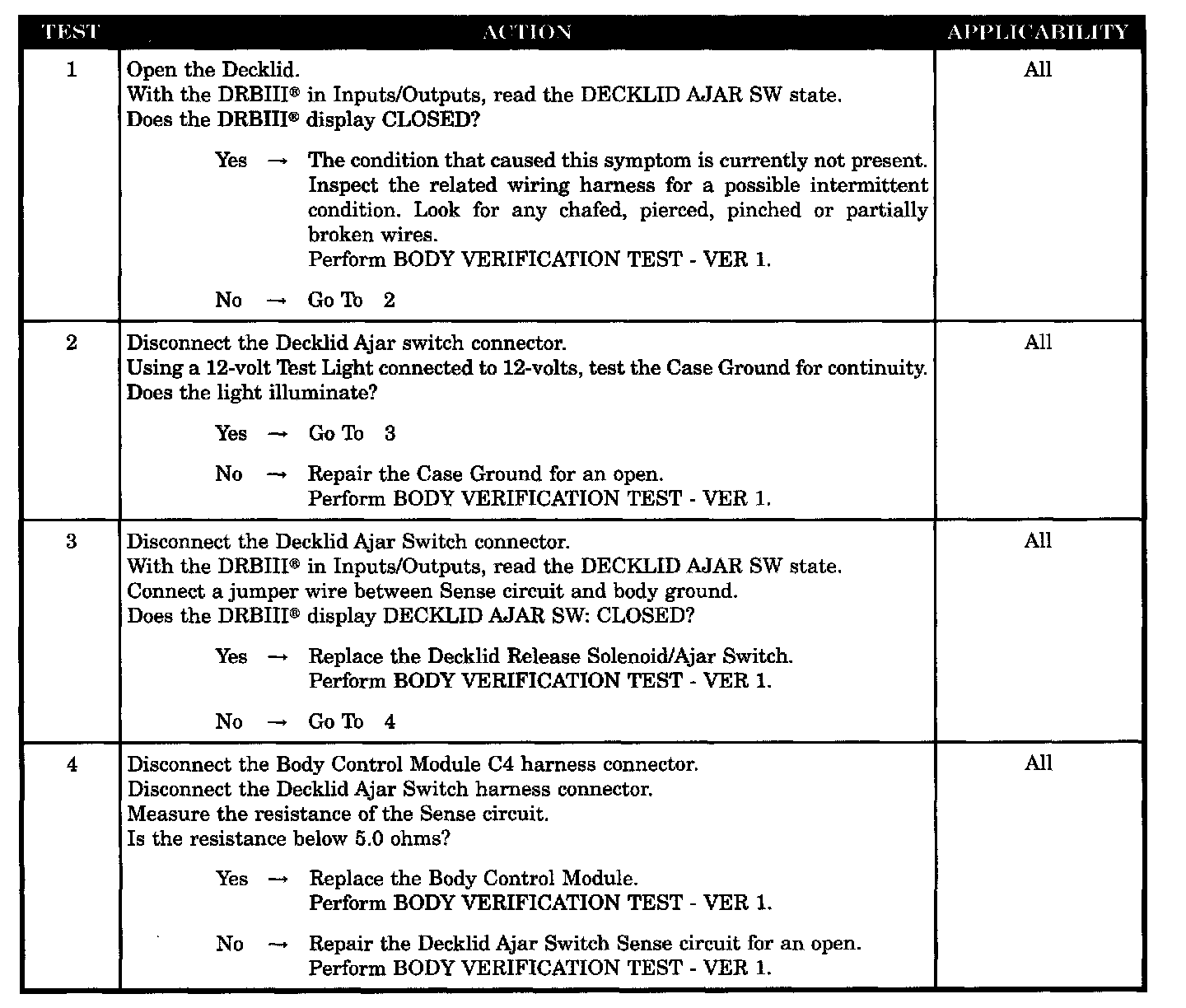

Test 1 - 4:






SYMPTOM
DECKLID AJAR CIRCUIT OPEN

POSSIBLE CAUSES
- Decklid release solenoid/ajar switch case ground open
- Intermittent condition
- Decklid release solenoid/ajar switch
- Decklid ajar switch sense circuit open
- Body control module internal malfunction
