A/C Compressor Mounting Bracket Replacement

REMOVAL
1. Remove A/C compressor from mounting bracket and support the compressor.

NOTE: It is not necessary to remove compressor from vehicle to remove bracket from engine.

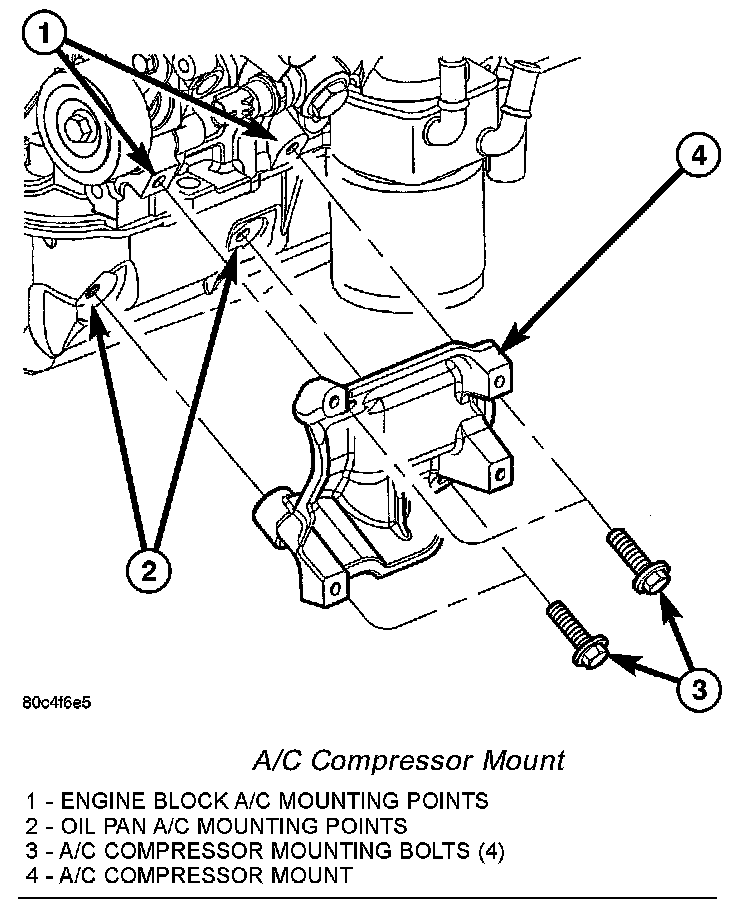

A/C Compressor Mount:

2. Remove four mounting bolts from A/C compressor mount. Two from engine block and two from oil pan.
3. Remove A/C compressor mount from the engine.

INSTALLATION
1. Install the A/C compressor mount to the engine block.
2. Install the four mounting bolts to the A/C compressor mount. Two to the engine block and two to the oil pan. Torque the bolts to 115 Nm (85 ft. lbs.).
3. Install the A/C compressor to the mounting bracket.
