Connector Locations

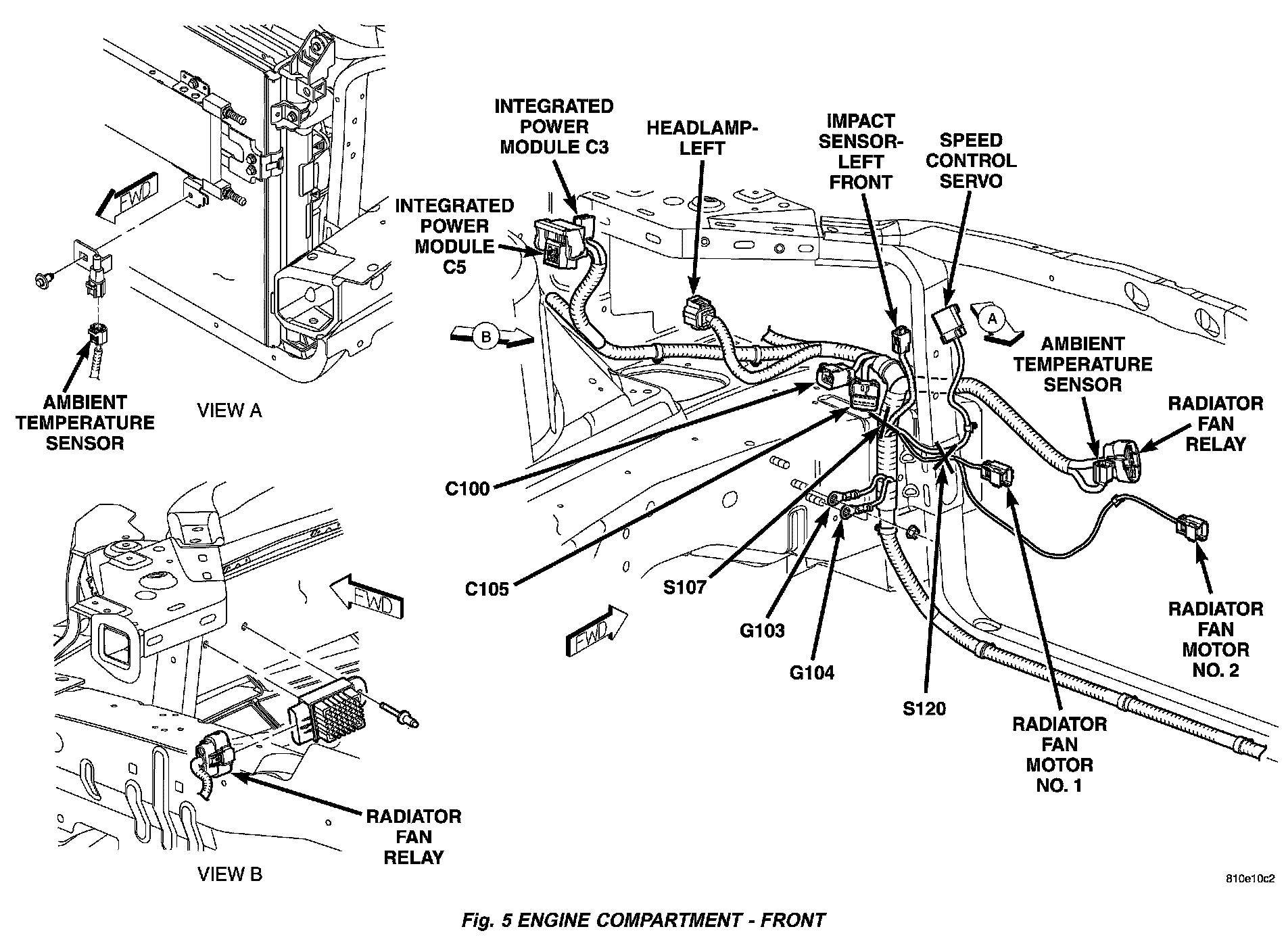

Engine Compartment - Front:

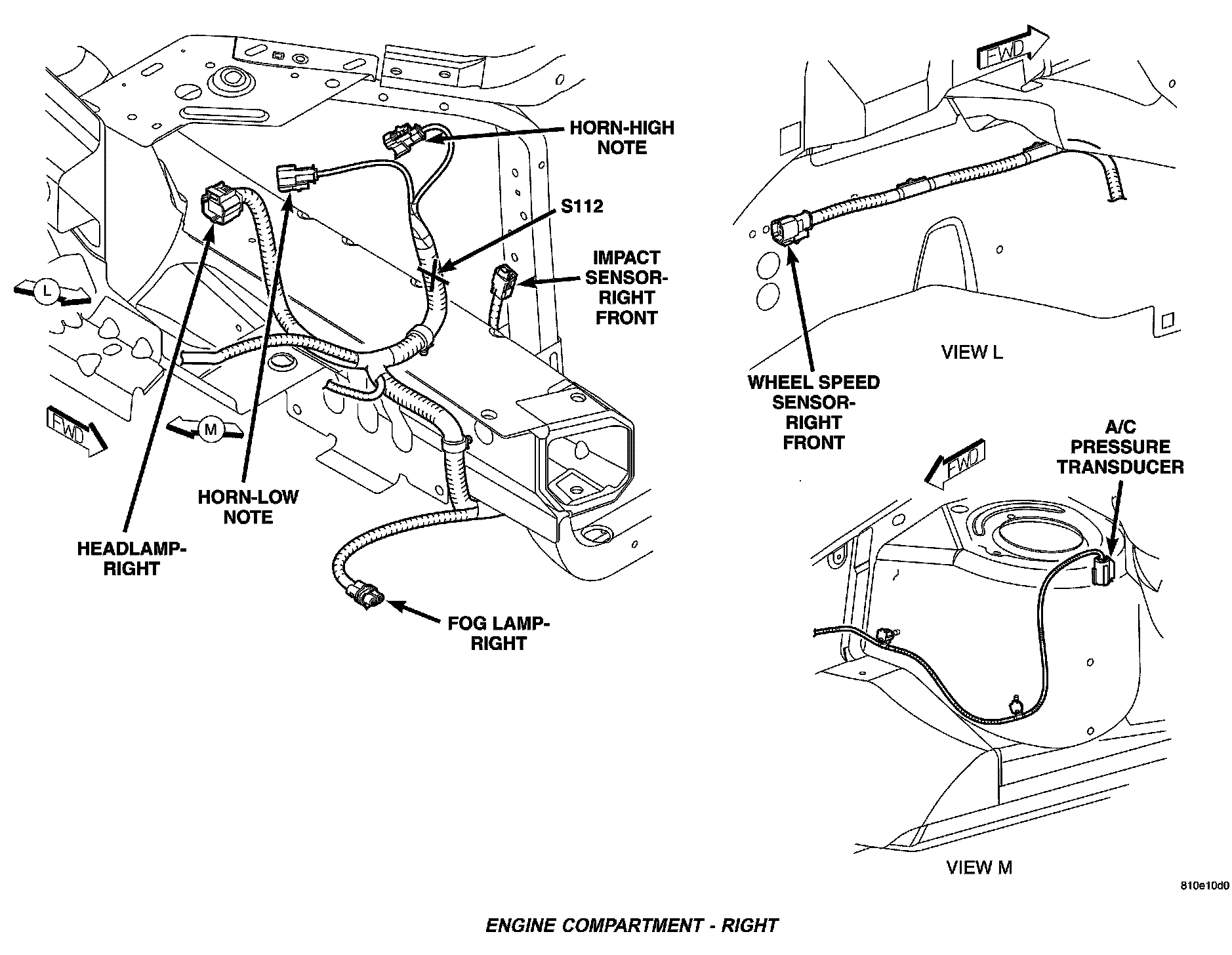

Engine Compartment - Right:

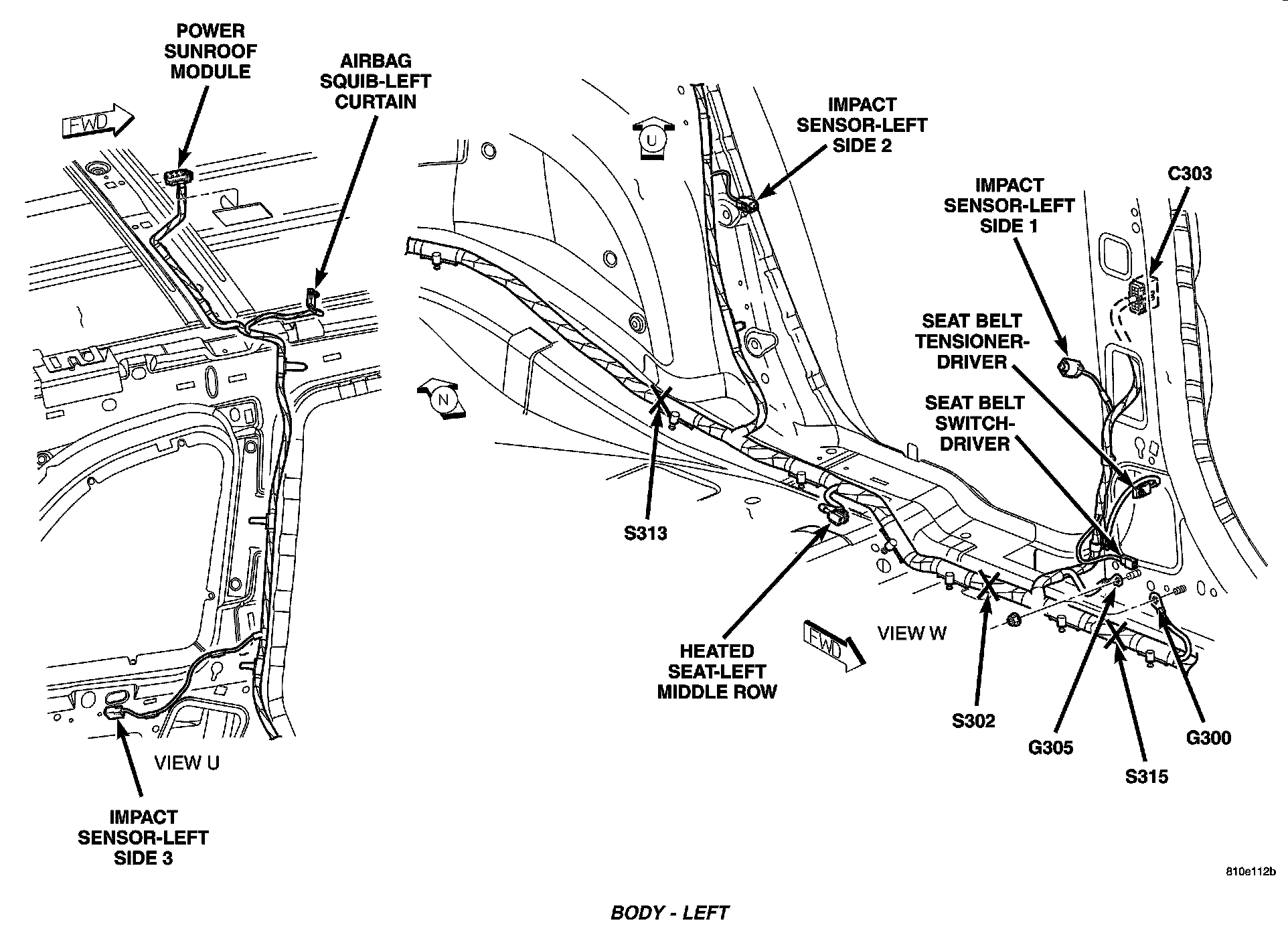

Body - Left:

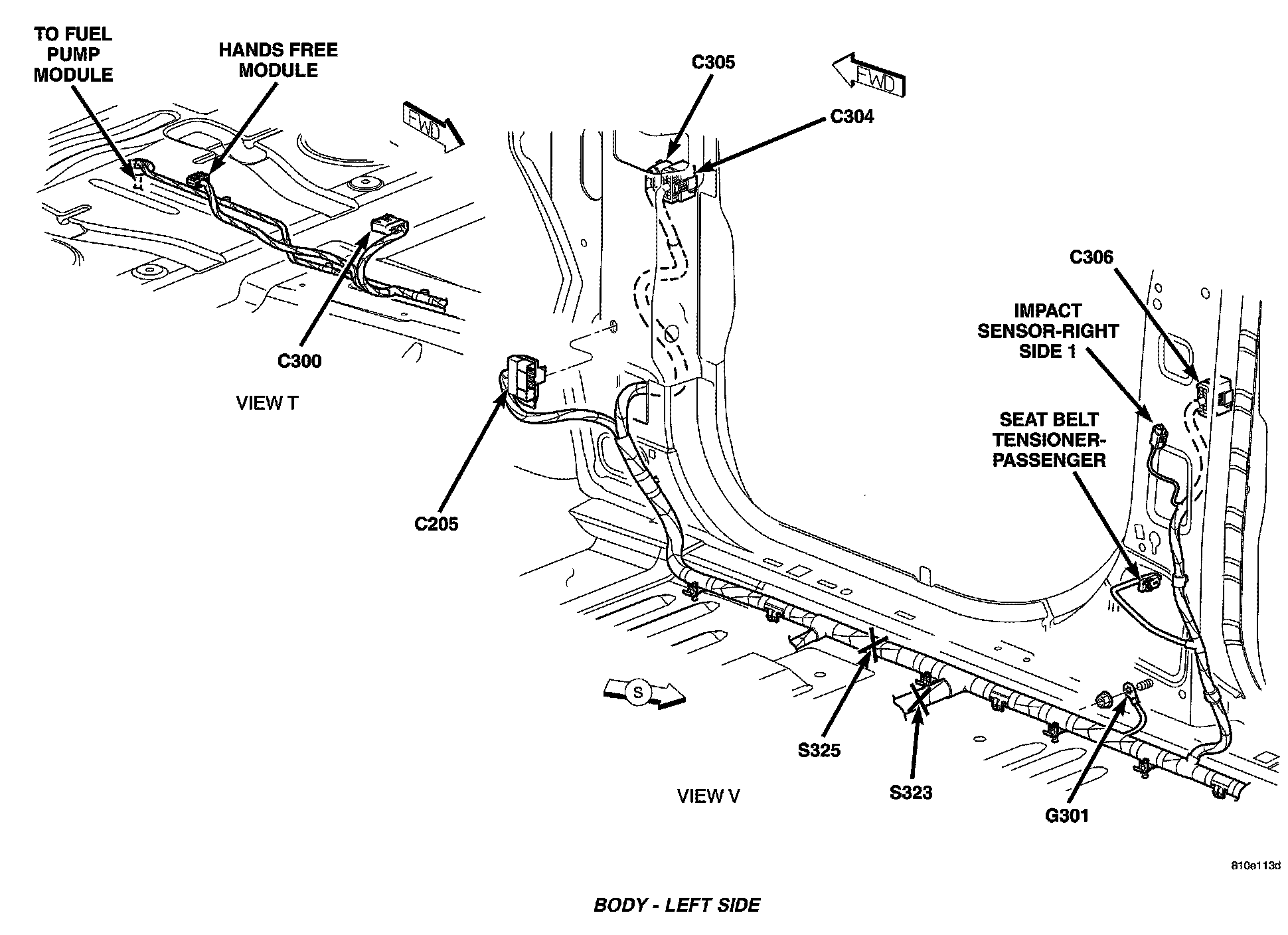

Body - Left Side:

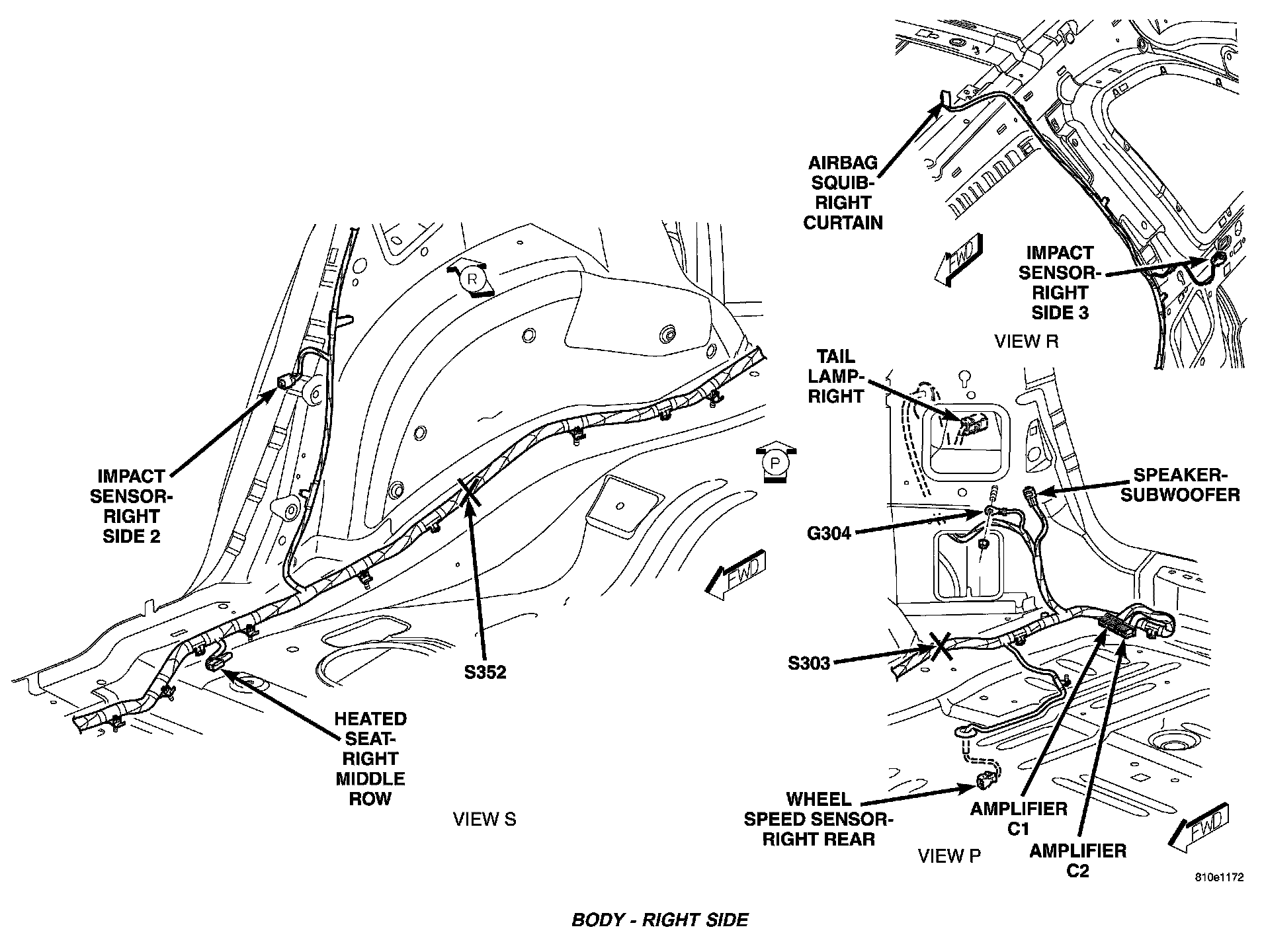

Body - Right Side:
