Diagnostic Procedure

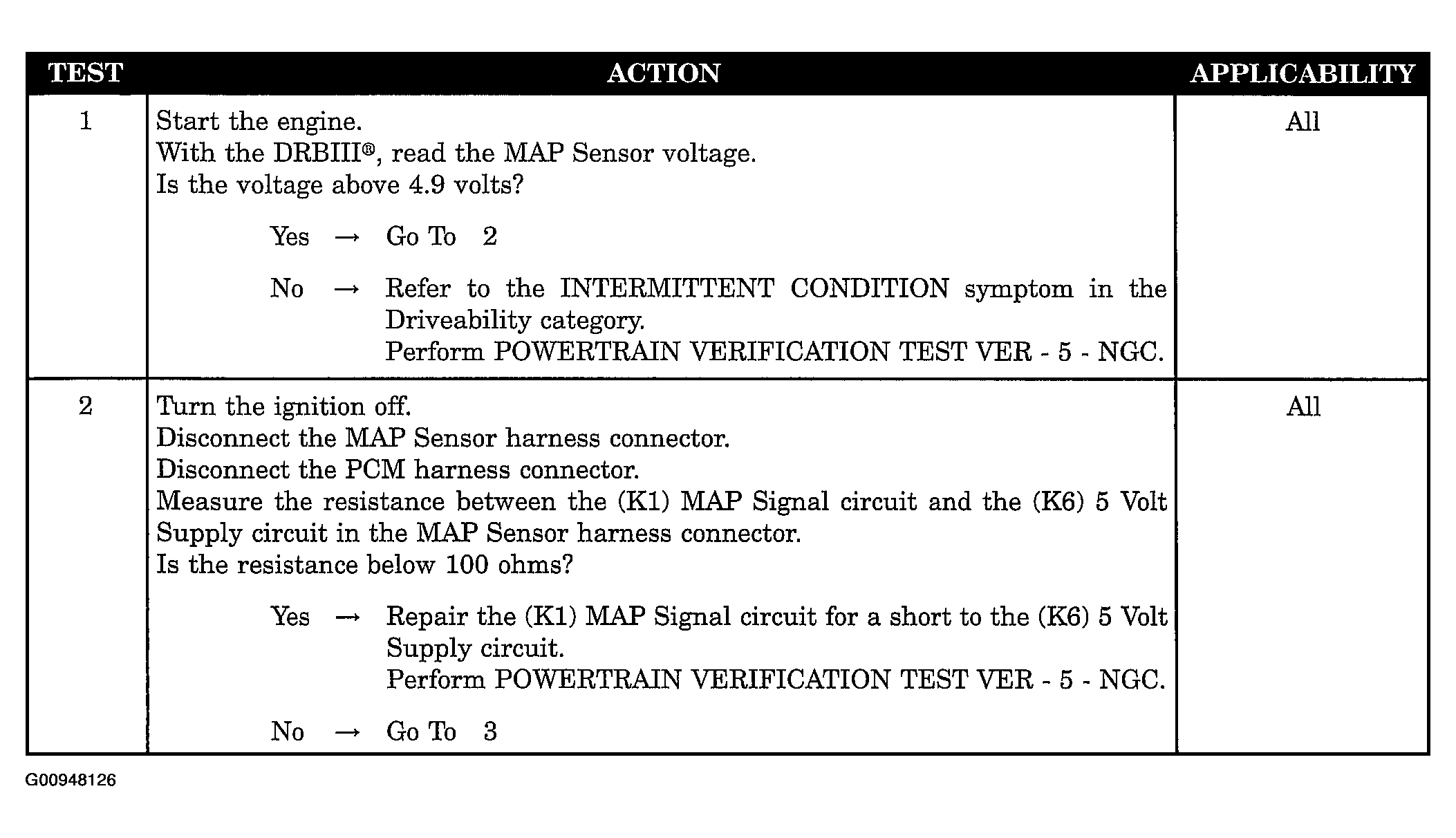

Fig 1: Diagnostic Chart - Map Sensor High (1 Of 3)
G00948126Courtesy of DAIMLERCHRYSLER CORP.

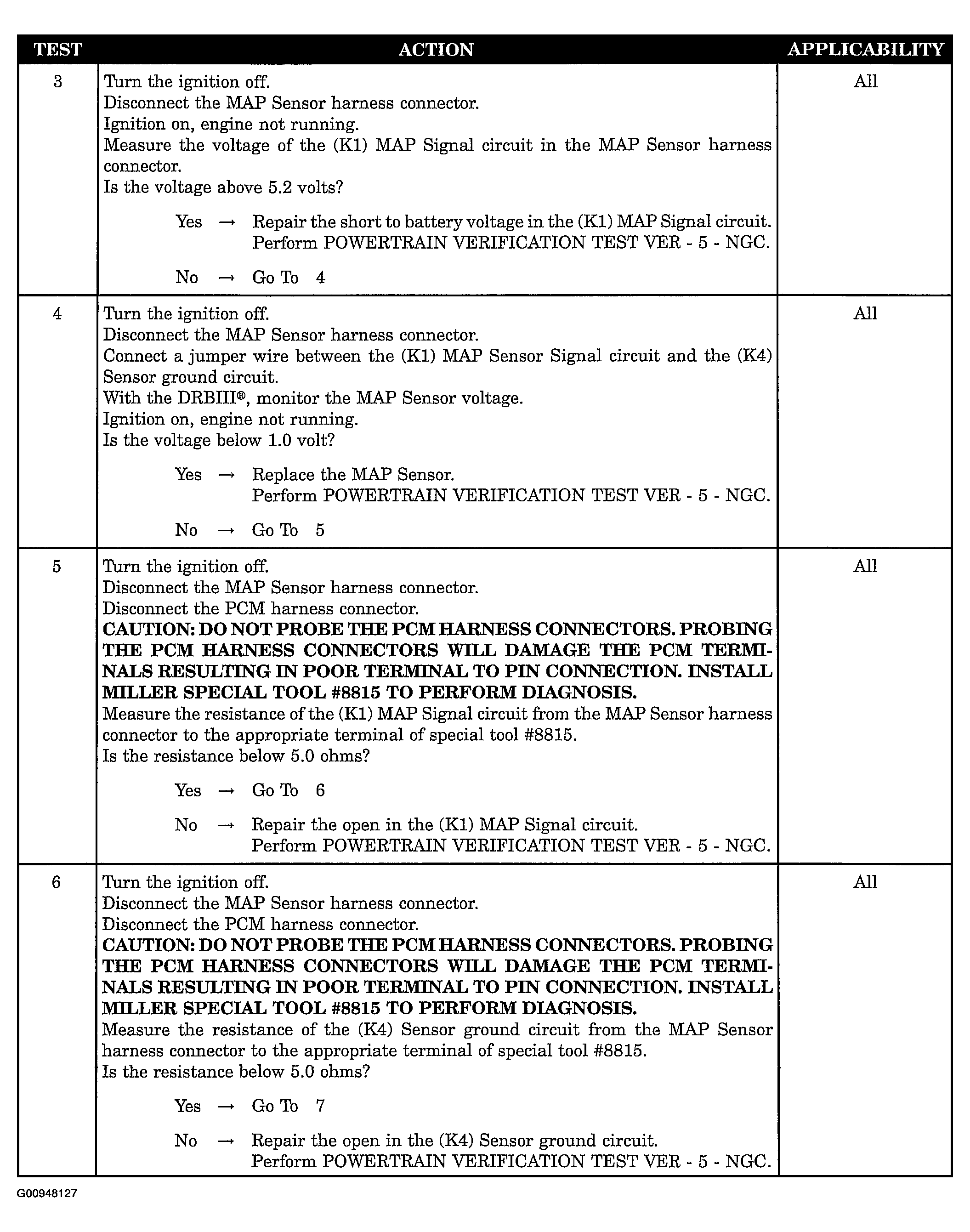

Fig 2: Diagnostic Chart - Map Sensor High (2 Of 3)
G00948127Courtesy of DAIMLERCHRYSLER CORP.

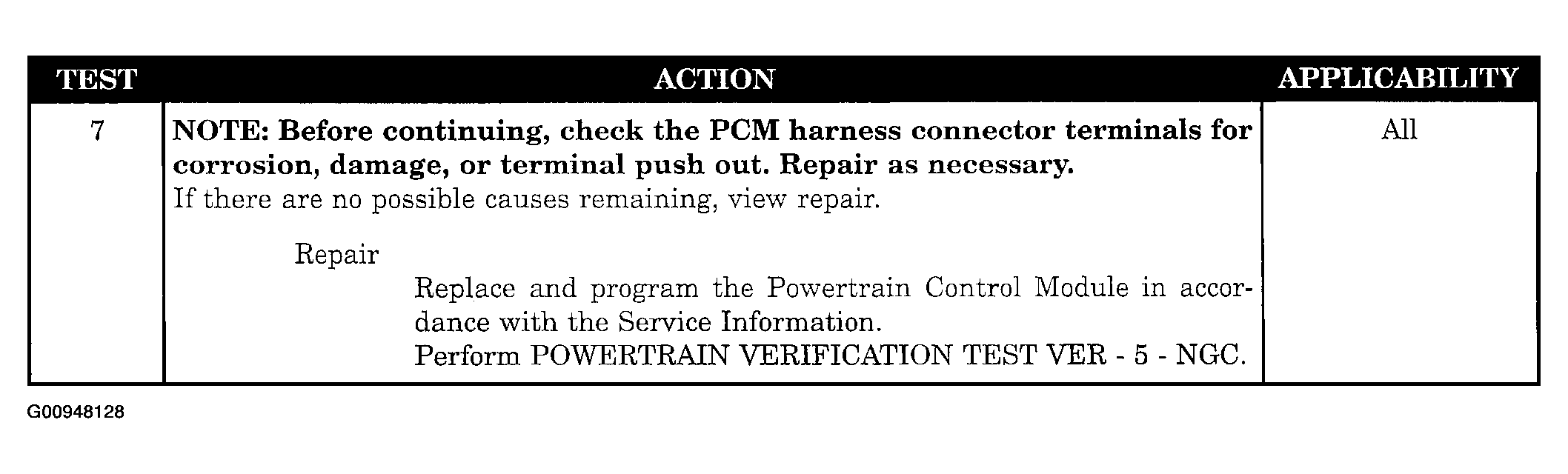

Fig 3: Diagnostic Chart - Map Sensor High (3 Of 3)
G00948128Courtesy of DAIMLERCHRYSLER CORP.
