Speed Sensor - Output: Removal

Disconnect battery negative cable.
Raise vehicle on hoist.
Disconnect output speed sensor connector (Fig 1).

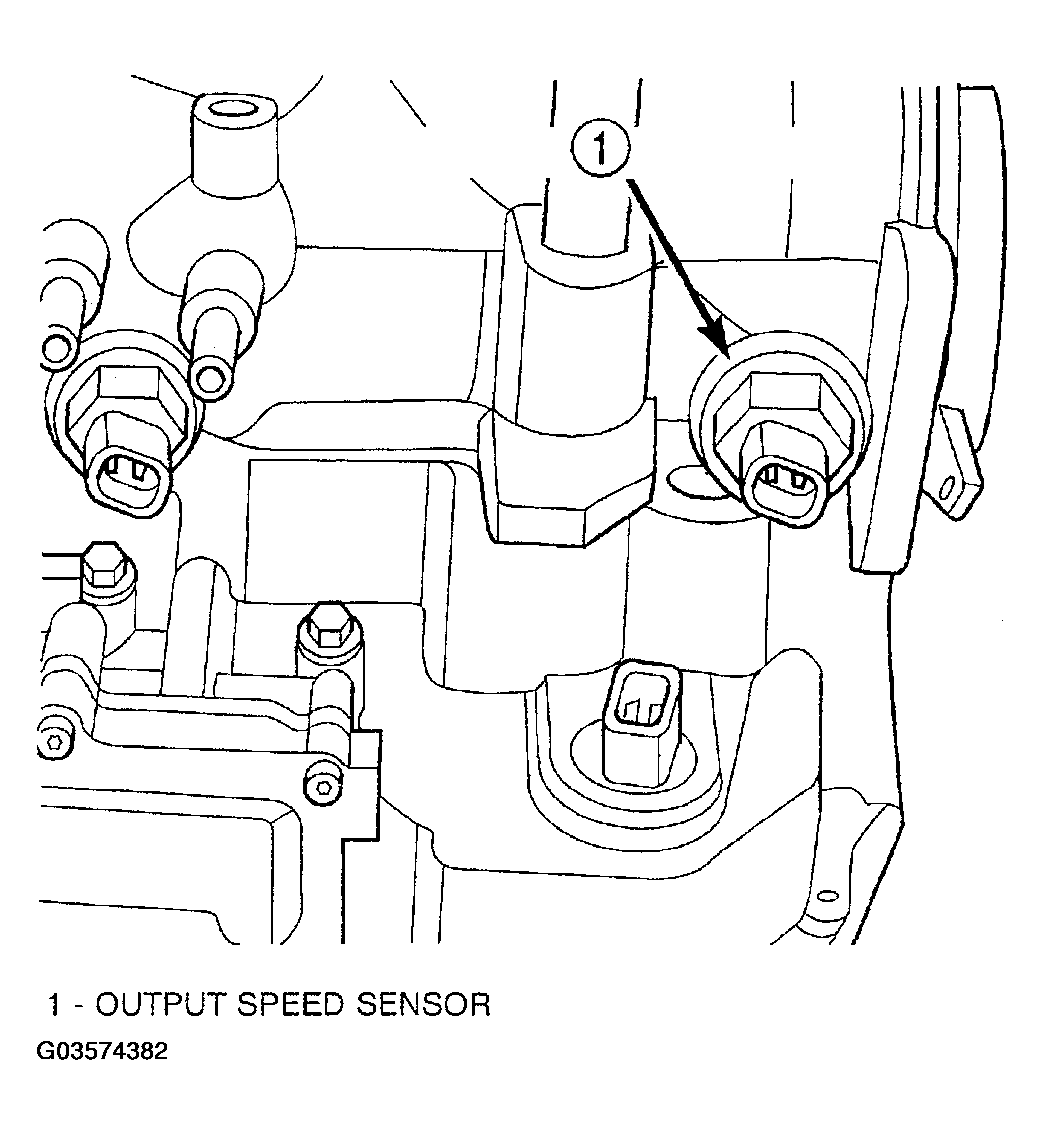

Fig 1: Disconnecting Output Speed Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
Unscrew and remove output speed sensor (Fig 2).
Inspect speed sensor o-ring (Fig 3) and replace if necessary.

Fig 2: Removing Output Speed Sensor
Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Identifying O-Ring Location
Courtesy of DAIMLERCHRYSLER CORP.
