Integrated Power Module C9 - Blue 26 Way Connector End View

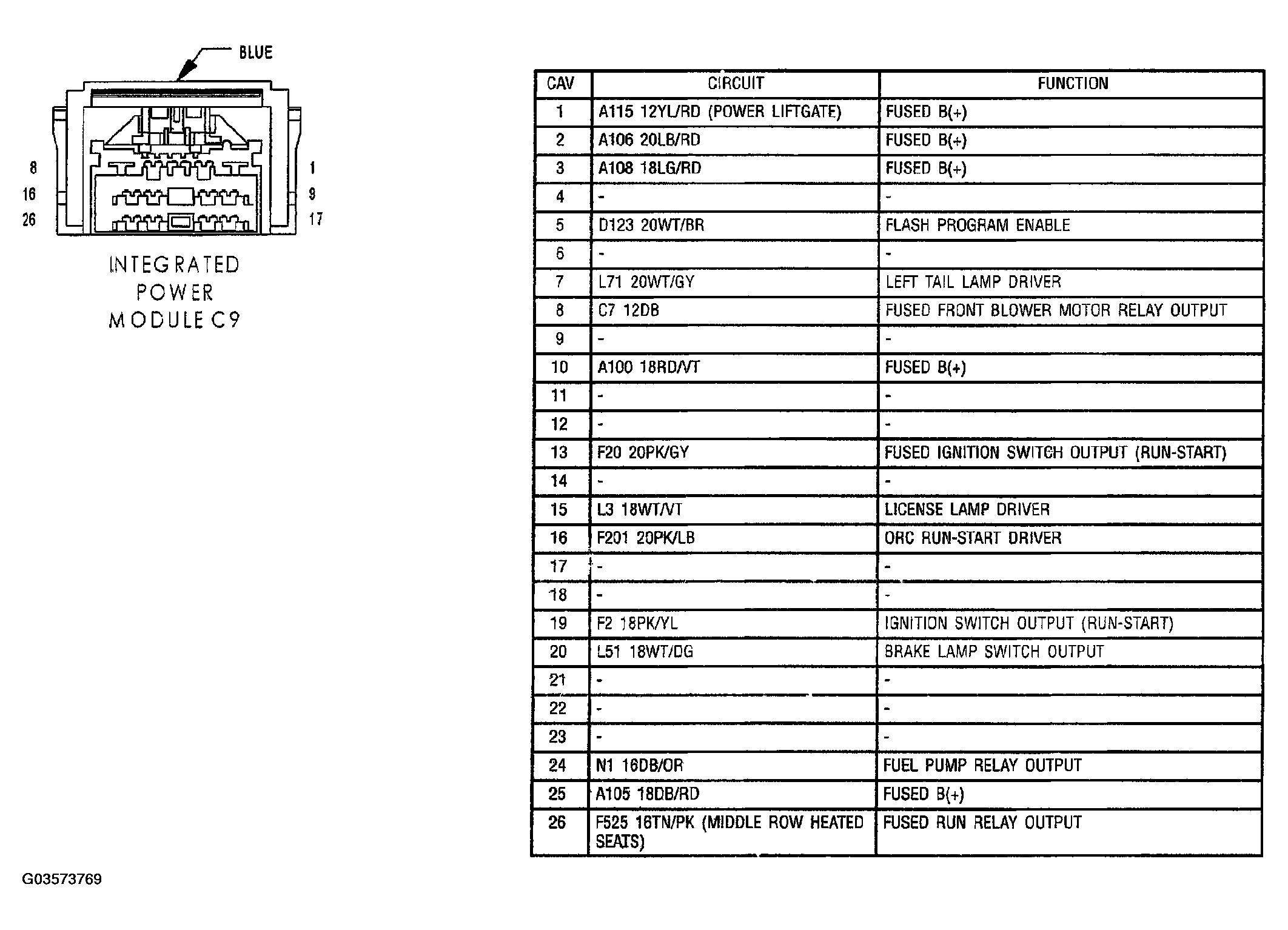

Fig 1: Integrated Power Module Connector End View (C9)
G03573769Courtesy of DAIMLERCHRYSLER CORP.
