Integrated Power Module C8 - White 15 Way Connector End View

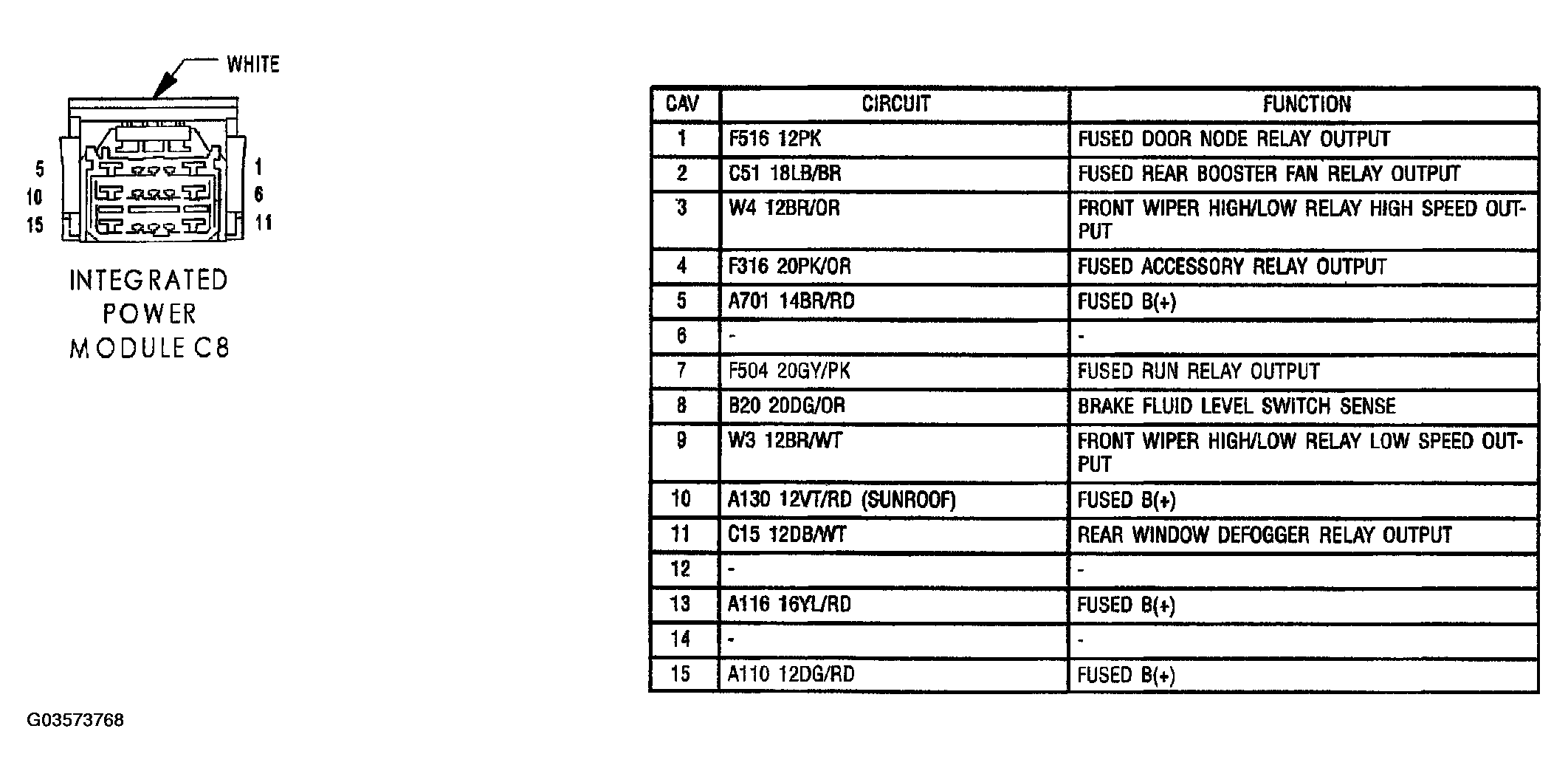

Fig 1: Integrated Power Module Connector End View (C8)
Courtesy of DAIMLERCHRYSLER CORP.
