Navigation Module - Black 16 Way

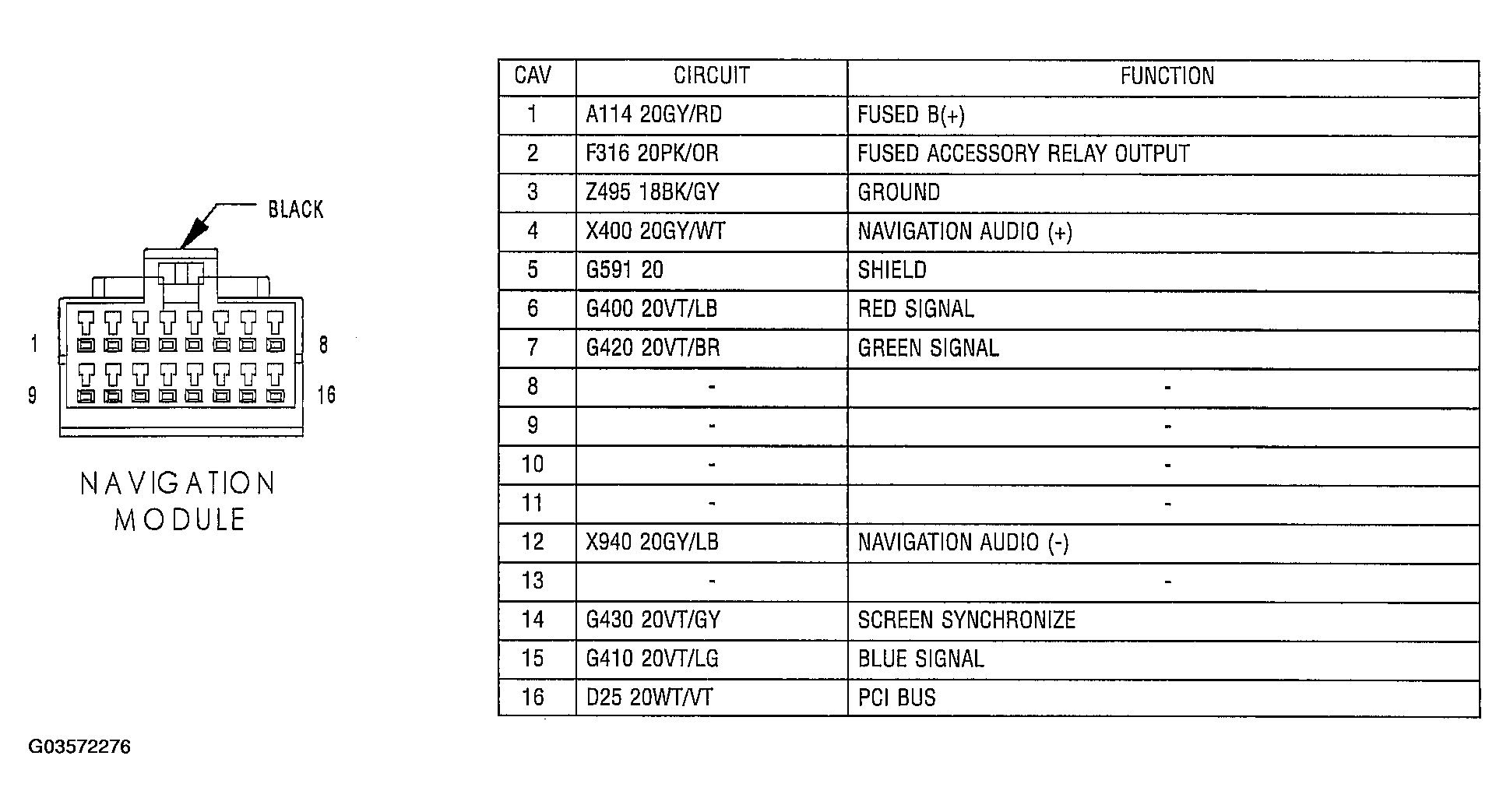

Fig 1: Identifying Navigation Module Connector Terminals And Specification (Black 16 Way)
G03572276Courtesy of DAIMLERCHRYSLER CORP.
