Integrated Power Module CB - Gray 12 Way

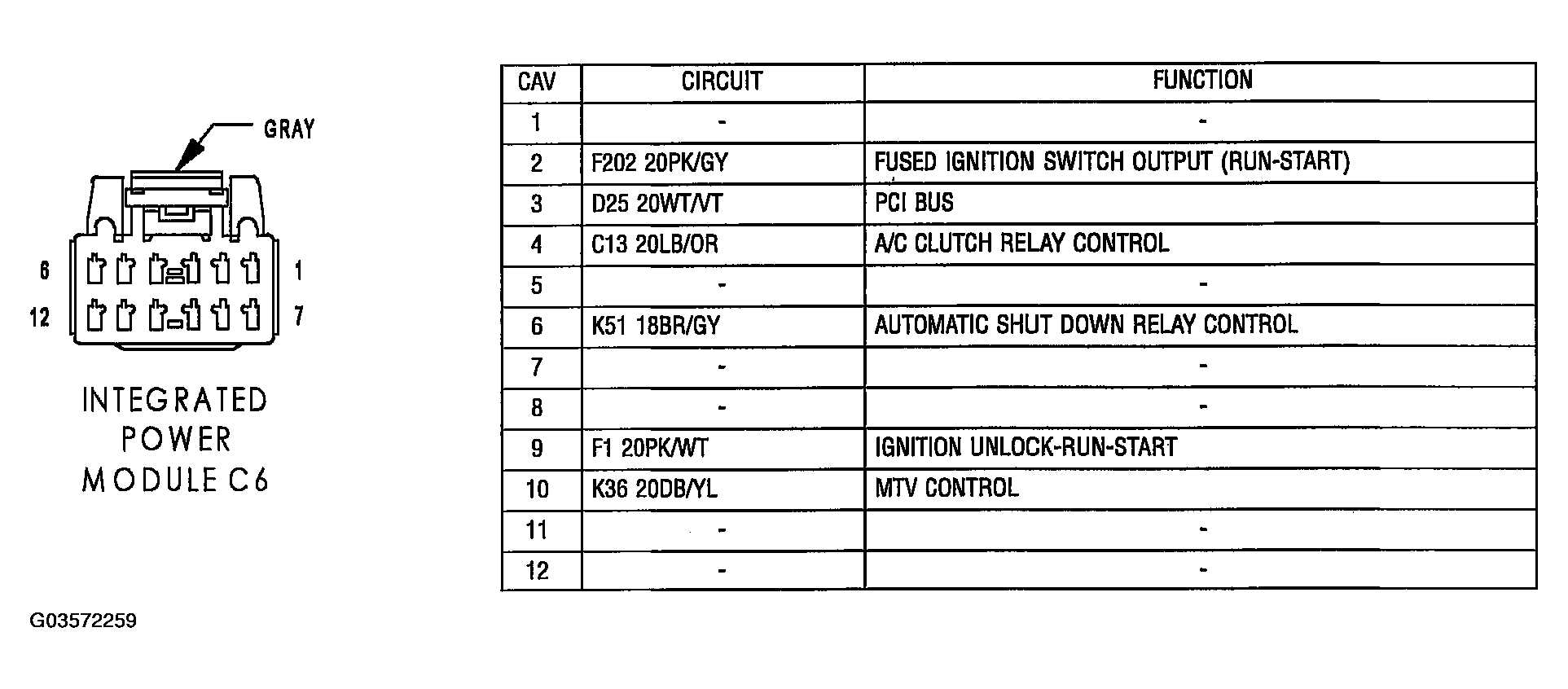

Fig 1: Identifying Integrated Power Module C6 Connector Terminals And Specification (Gray 12 Way)
G03572259Courtesy of DAIMLERCHRYSLER CORP.
