Horn Fails to Sound When Alarm Is Tripped

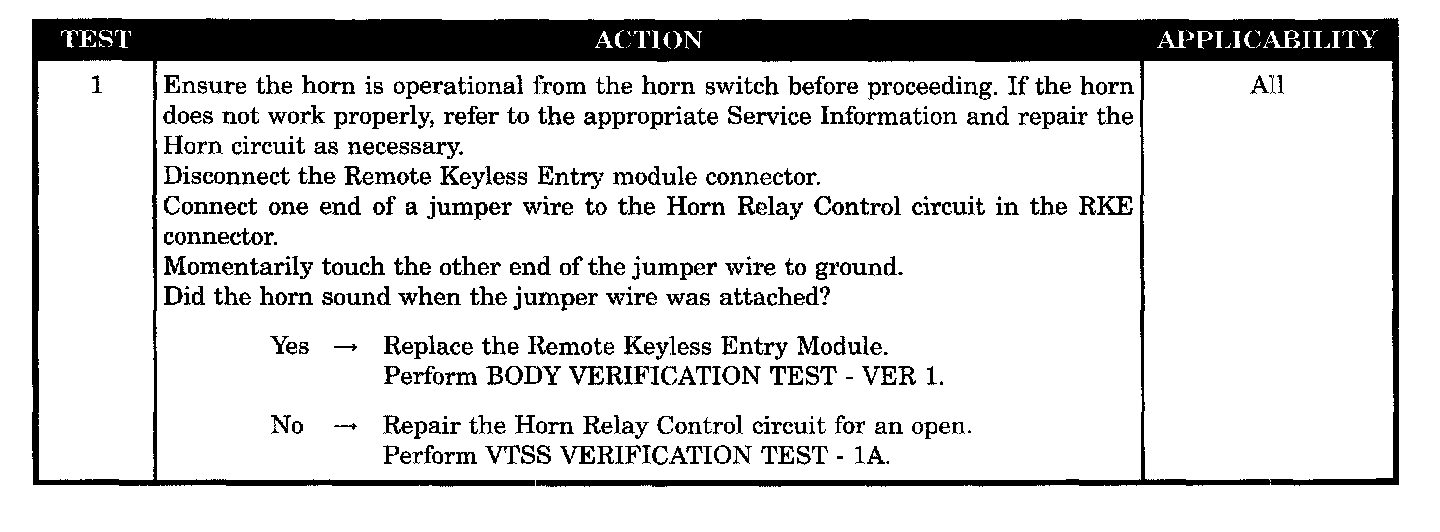

Test 1:






SYMPTOM
HORN FAILS TO SOUND DURING ALARM

POSSIBLE CAUSES
- Horn relay control circuit open
- Remote keyless entry module
