Hands Free Module C1 Connector End View

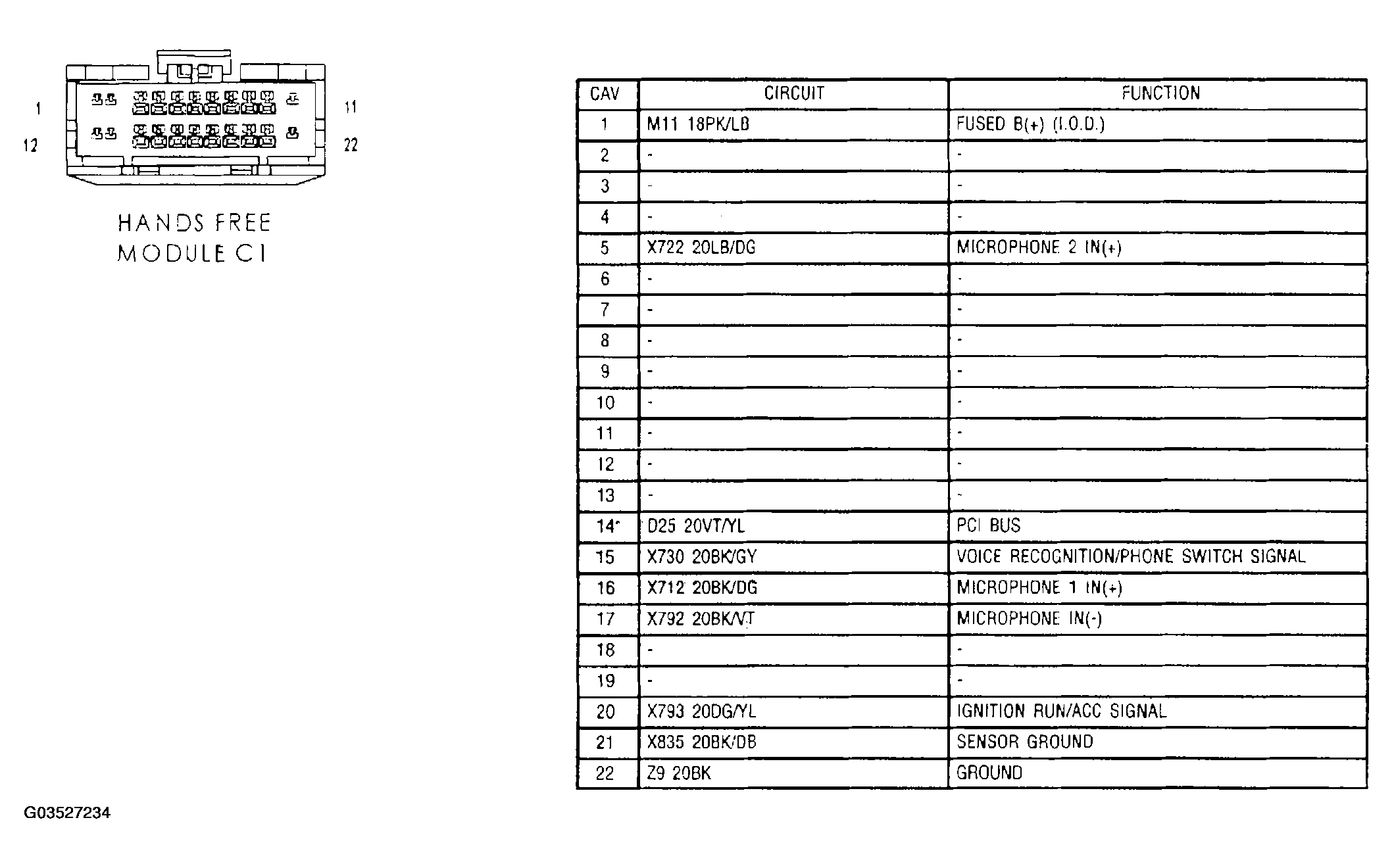

Fig 1: Hands Free Module Connector End View (C1)
G03527234Courtesy of DAIMLERCHRYSLER CORP.
