NVLD Assembly Internal Schematic

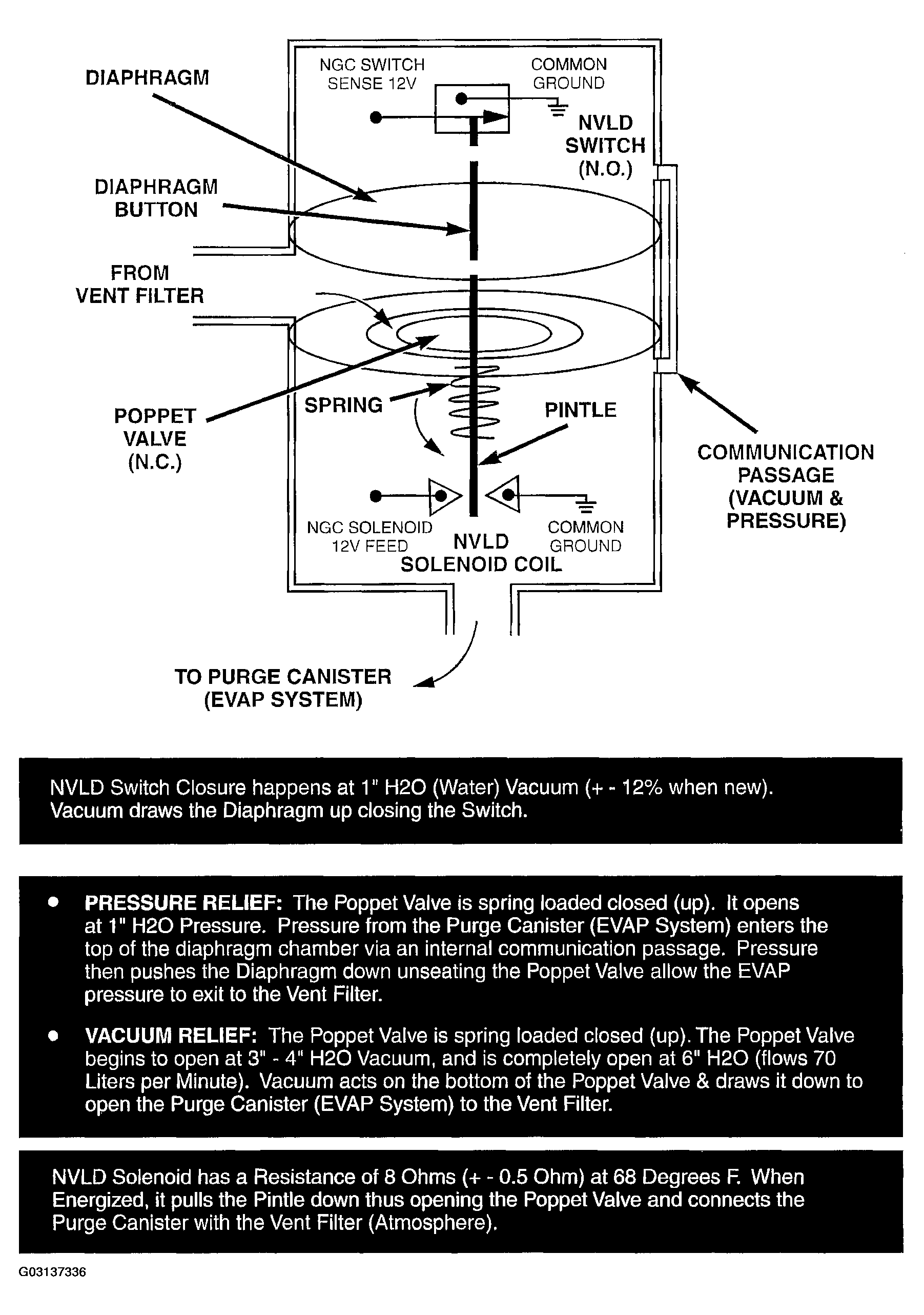

Fig 1: NVLD Assembly Internal Schematic
G03137336Courtesy of DAIMLERCHRYSLER CORP.
