*Engine Cranks Does Not Start: Testing

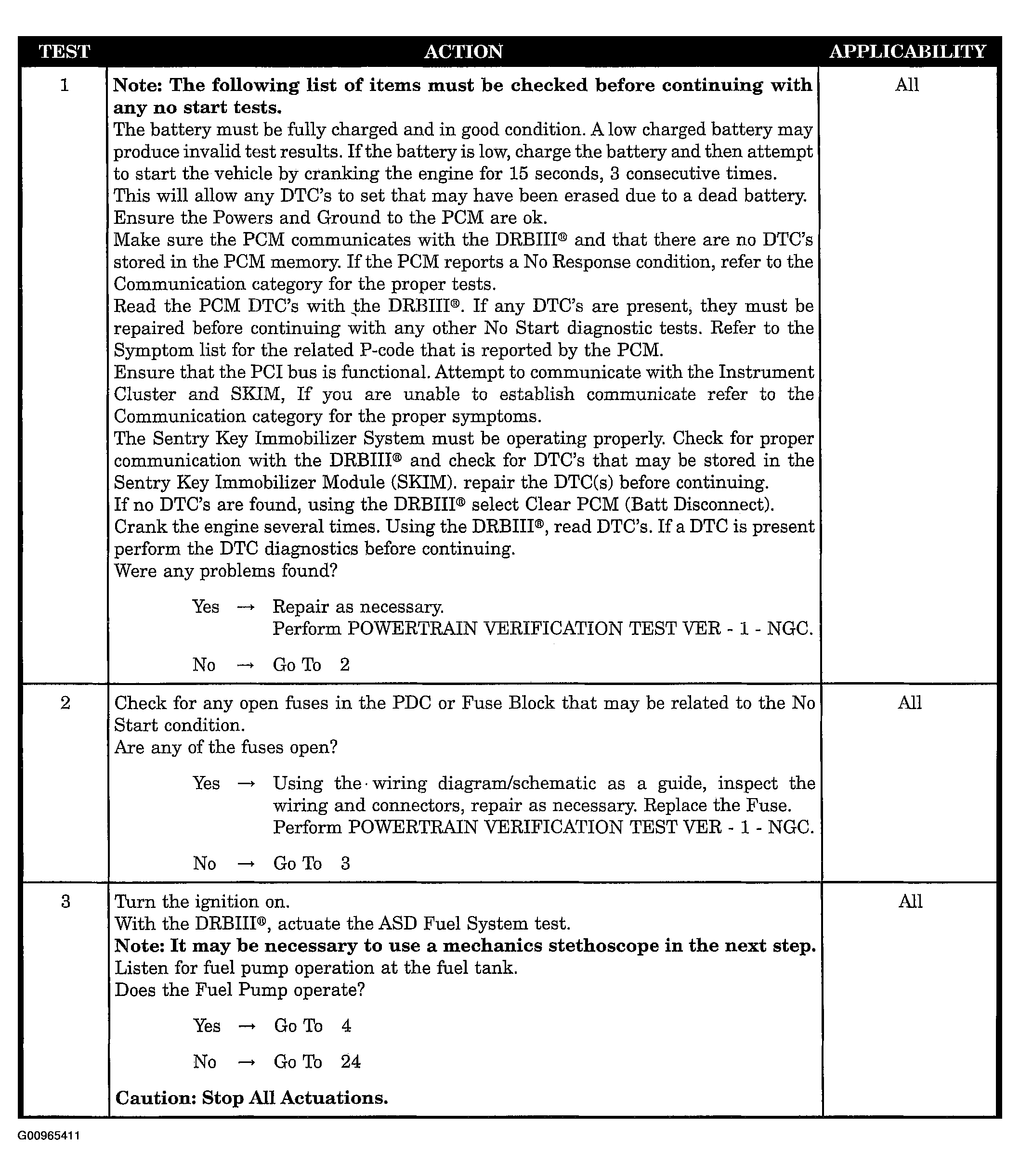

Fig 1: Testing: Engine Cranks Does Not Start (1 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

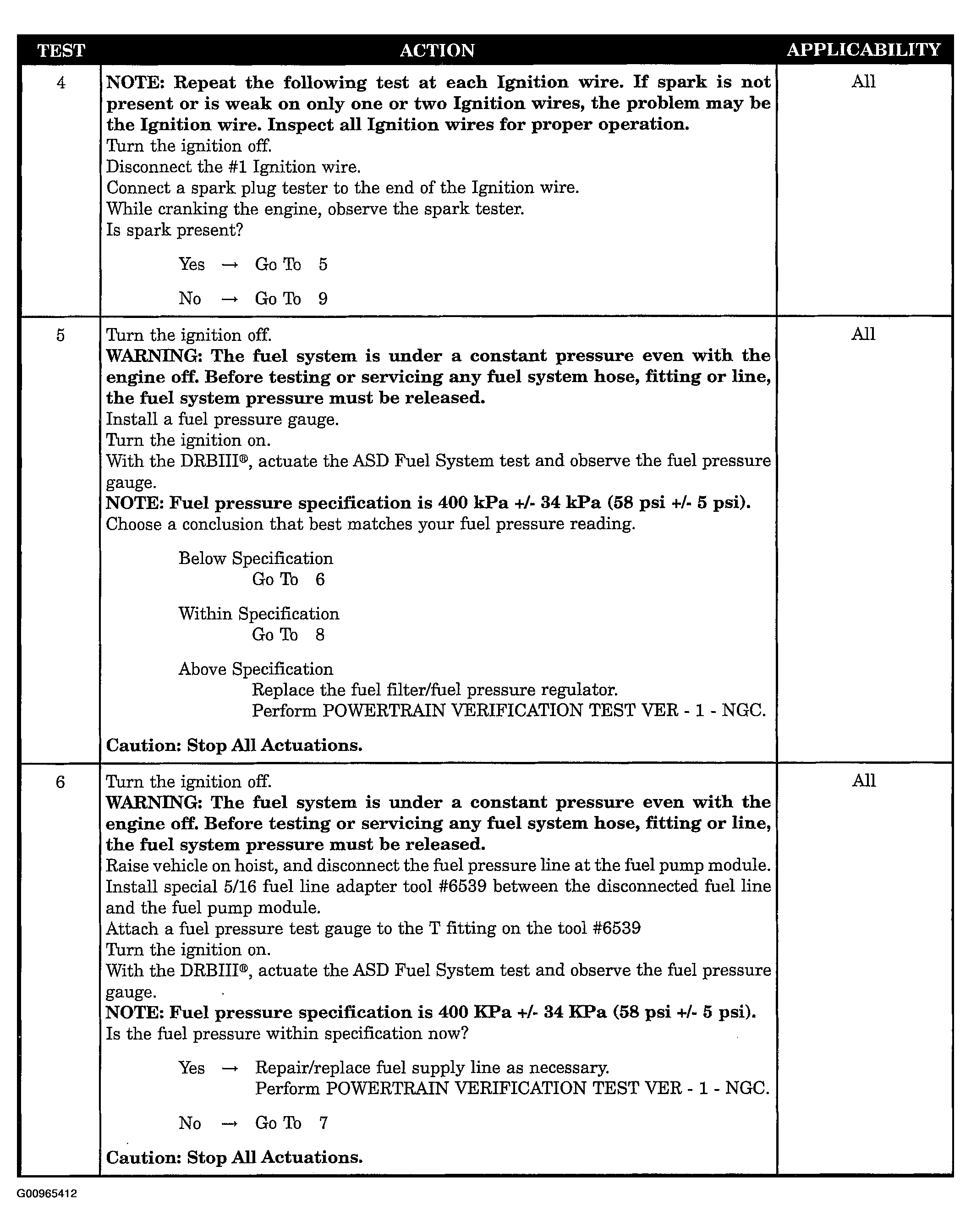

Fig 2: Testing: Engine Cranks Does Not Start (2 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

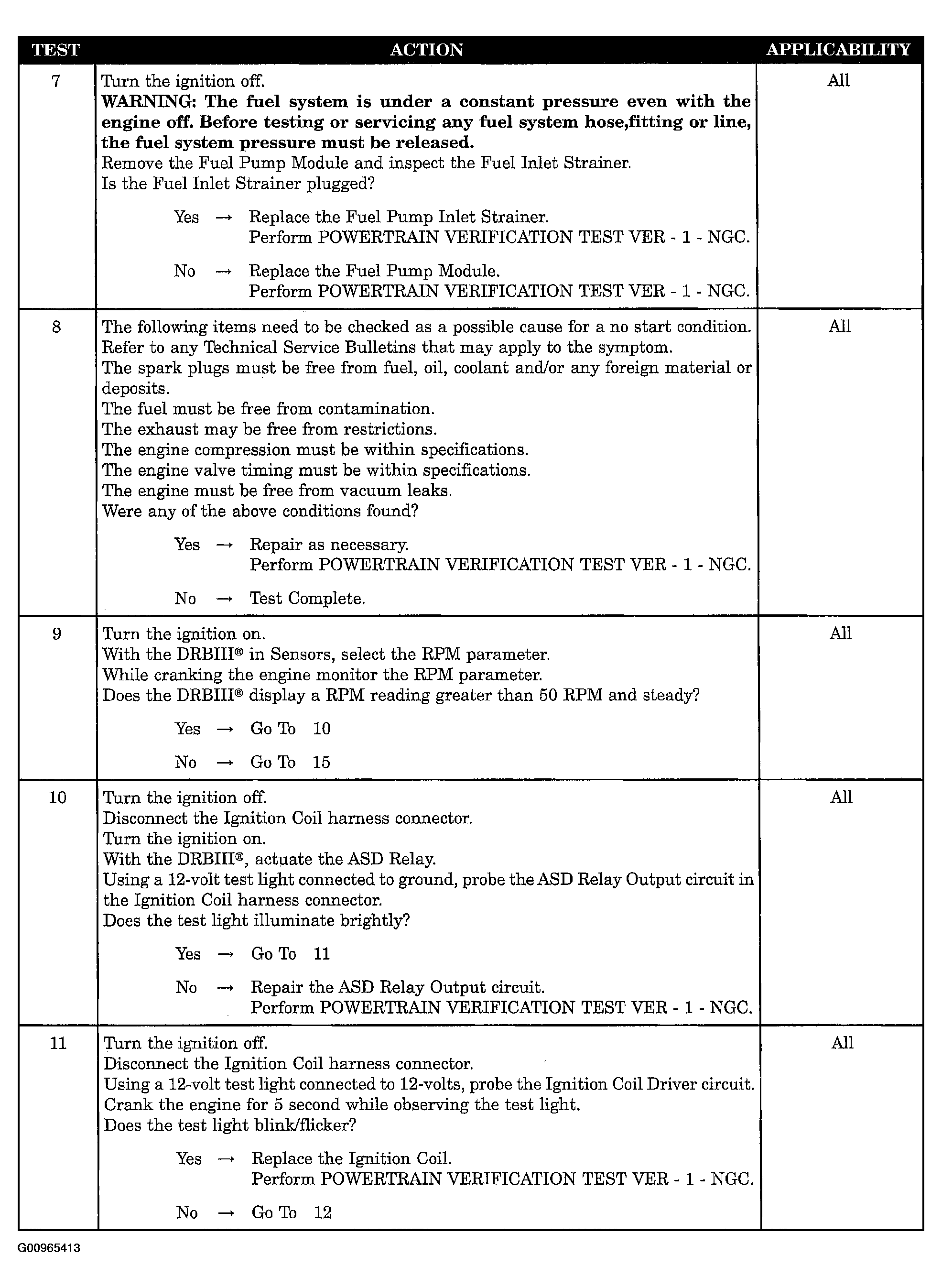

Fig 3: Testing: Engine Cranks Does Not Start (3 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 4: Testing: Engine Cranks Does Not Start (4 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 5: Testing: Engine Cranks Does Not Start (5 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

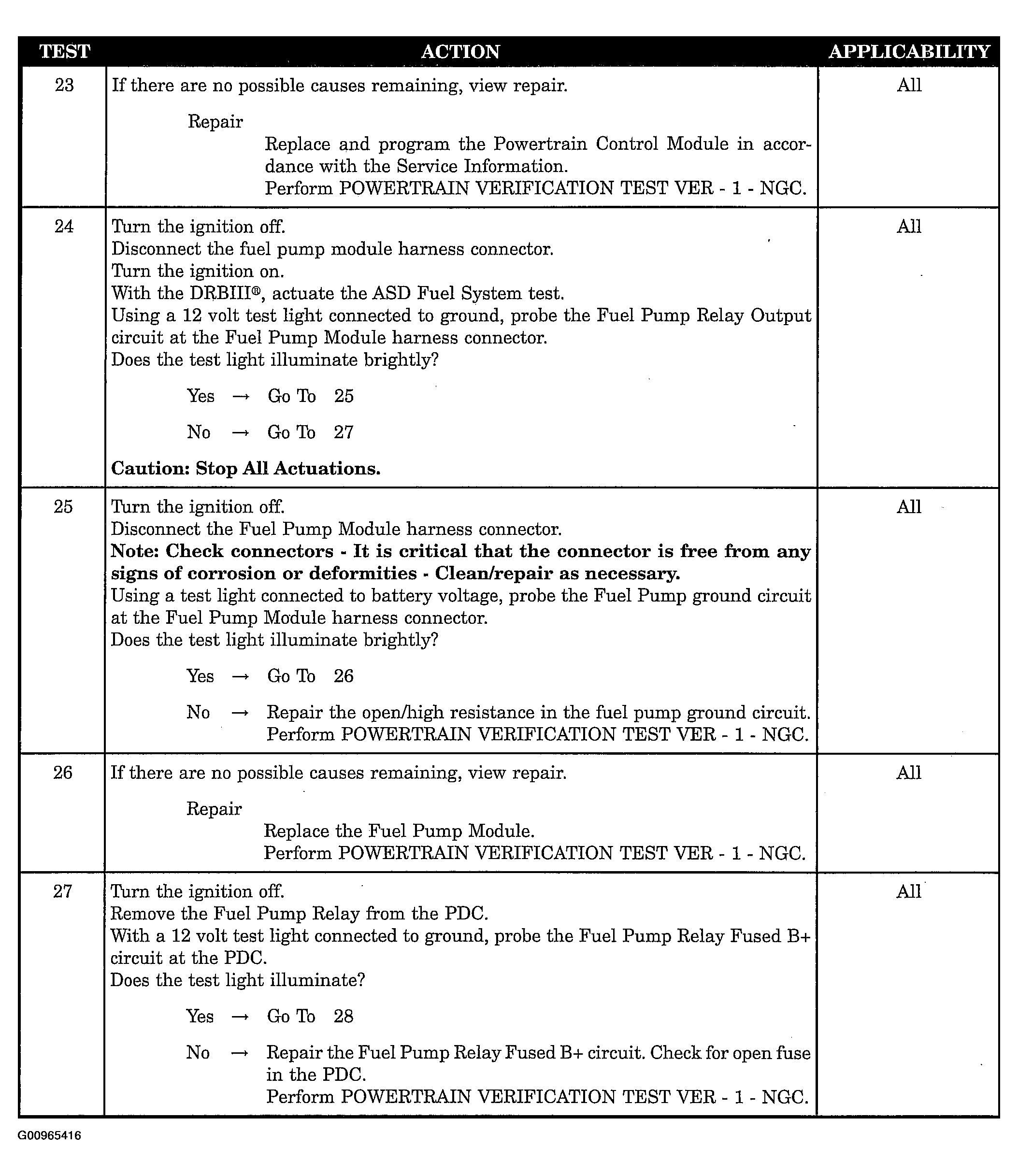

Fig 6: Testing: Engine Cranks Does Not Start (6 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.

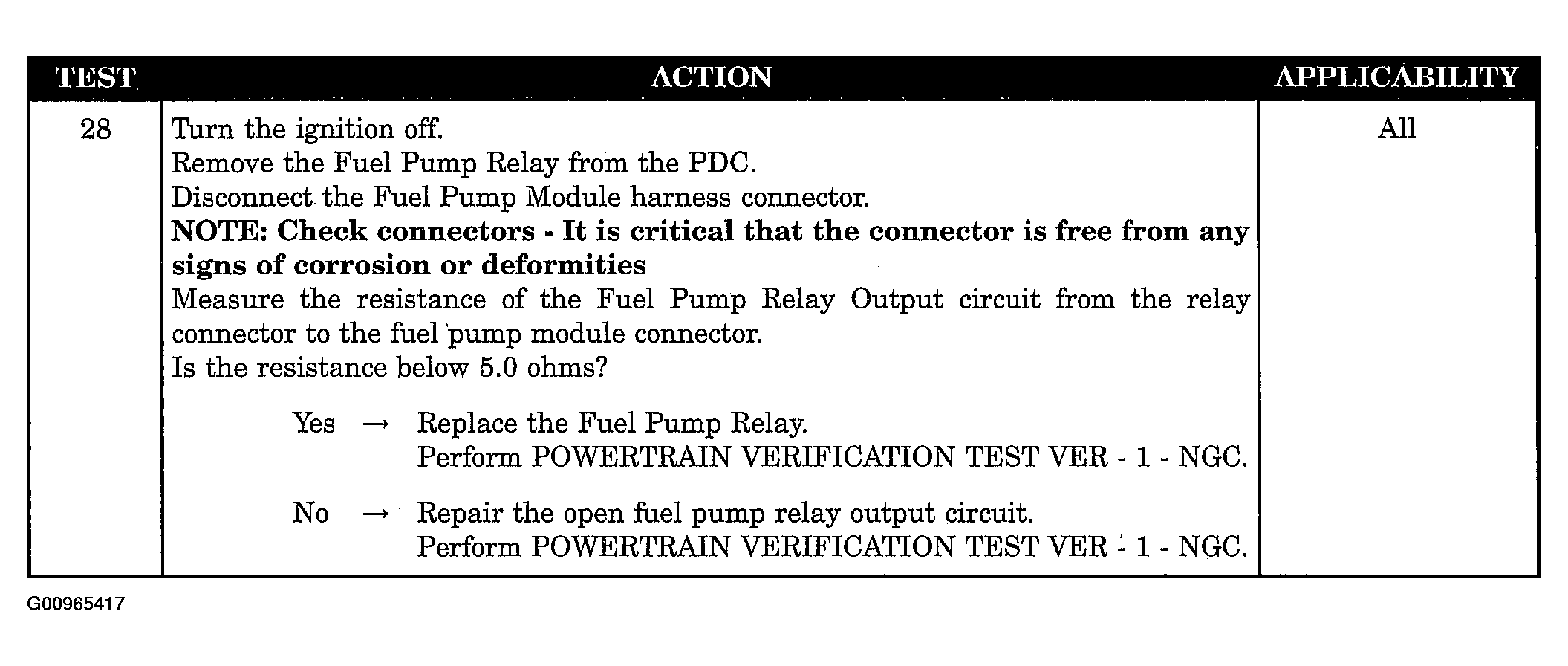

Fig 7: Testing: Engine Cranks Does Not Start (7 Of 7)

Courtesy of DAIMLERCHRYSLER CORP.
