Data Link Connector Connector End View
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Data Link Connector Connector End View

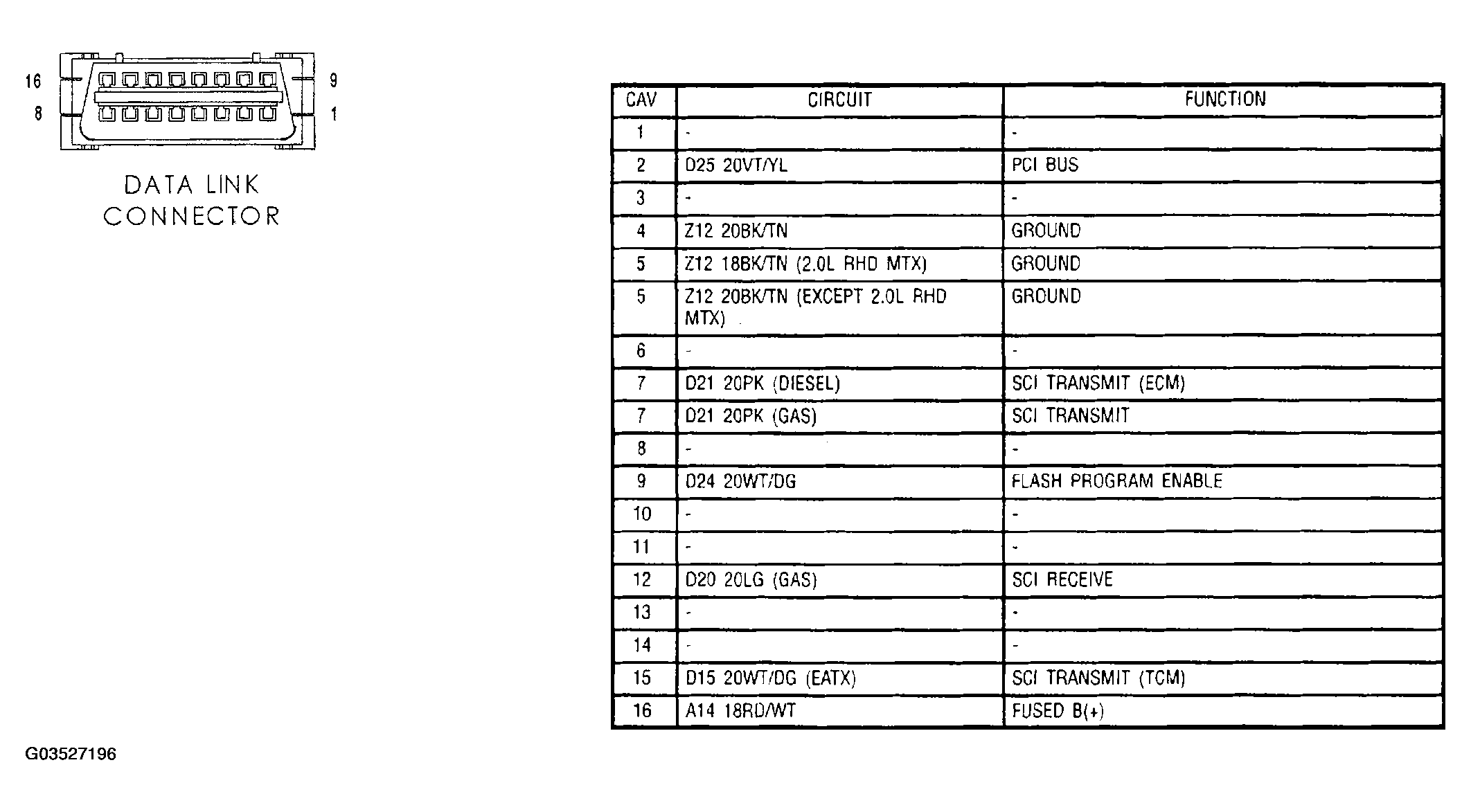

Fig 1: Data Link Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
