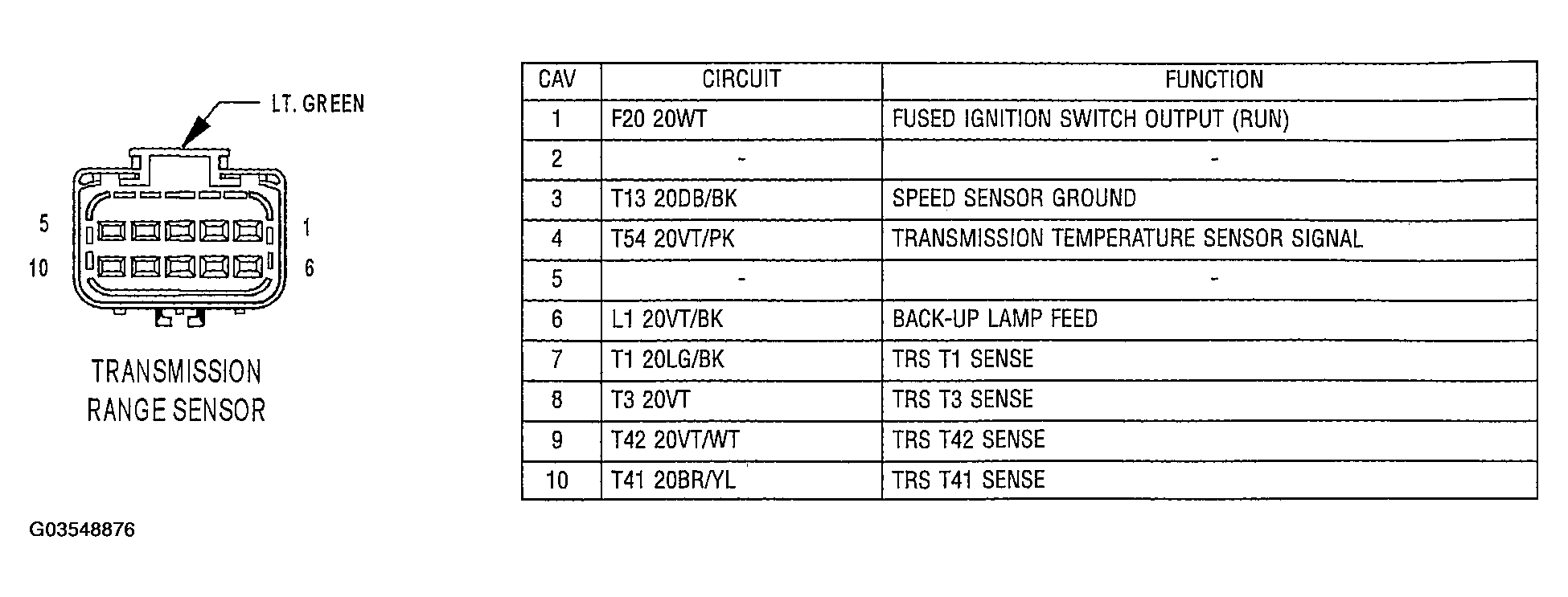

Transmission Range Sensor Connector End View
Fig 1: Identifying Transmission Range Sensor Connector Terminals And Specification (LT. Green 10 Way)
