Junction Block Fuses Connector Terminals And Specification

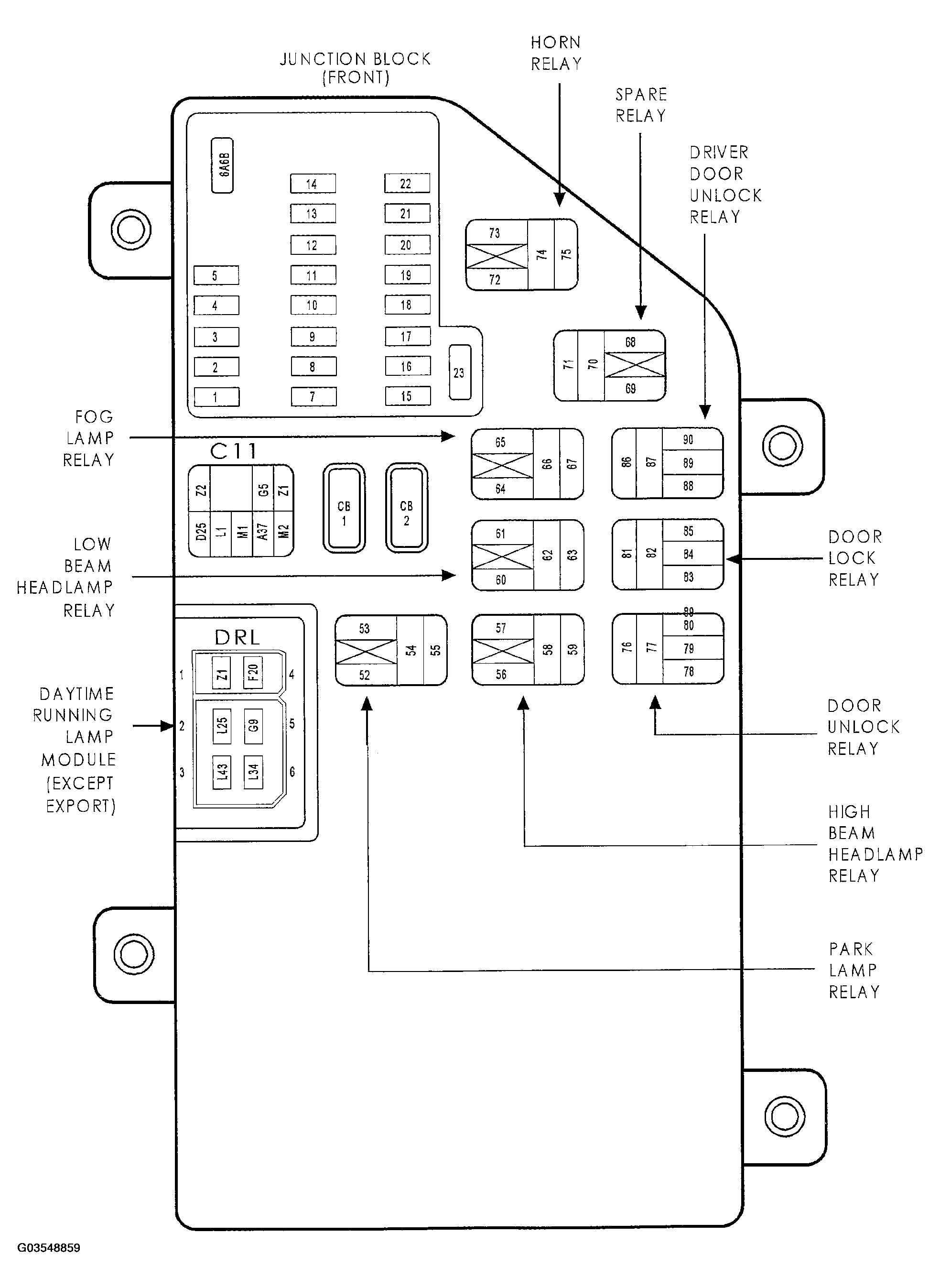

Fig 1: Identifying Fuses Connector Terminals And Specification (JB) (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 2: Identifying Fuses Connector Terminals And Specification (JB) (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.
