Diagnostic Procedure

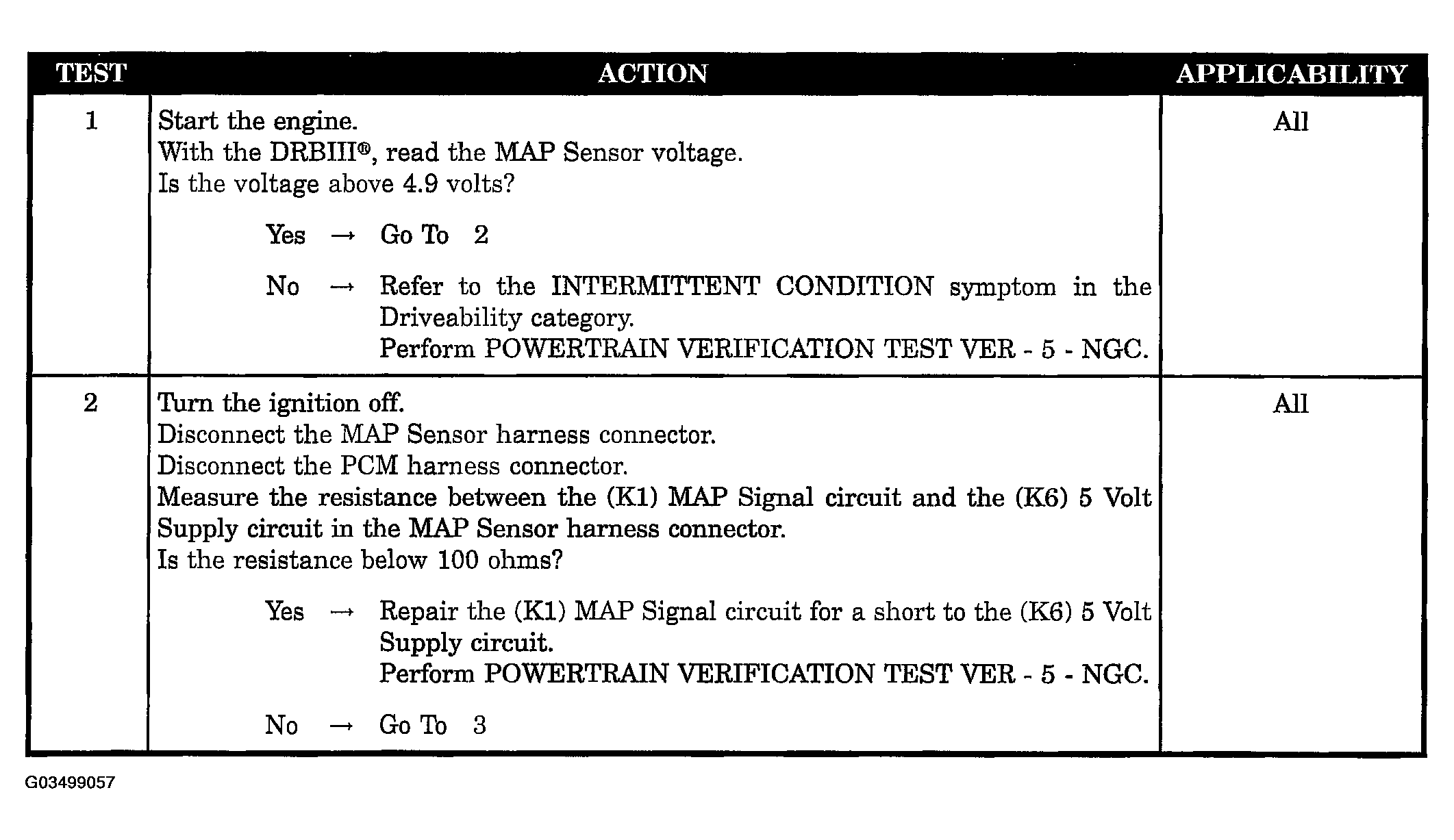

Fig 1: Map Sensor High - Diagnostic Procedure (1 Of 3)
G03499057Courtesy of DAIMLERCHRYSLER CORP.

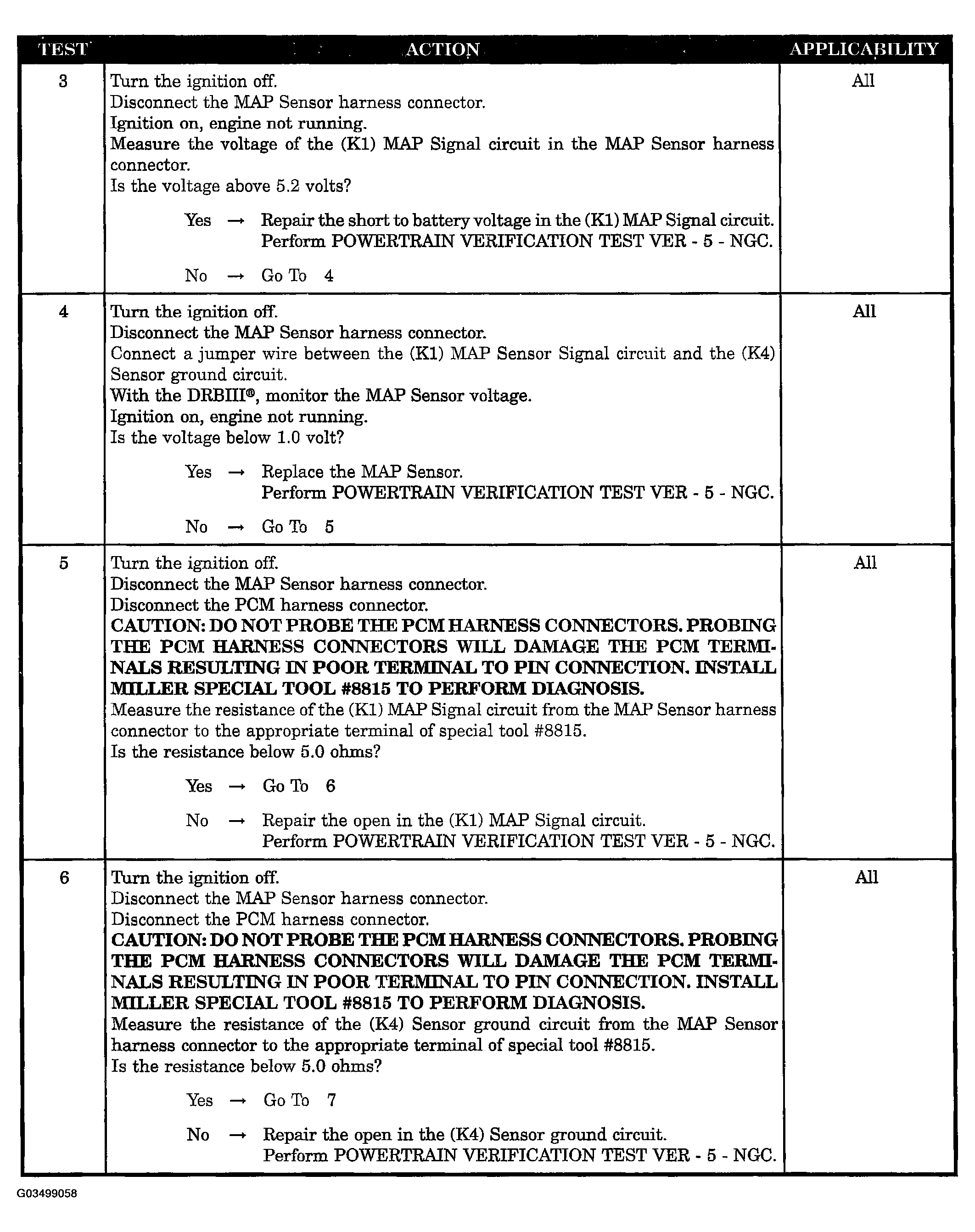

Fig 2: Map Sensor High - Diagnostic Procedure (2 Of 3)
G03499058Courtesy of DAIMLERCHRYSLER CORP.

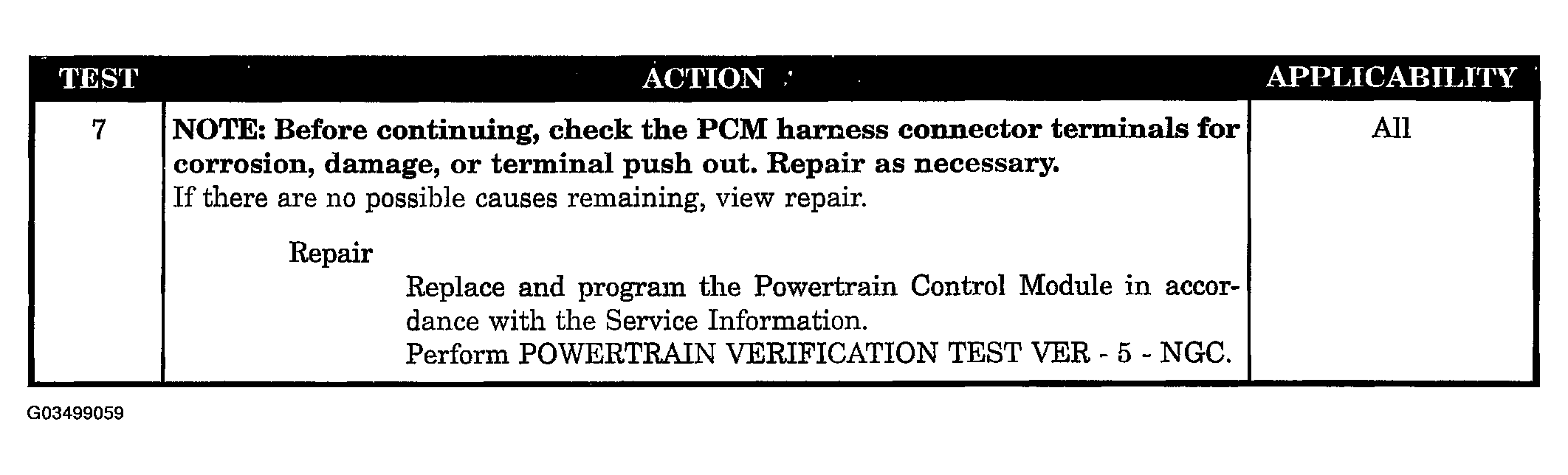

Fig 3: Map Sensor High - Diagnostic Procedure (3 Of 3)
G03499059Courtesy of DAIMLERCHRYSLER CORP.
