Coil On Plug No. 5

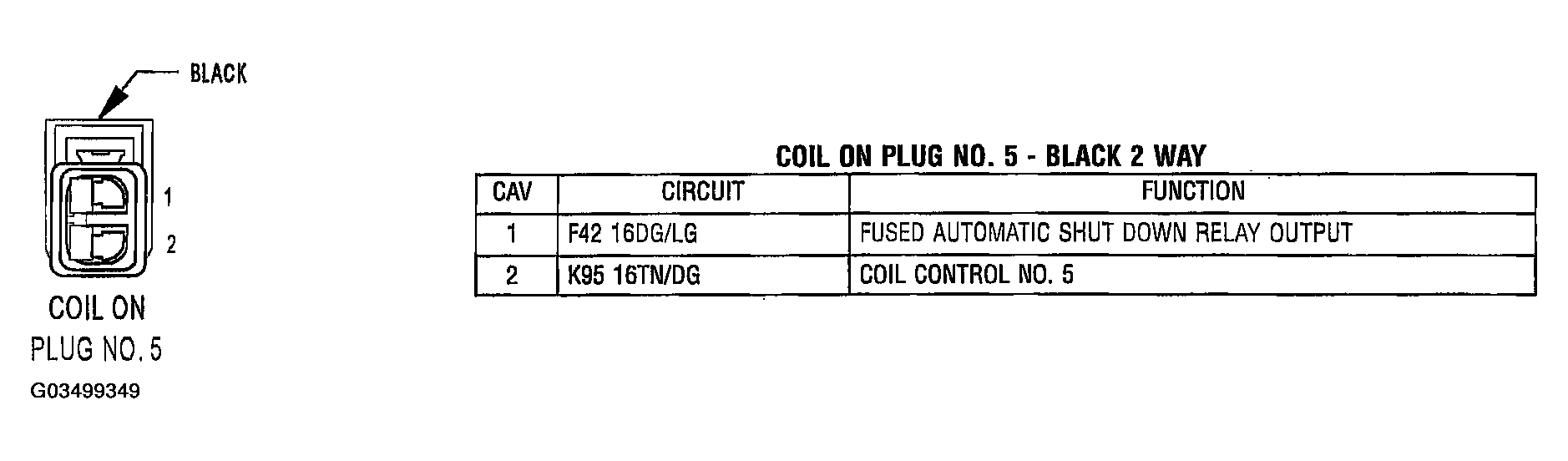

Fig 1: Identifying Coil On Plug No. 5 Sensor Connector
Courtesy of DAIMLERCHRYSLER CORP.
