Brake Lamp Switch

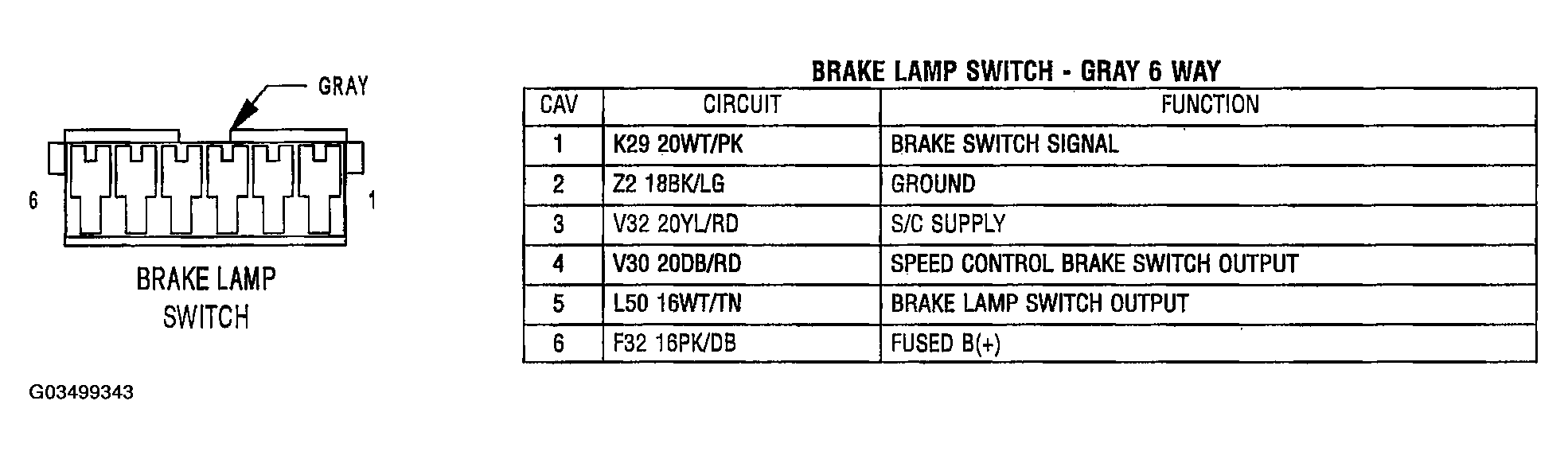

Fig 1: Identifying Brake Lamp Switch Sensor Connector
G03499343Courtesy of DAIMLERCHRYSLER CORP.
