Removal - 3.5L

  1. Remove the negative battery cable.
  2. Remove link.
  3. Remove electrical connector.
  4. Remove 3 bolts.
  5. Remove valve (Fig 1).

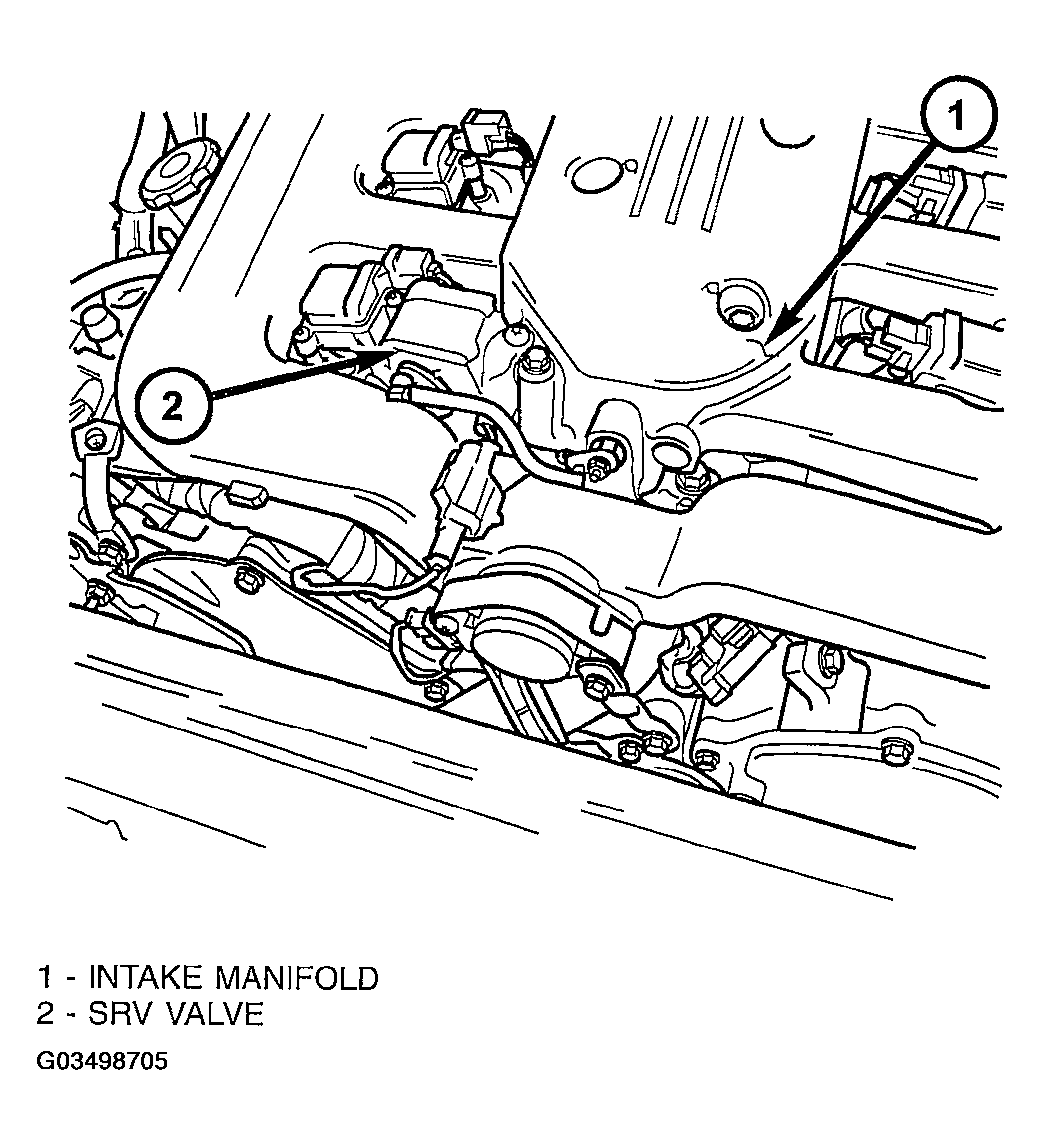

    Fig 1: Short Runner Valve (SRV)
    G03498705Courtesy of DAIMLERCHRYSLER CORP.
