Repair and Diagnosis: Electrical: Gauges: Clock: Description

The clock is of analog type (Fig 1 ), mounted in the instrument panel center air distribution bezel.

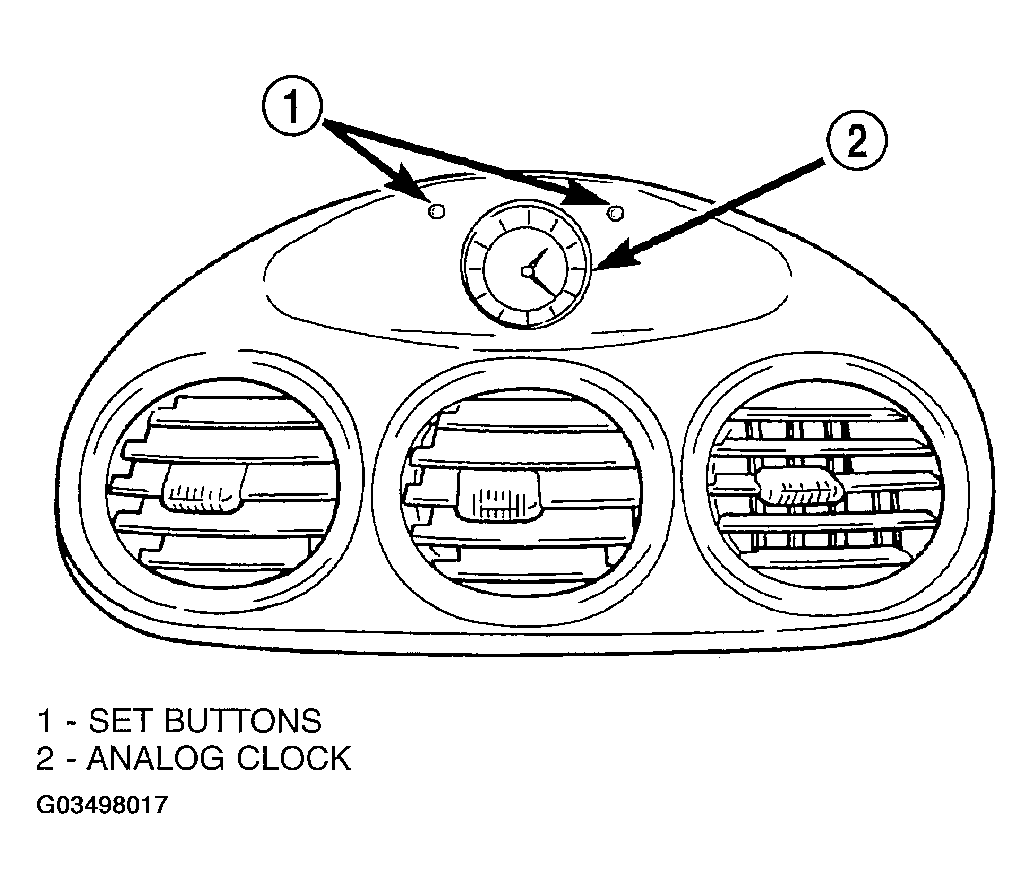

Fig 1: Identifying Analog Clock

Courtesy of DAIMLERCHRYSLER CORP.
