Battery Heater Blanket: Description

A heater blanket (Fig 1 ) is used to improve the battery cold-start ability. This blanket operates on 110 volt AC current and is used with Alaska and Canada cold weather packages.

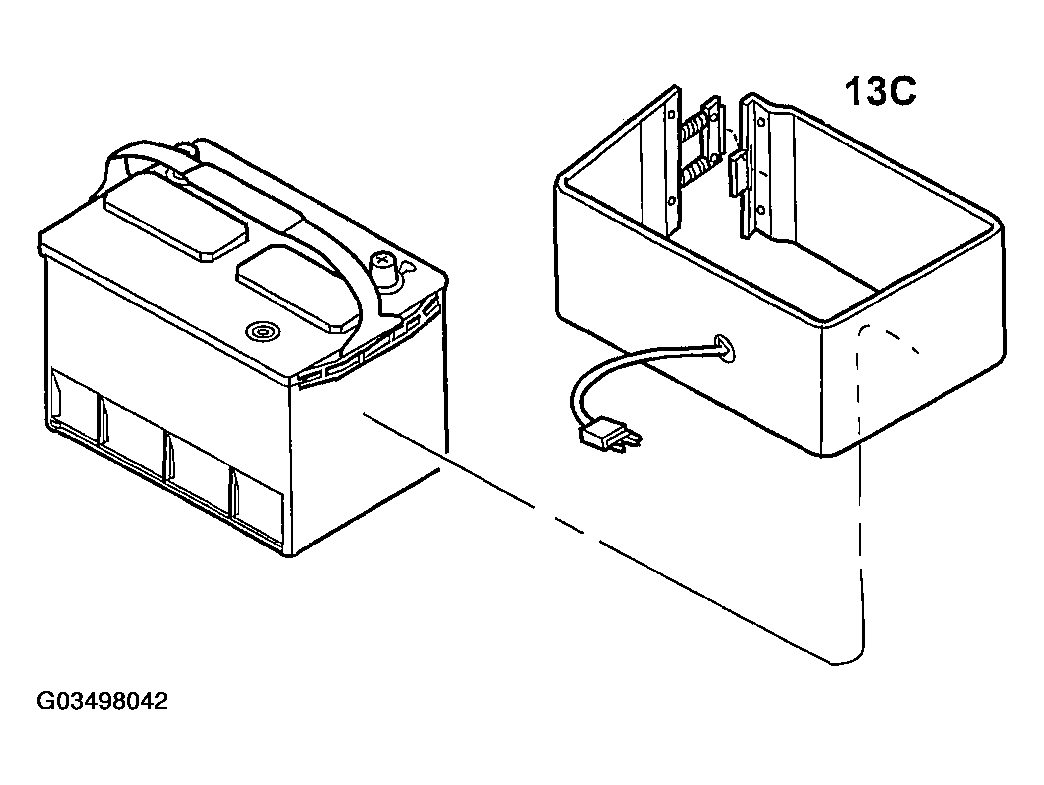

Fig 1: LH Heater Blanket

Courtesy of DAIMLERCHRYSLER CORP.

The heater blanket cannot be adjusted or repaired. If the blanket is faulty or damaged it must be replaced.
