Powertrain Control Module C4 Connector End View

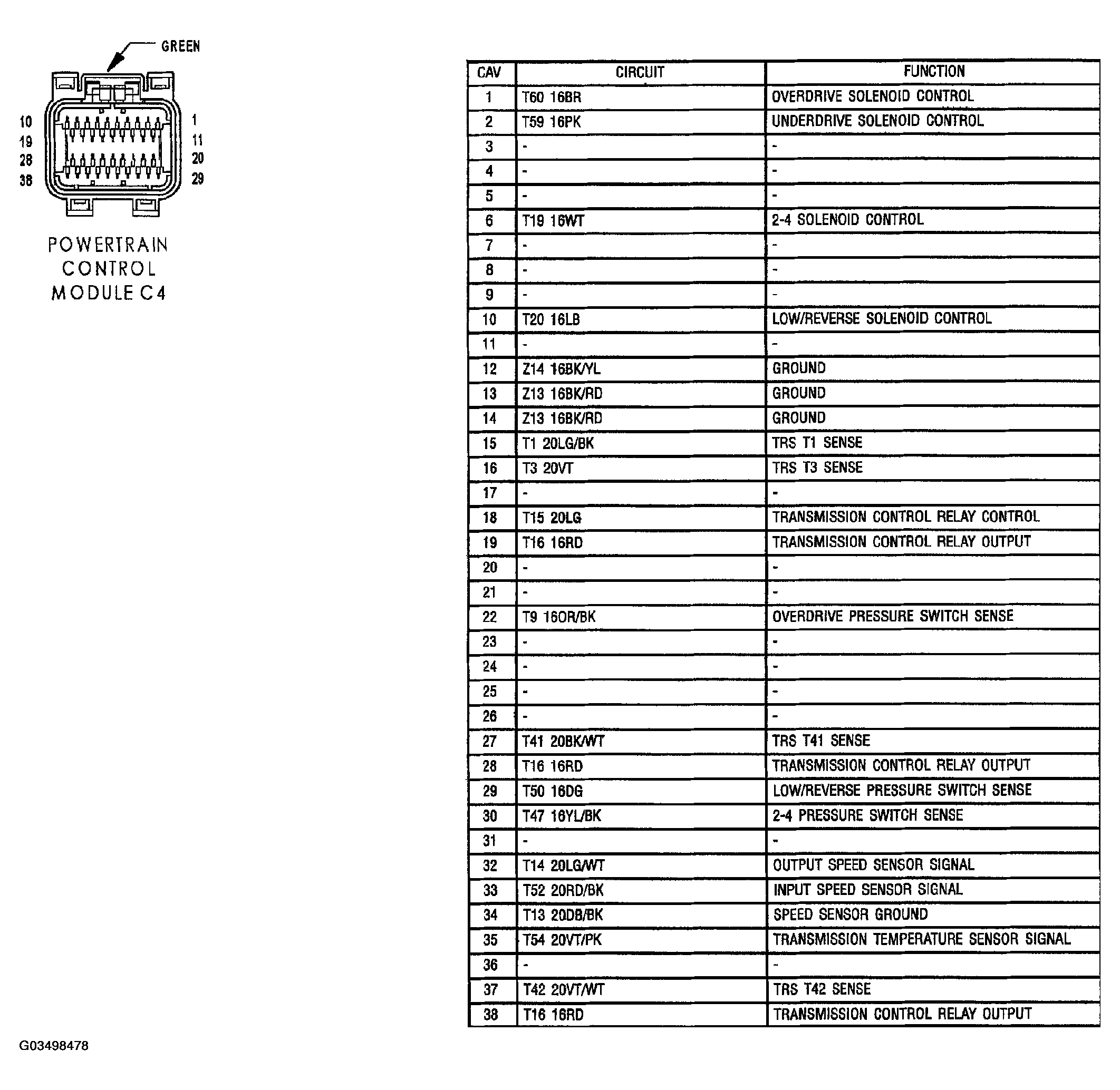

Fig 1: Powertrain Control Module Connector End View (C4)
