Passenger Power Seat Switch Connector End View

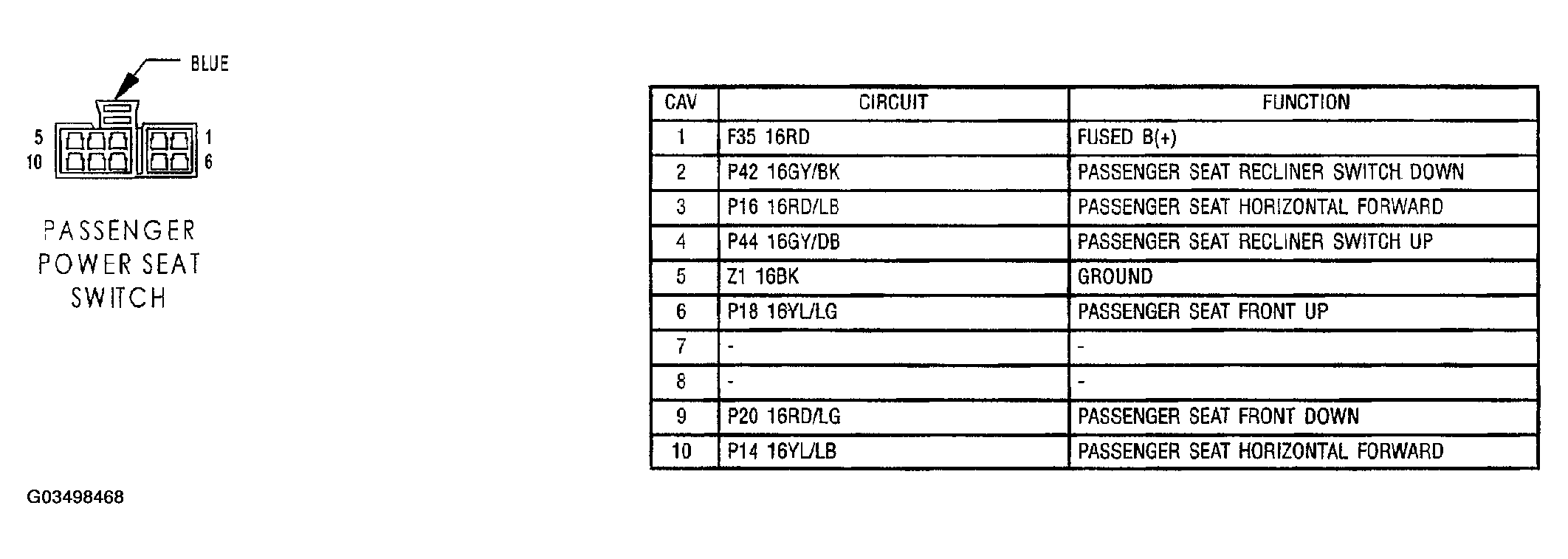

Fig 1: Passenger Power Seat Switch Connector End View
G03498468Courtesy of DAIMLERCHRYSLER CORP.
