Front Fascia: Removal: Removal

Release hood latch and open hood.
Remove large rubber grommet (70 mm x 168 mm) from splash shield to gain access to fascia fasteners (Fig 1 ).

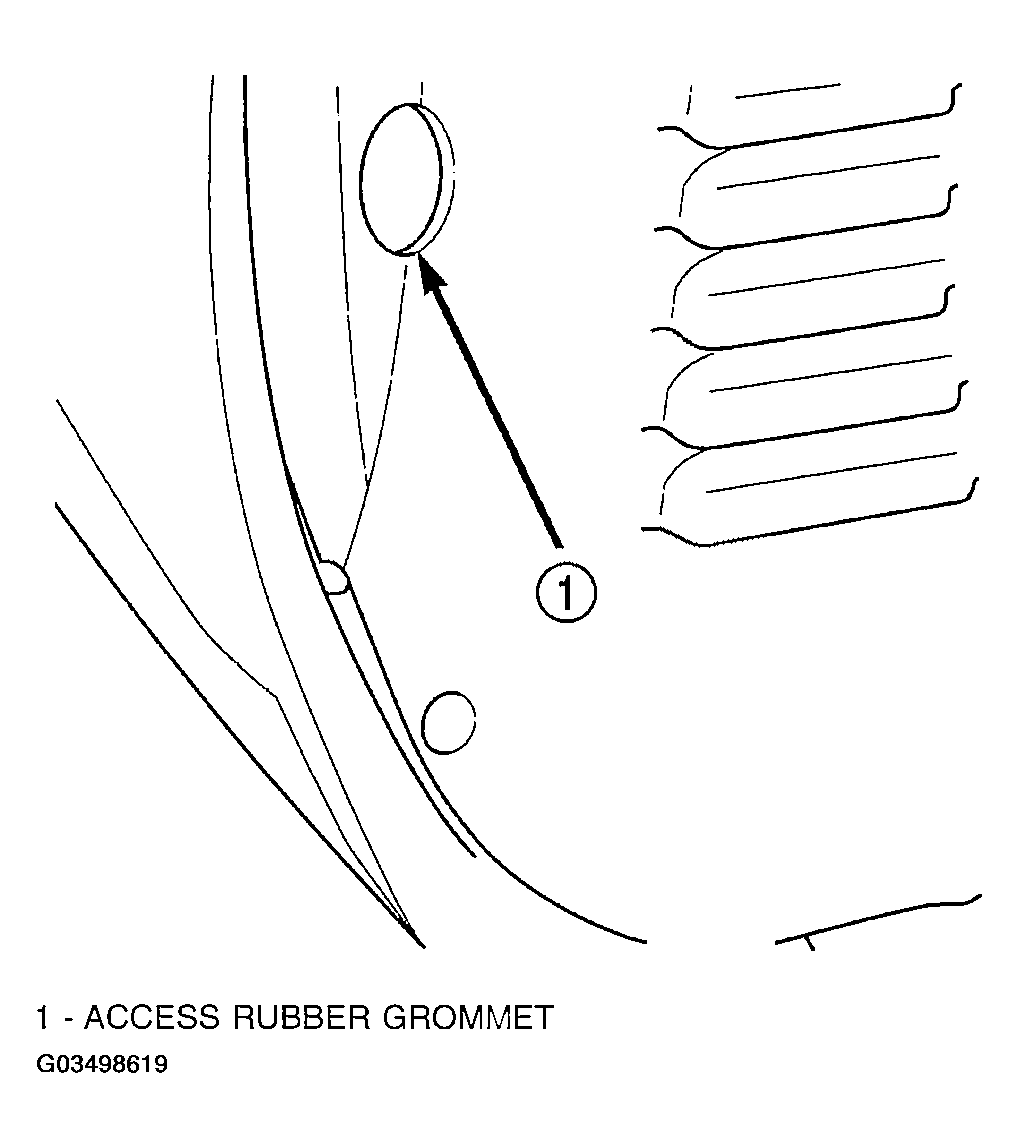

Fig 1: Access Rubber Grommet
Courtesy of DAIMLERCHRYSLER CORP.
Remove fasteners attaching fascia to the front fender and splash shield.
Remove the nuts on the fascia studs through the splash shield access holes on each side (Fig 2 ).

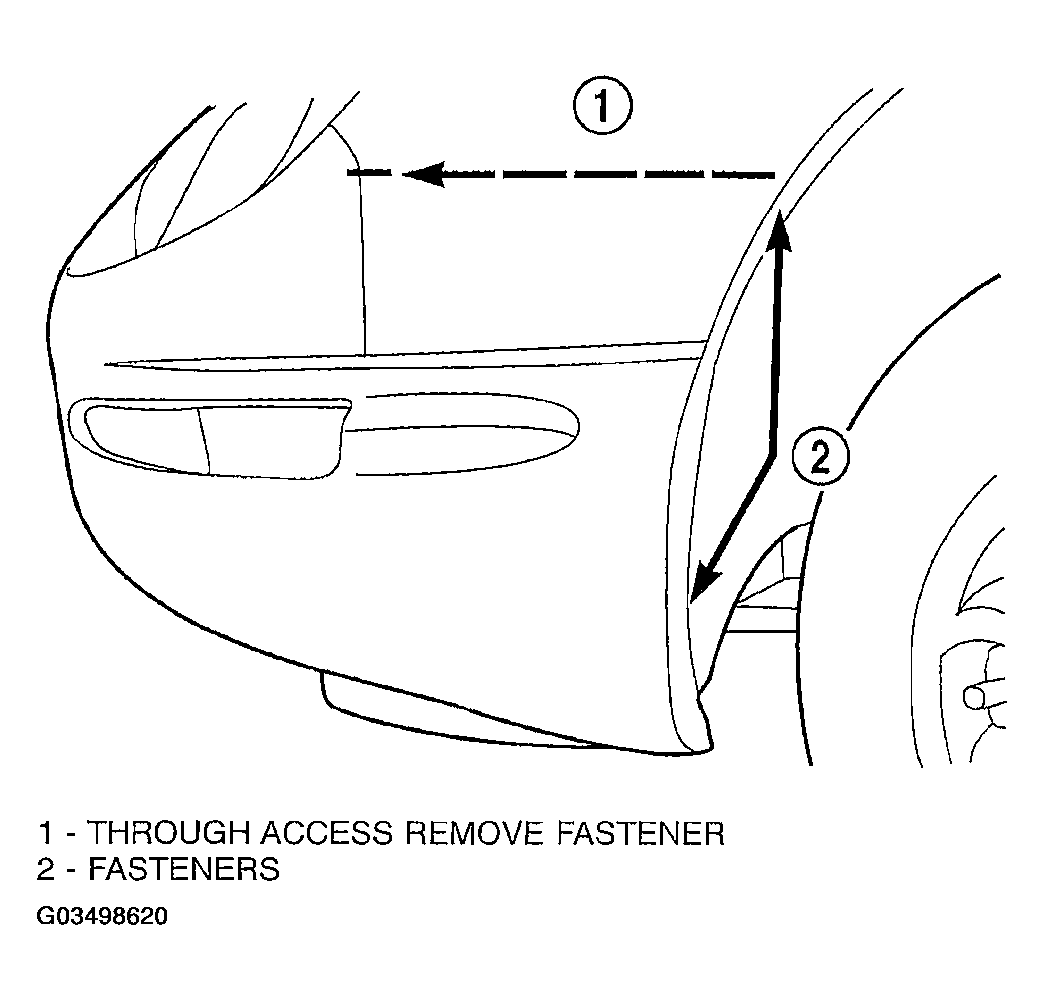

Fig 2: Fastener Locations
Courtesy of DAIMLERCHRYSLER CORP.
Remove the fasteners attaching the fascia to the lower crossmember (Fig 3 ).

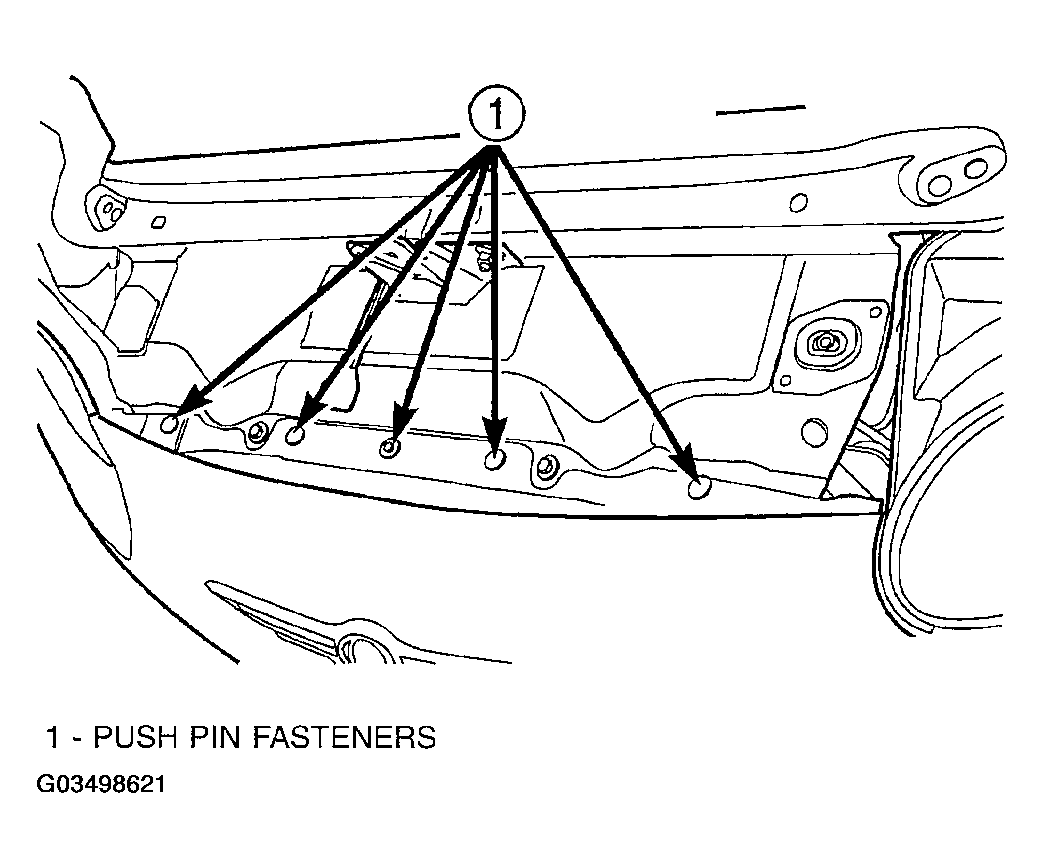

Fig 3: Remove Push Pin Fasteners
Courtesy of DAIMLERCHRYSLER CORP.
Remove the fasteners attaching the fascia to the upper radiator closure panel (Fig 3 ).
Disconnect wire connectors (fog lamps, parking/ turn signal, side marker), if equipped (Fig 4 ).

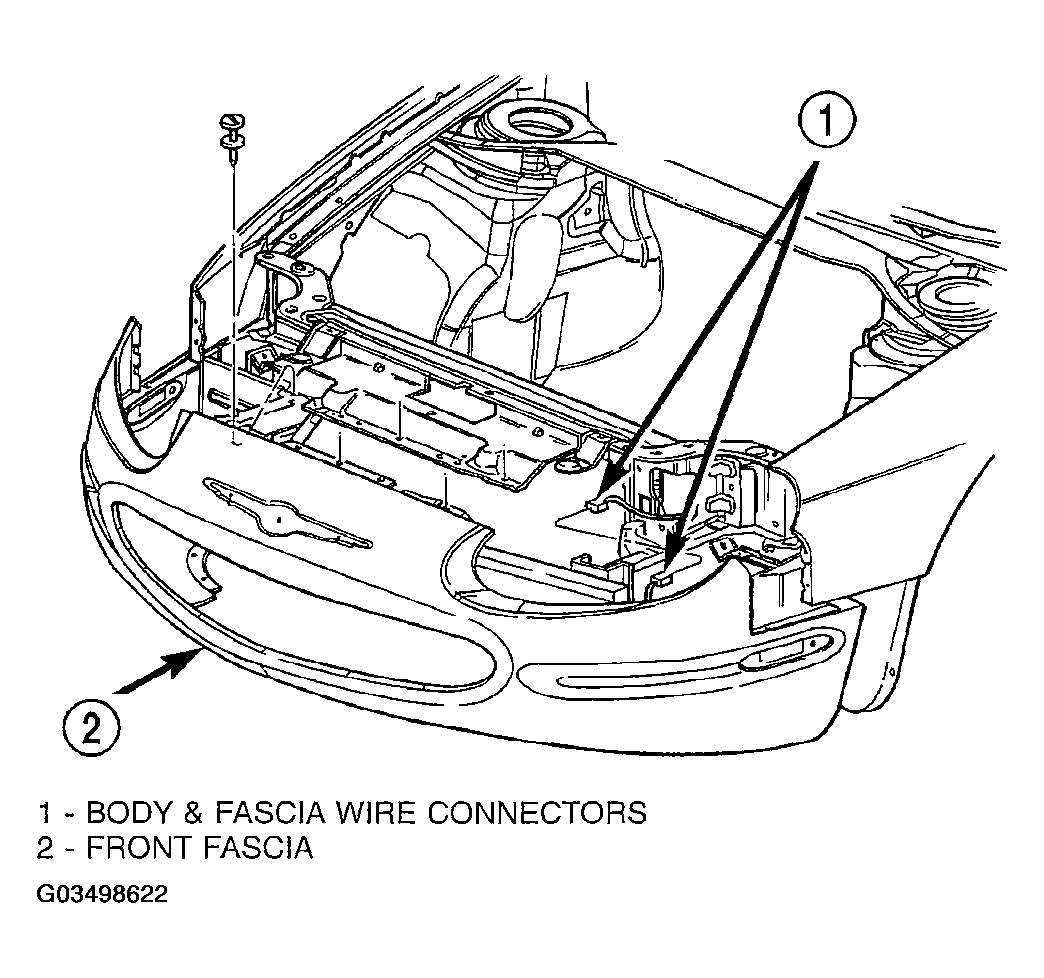

Fig 4: Front Bumper Fascia
Courtesy of DAIMLERCHRYSLER CORP.
Remove fascia from vehicle.
