Crankshaft Position Sensor Connector End View

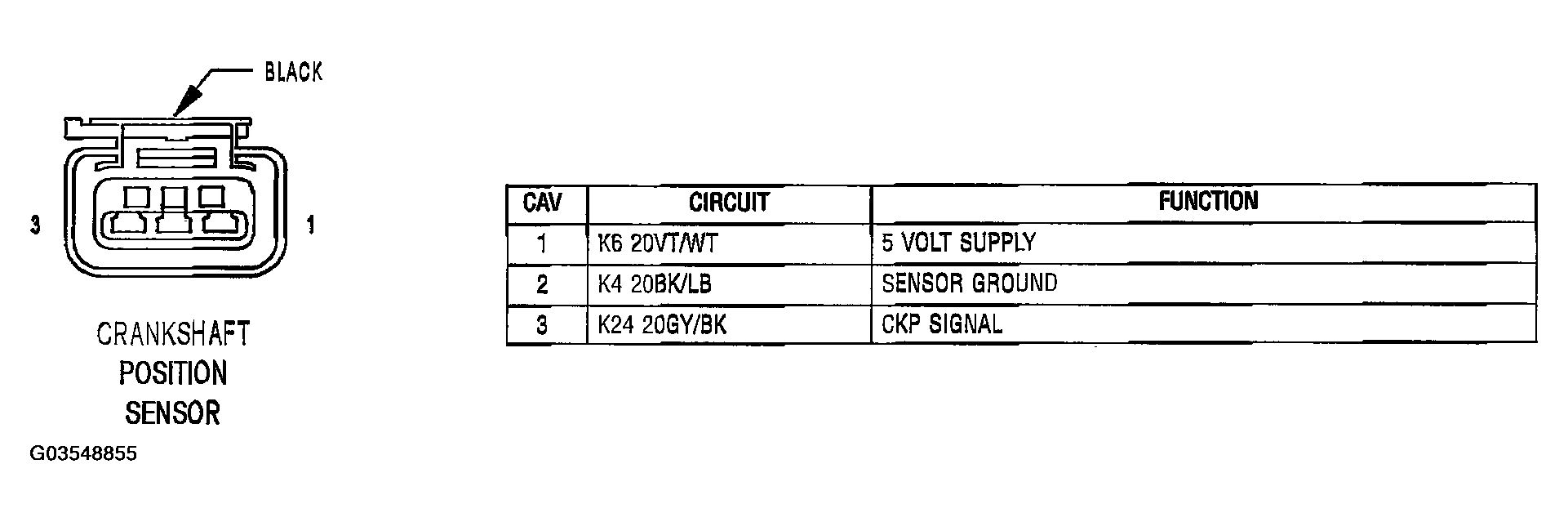

Fig 1: Identifying Crankshaft Position Sensor Connector Terminals And Specification (Black 3 Way)
G03548855Courtesy of DAIMLERCHRYSLER CORP.
