Verification Tests

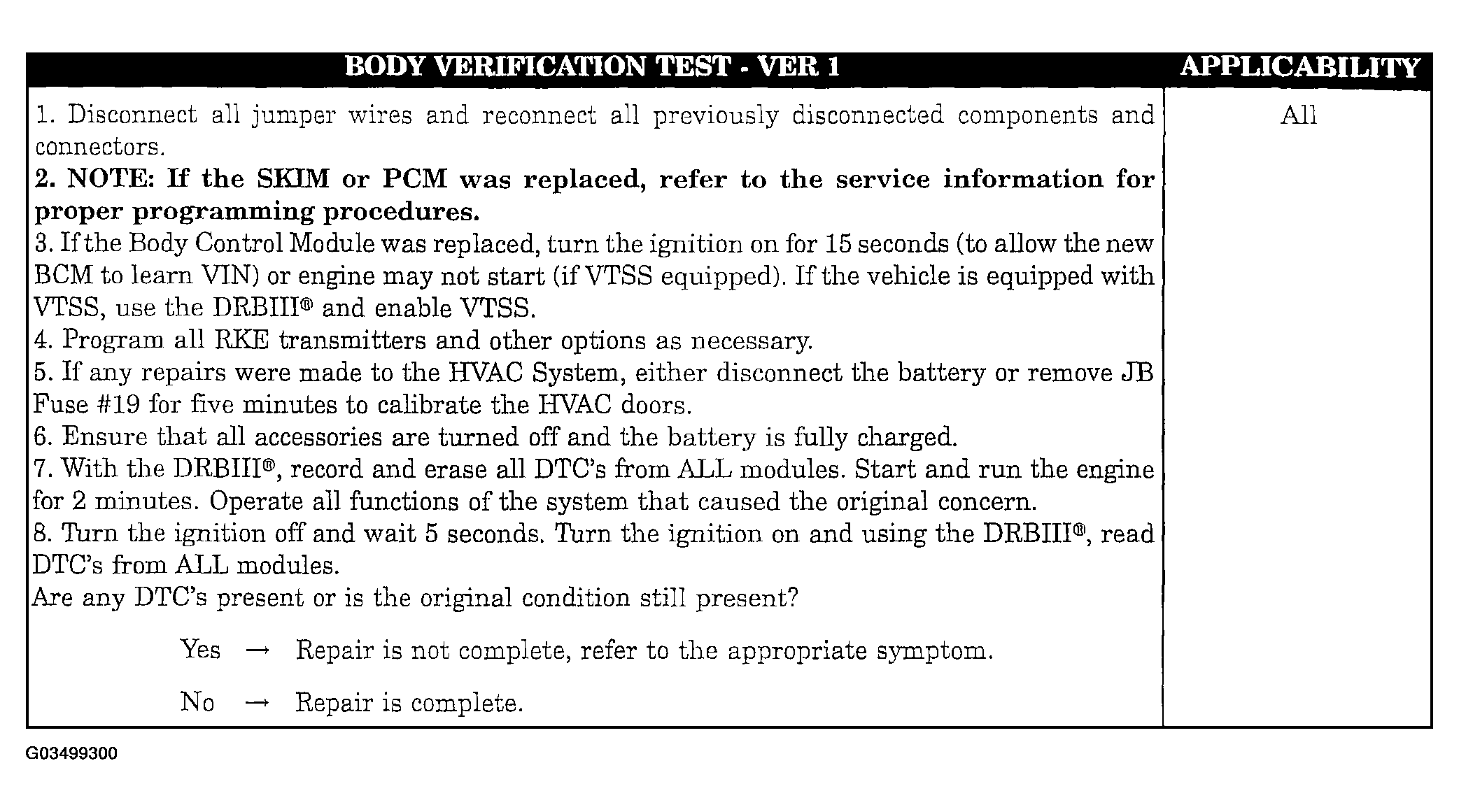

Fig 1: Body Verification Test - VER 1

Courtesy of DAIMLERCHRYSLER CORP.

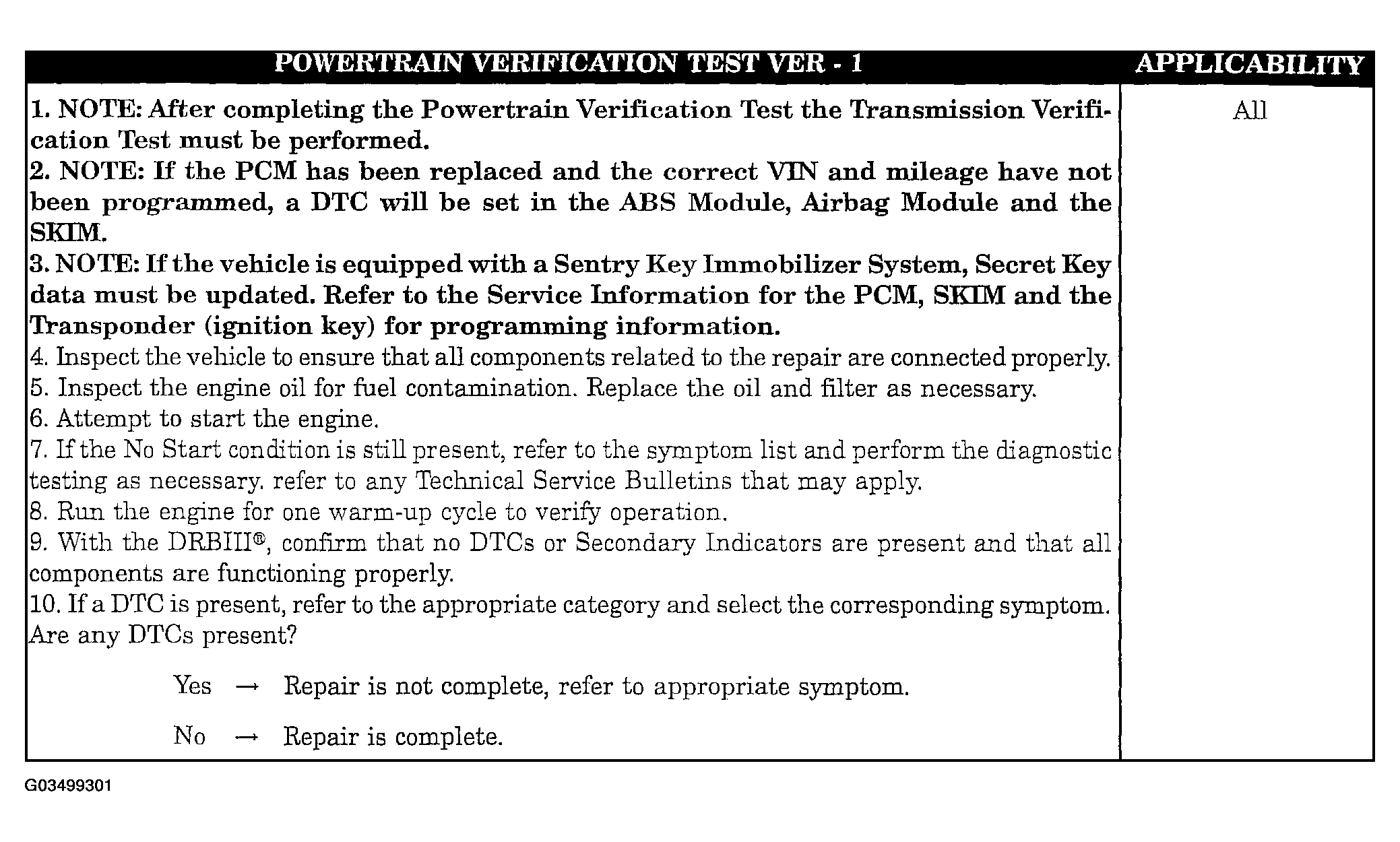

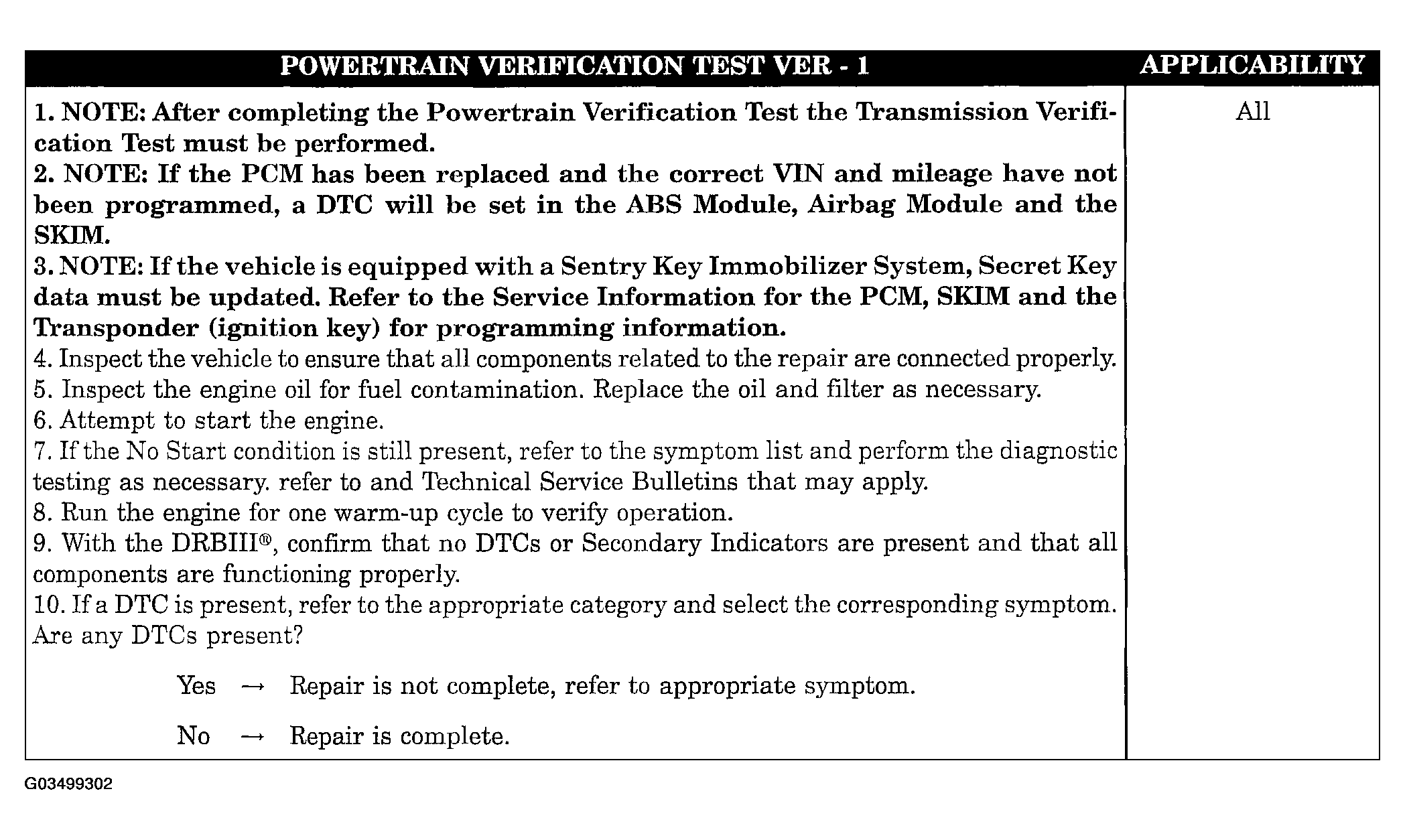

Fig 2: Powertrain Verification Test - VER-1 (1 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

Fig 3: Powertrain Verification Test - VER-1 (2 Of 2)

Courtesy of DAIMLERCHRYSLER CORP.

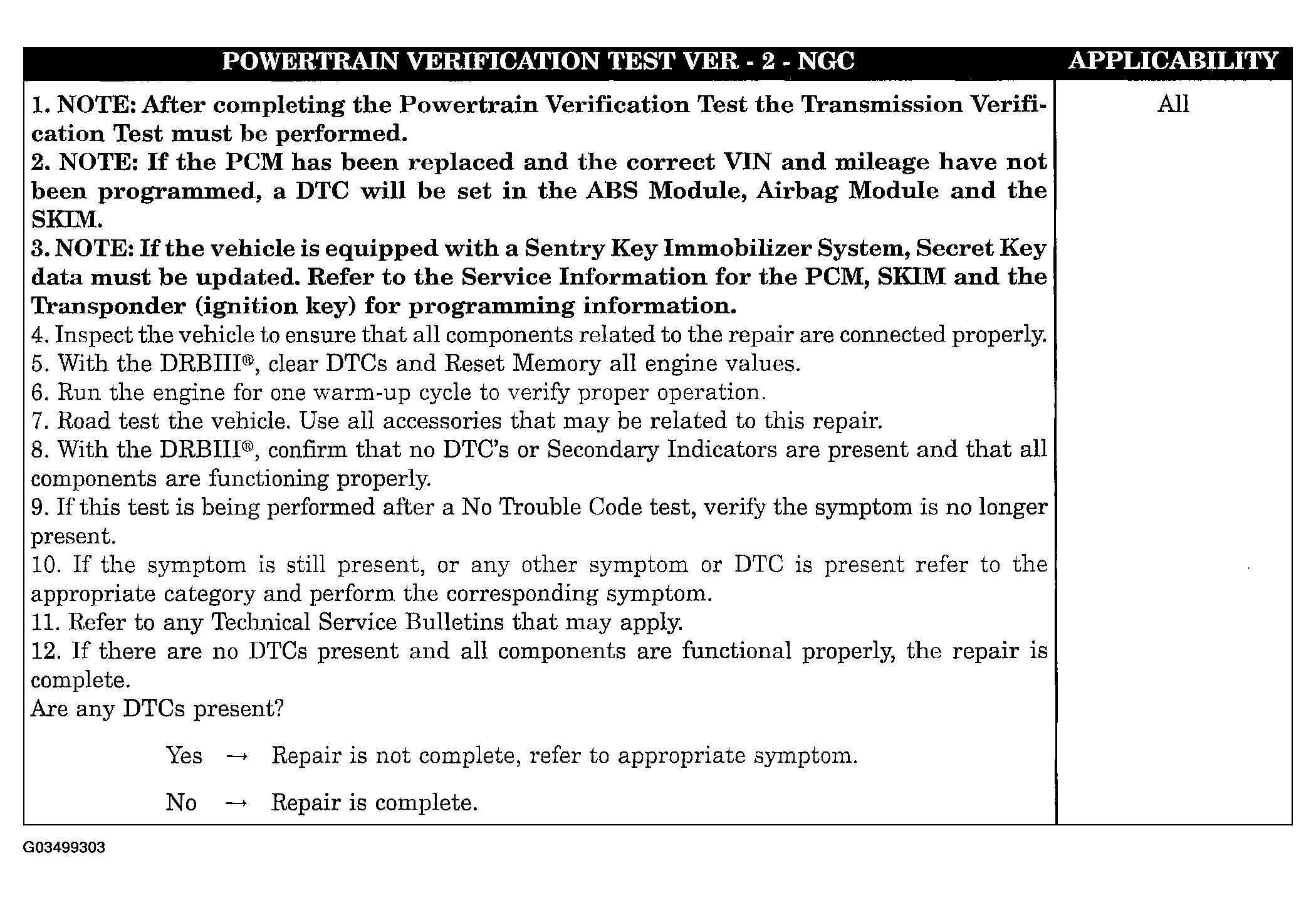

Fig 4: Powertrain Verification Test - VER-2-NGC

Courtesy of DAIMLERCHRYSLER CORP.

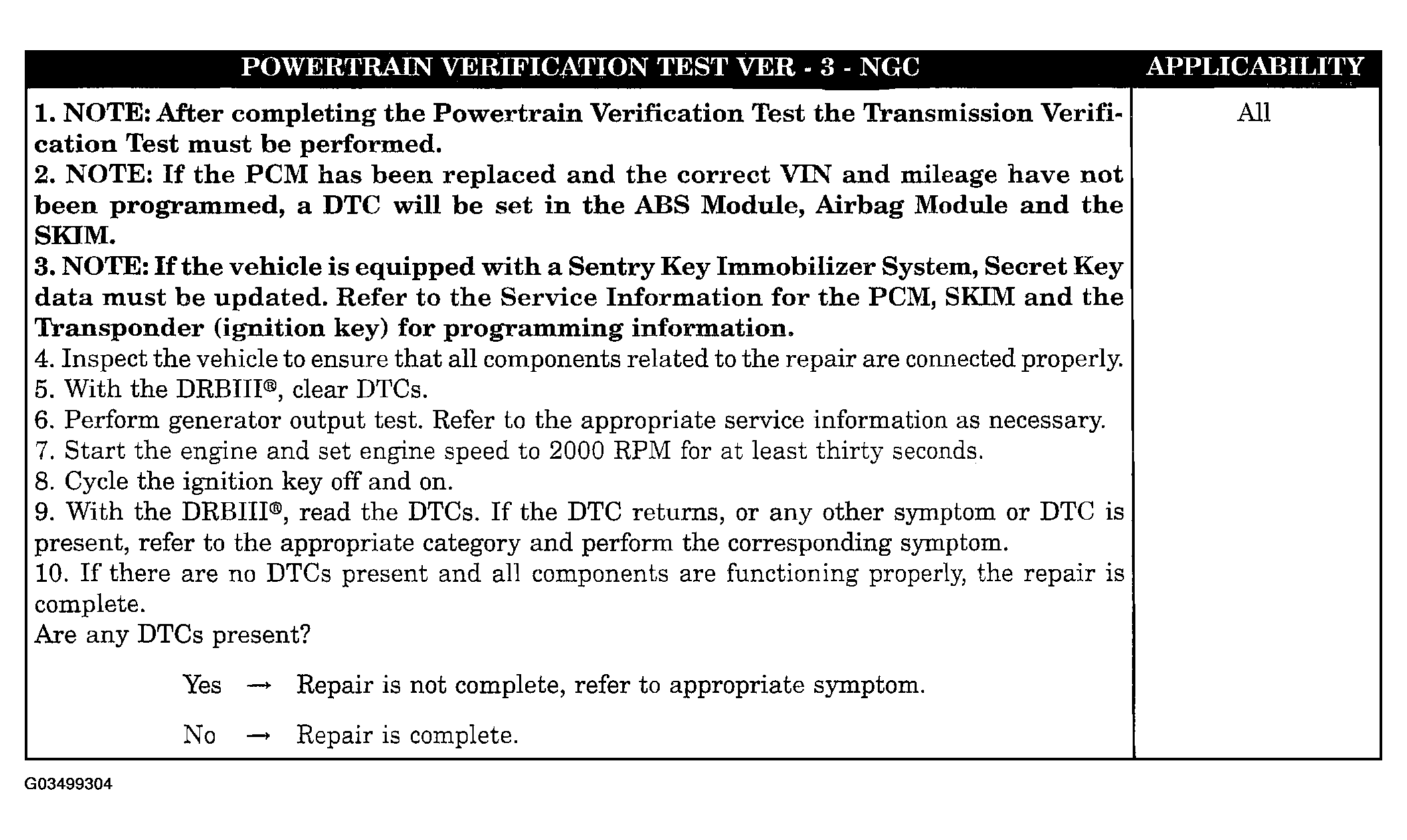

Fig 5: Powertrain Verification Test - VER-3-NGC

Courtesy of DAIMLERCHRYSLER CORP.

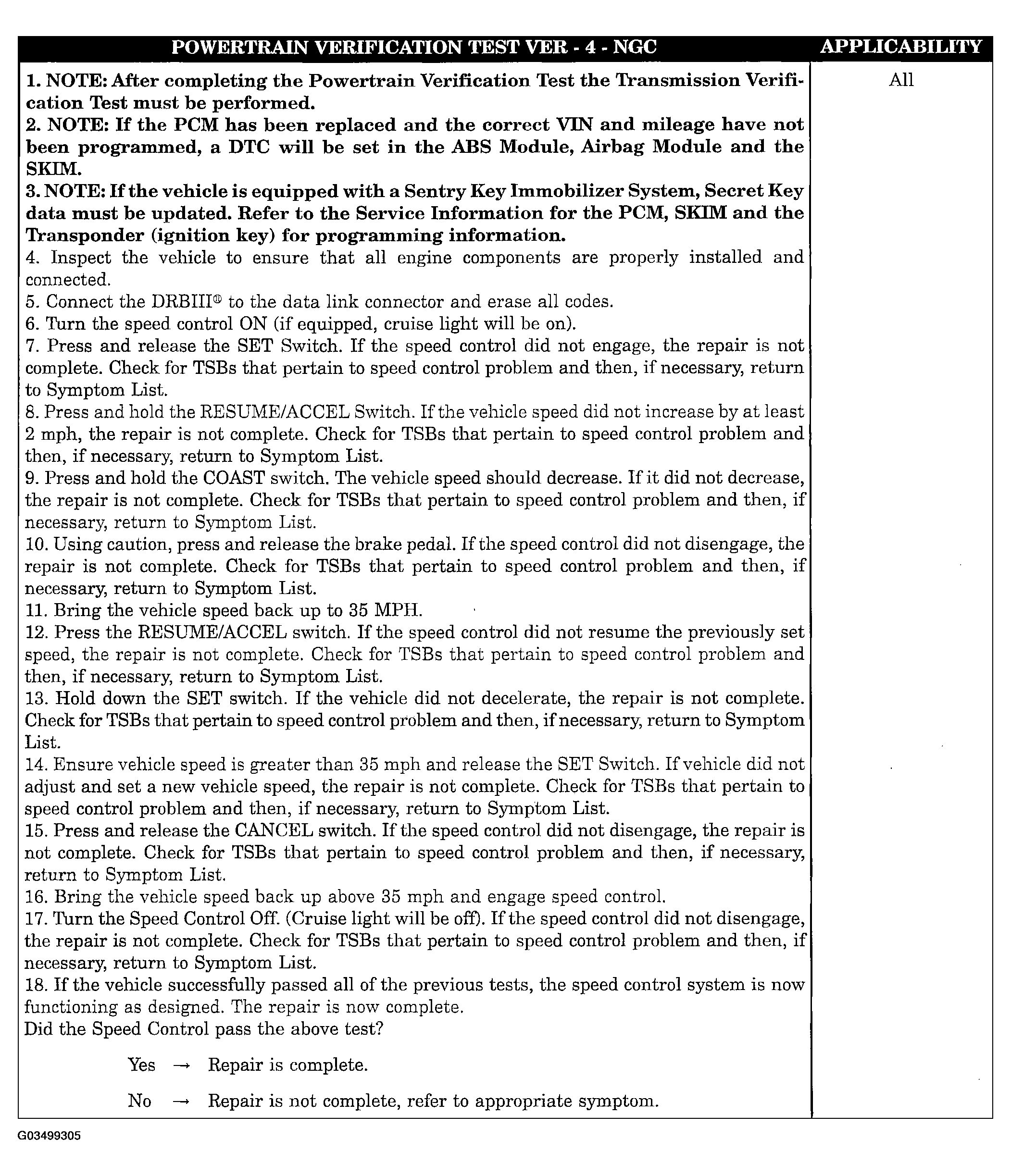

Fig 6: Powertrain Verification Test - VER-4-NGC

Courtesy of DAIMLERCHRYSLER CORP.

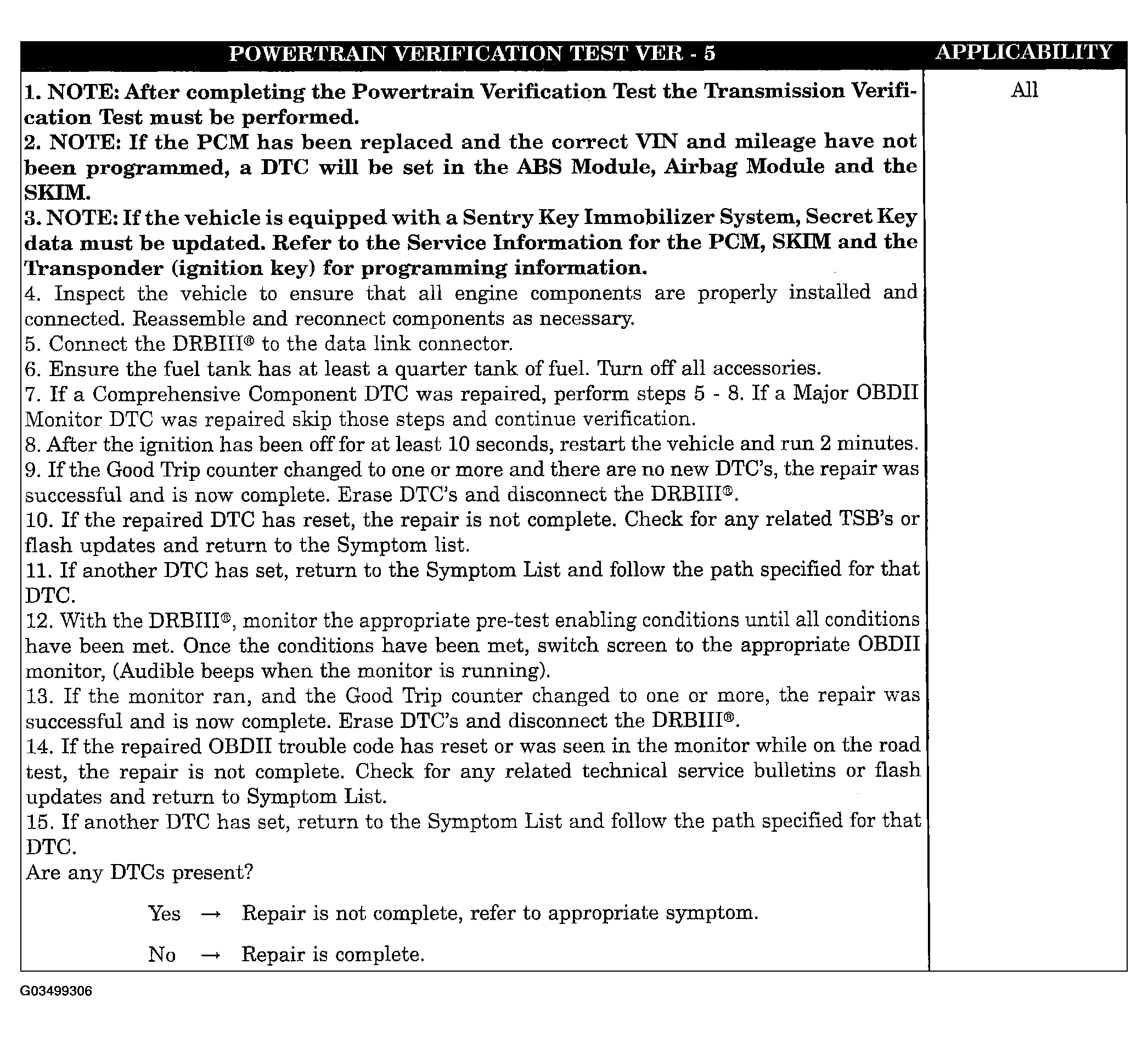

Fig 7: Powertrain Verification Test - VER-5

Courtesy of DAIMLERCHRYSLER CORP.

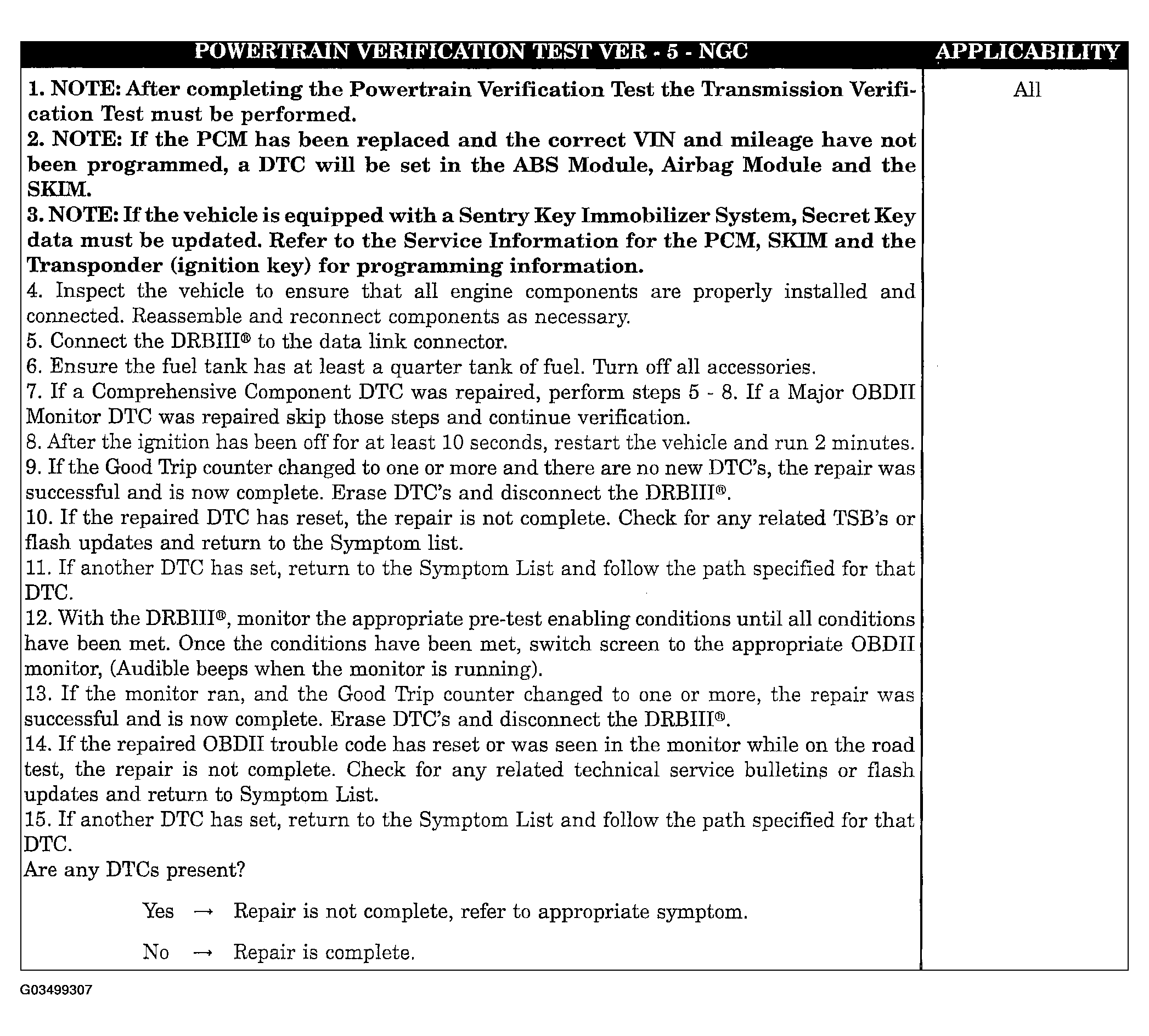

Fig 8: Powertrain Verification Test - VER-5-NGC

Courtesy of DAIMLERCHRYSLER CORP.

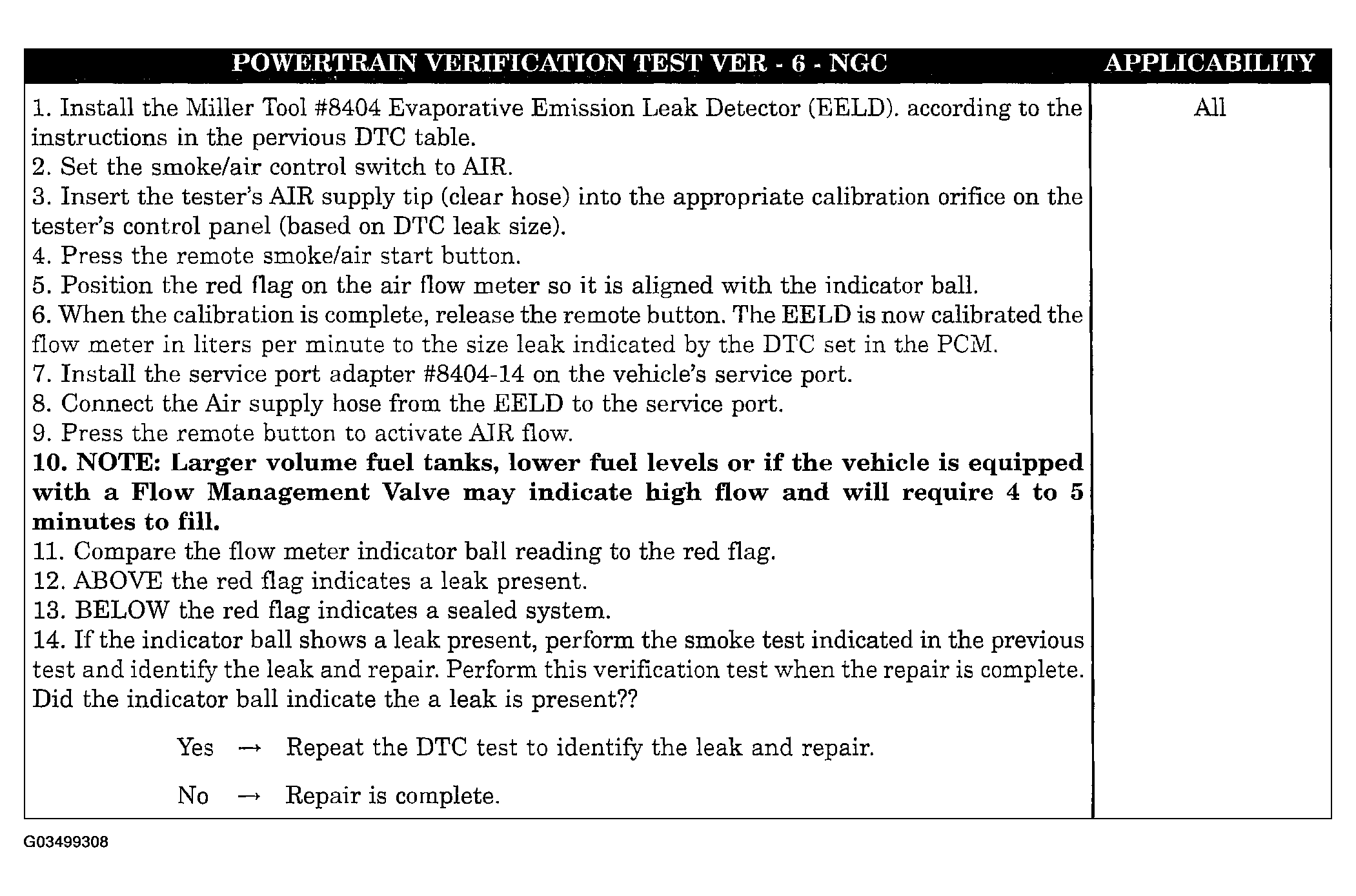

Fig 9: Powertrain Verification Test - VER-6-NGC

Courtesy of DAIMLERCHRYSLER CORP.

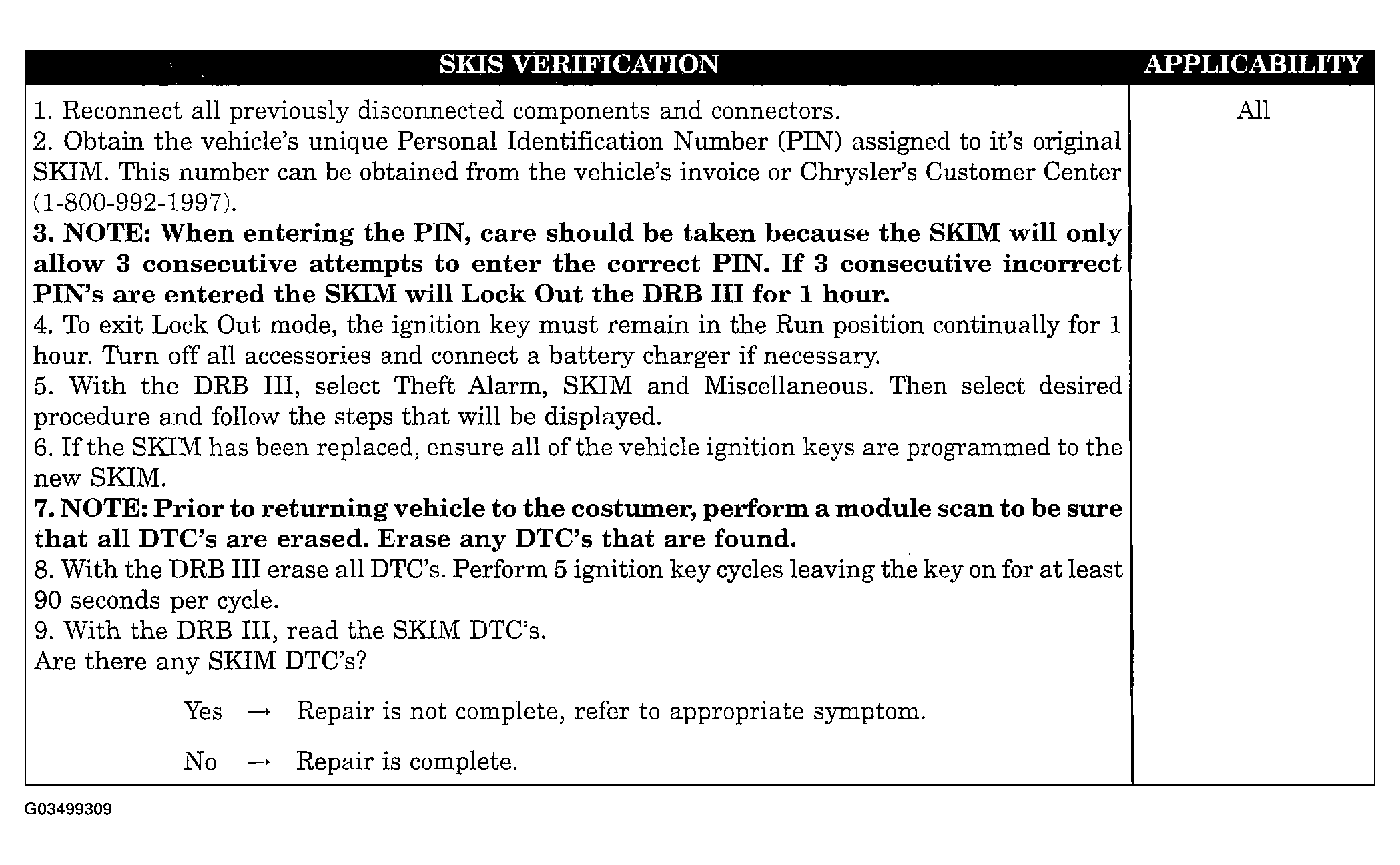

Fig 10: Skis Verification Test

Courtesy of DAIMLERCHRYSLER CORP.
