Left Front Power Window Switch Connector End View

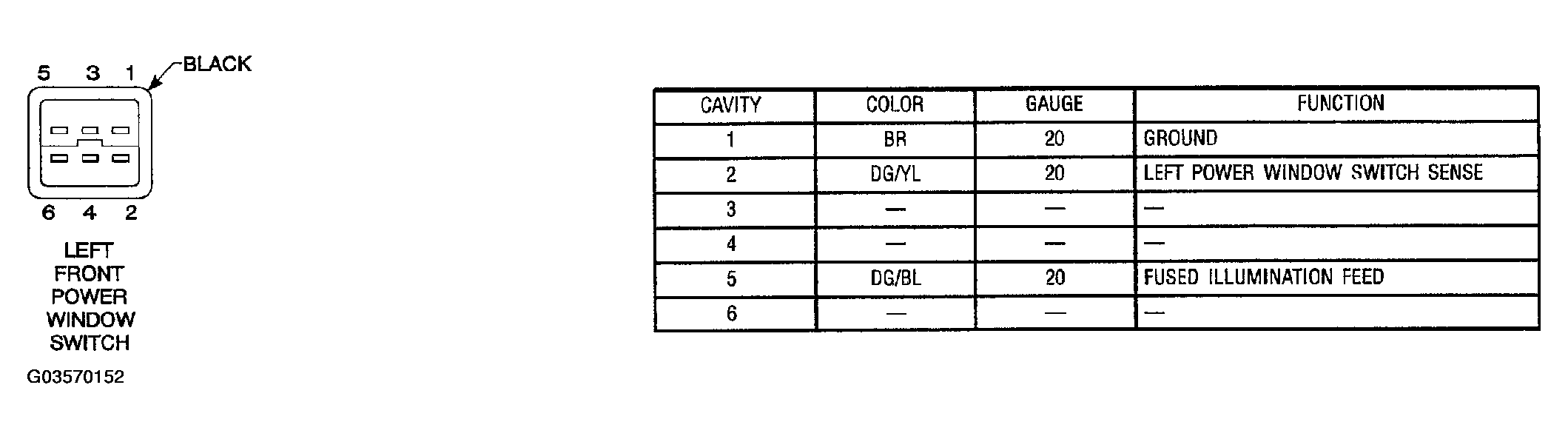

Fig 1: Left Front Power Window Switch Connector End View
G03570152Courtesy of DAIMLERCHRYSLER CORP.
