Body Control Module Connector End View (C4)

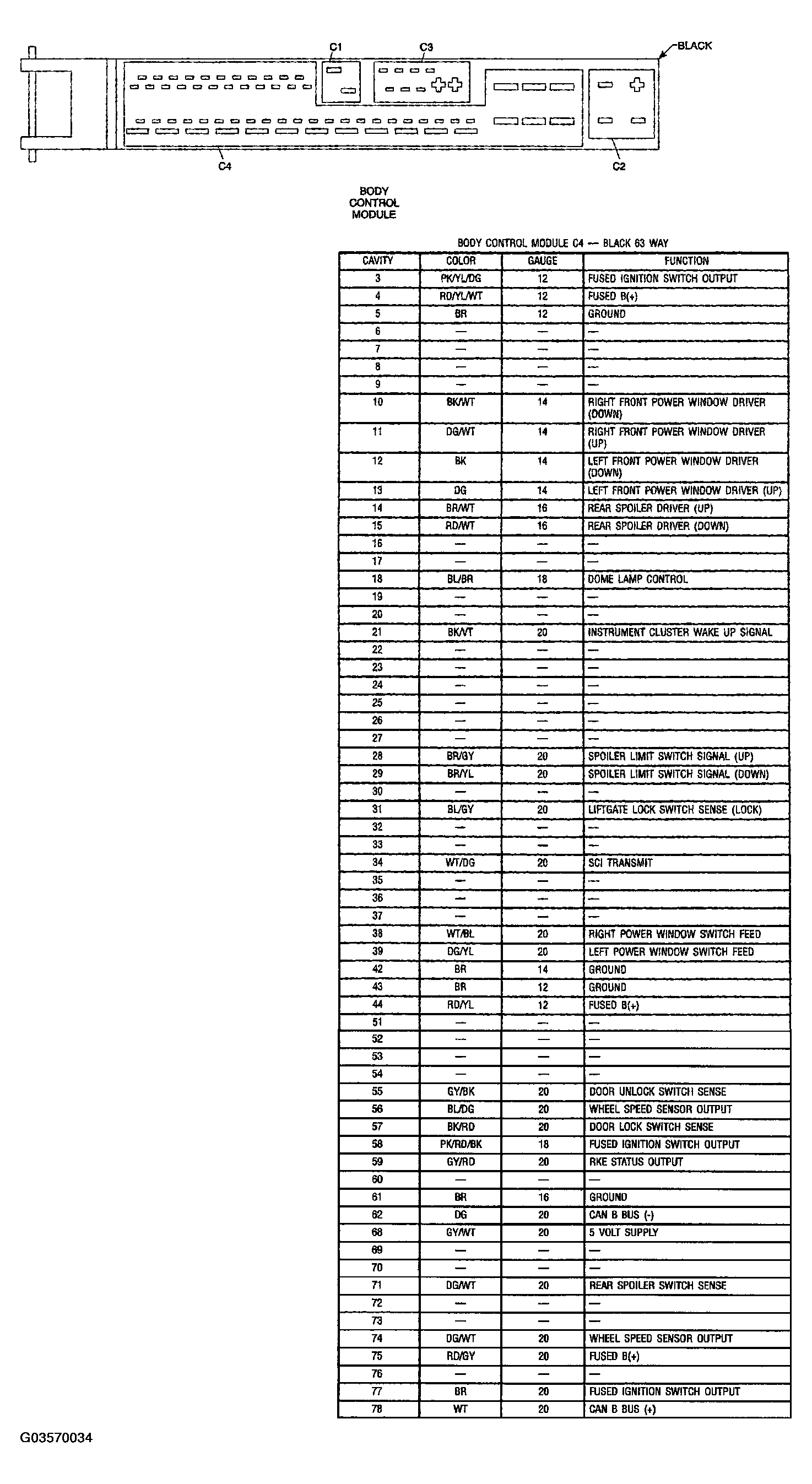

Fig 1: Body Control Module Connector End View (C4)
G03570034Courtesy of DAIMLERCHRYSLER CORP.
