Floor Jack

NOTE: Do not lift vehicle with a floor jack positioned under an axle shaft, a body sill, a steering linkage component, drive shaft, or front suspension arm.

Floor jack may be used to raise vehicle at locations shown. See Fig 1.

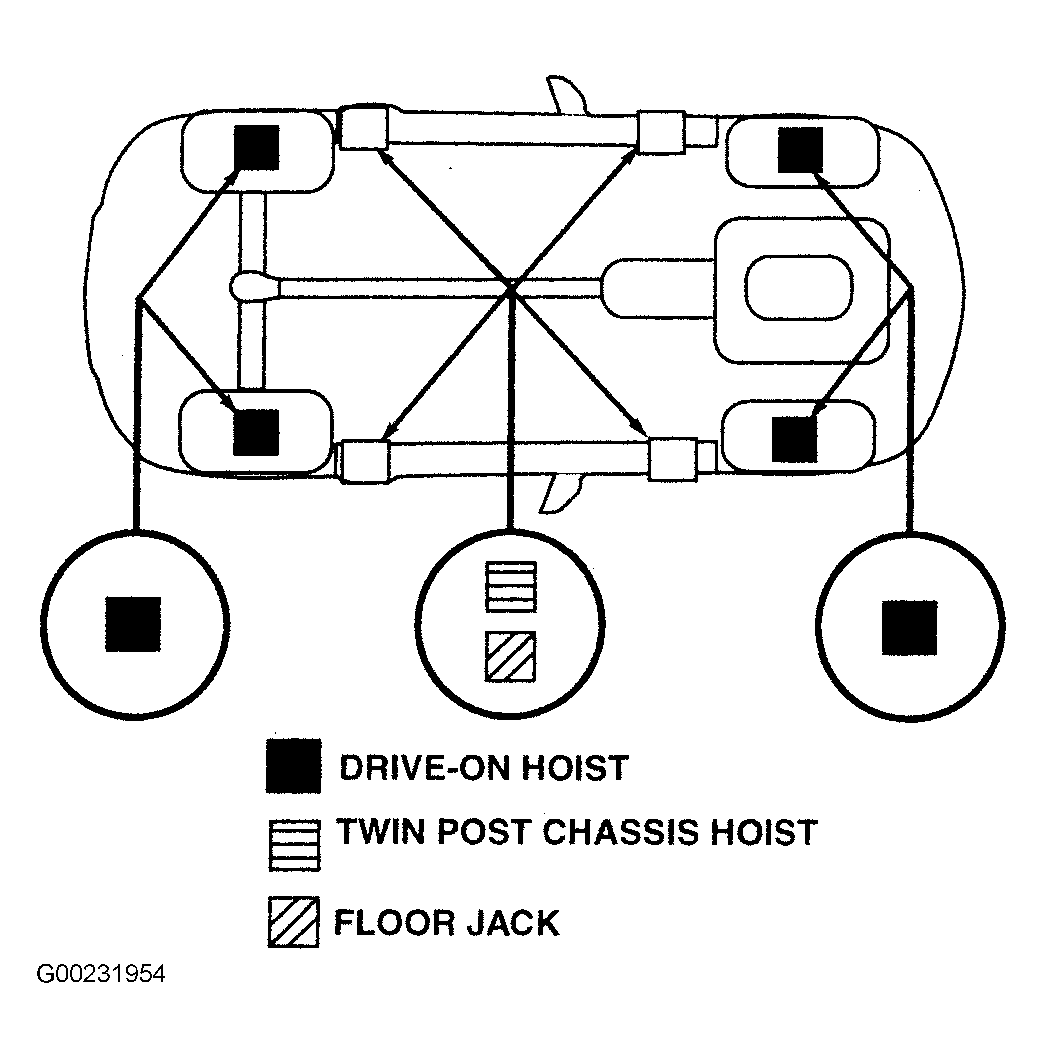

Fig 1: Locating Lifting Points
G00231954Courtesy of DAIMLERCHRYSLER CORPORATION
