Anti Theft Tow Sensor Connector End View

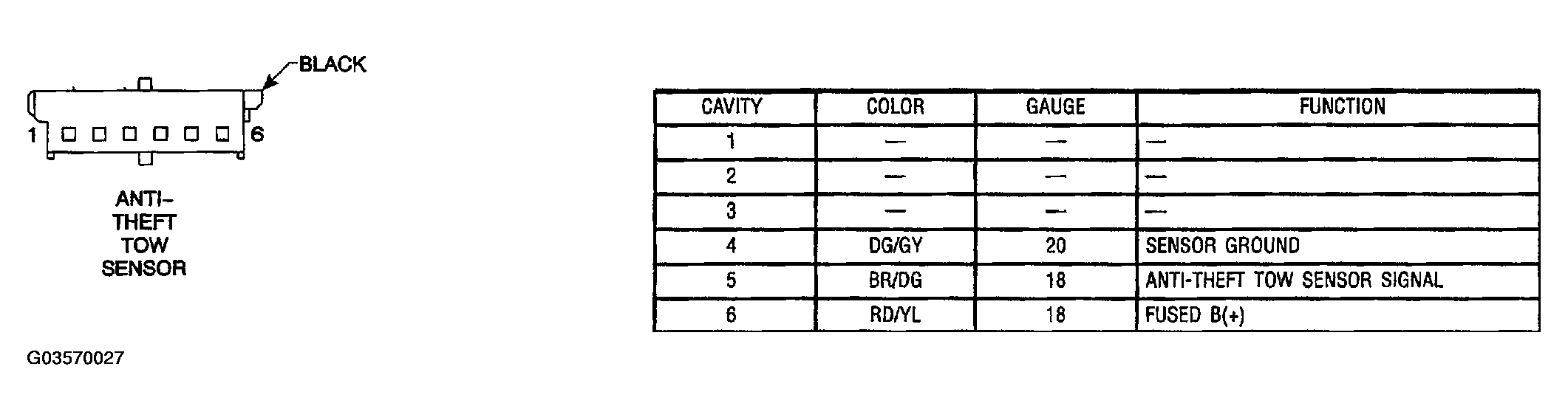

Fig 1: Anti Theft Tow Sensor Connector End View
G03570027Courtesy of DAIMLERCHRYSLER CORP.
