Circuit Diagram & Connector Identification

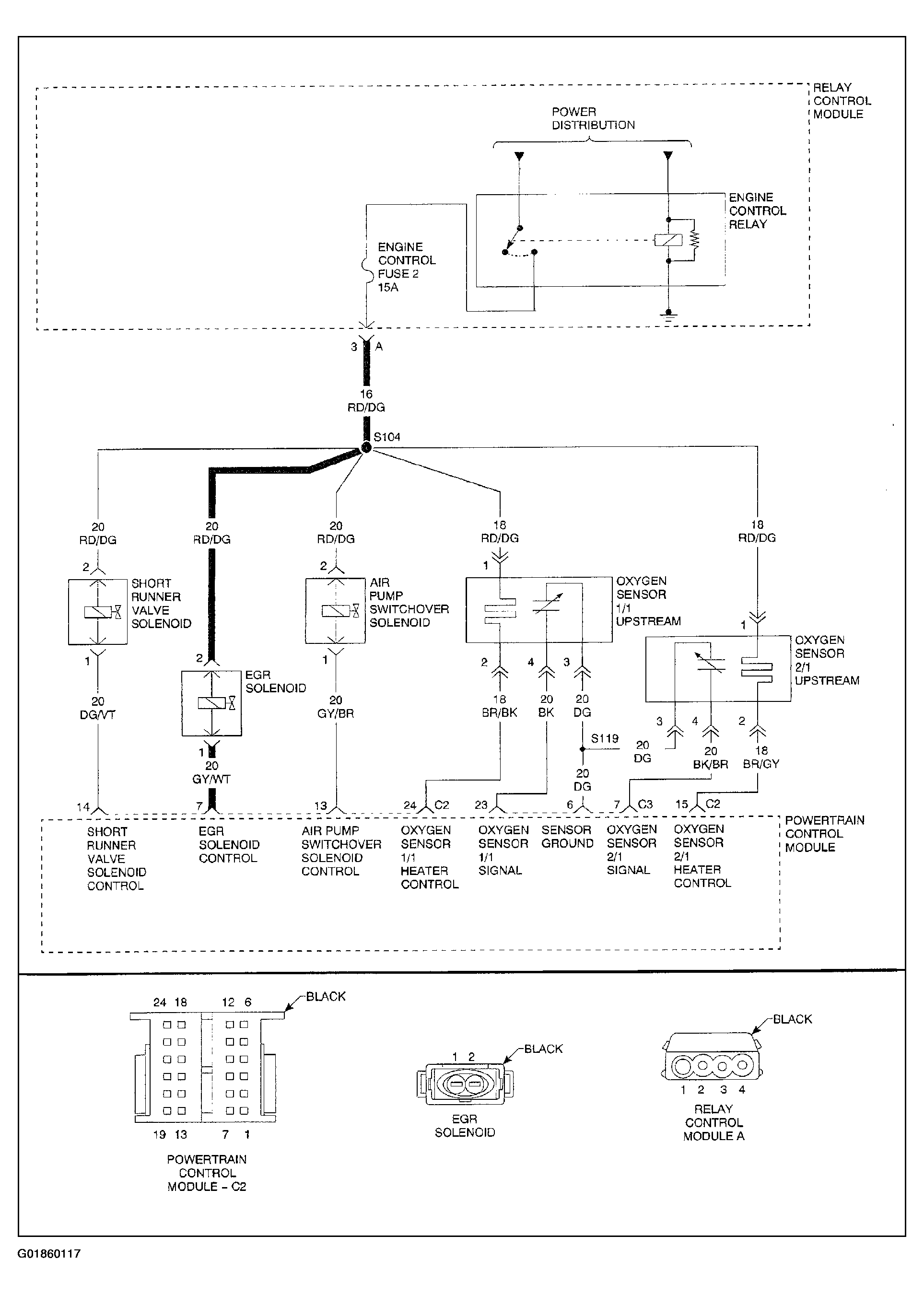

Fig 1: Identifying DTC P0400 Circuit Diagram & Connector Identification
G01860117Courtesy of DAIMLERCHRYSLER CORP.
