Schematics And Diagrams

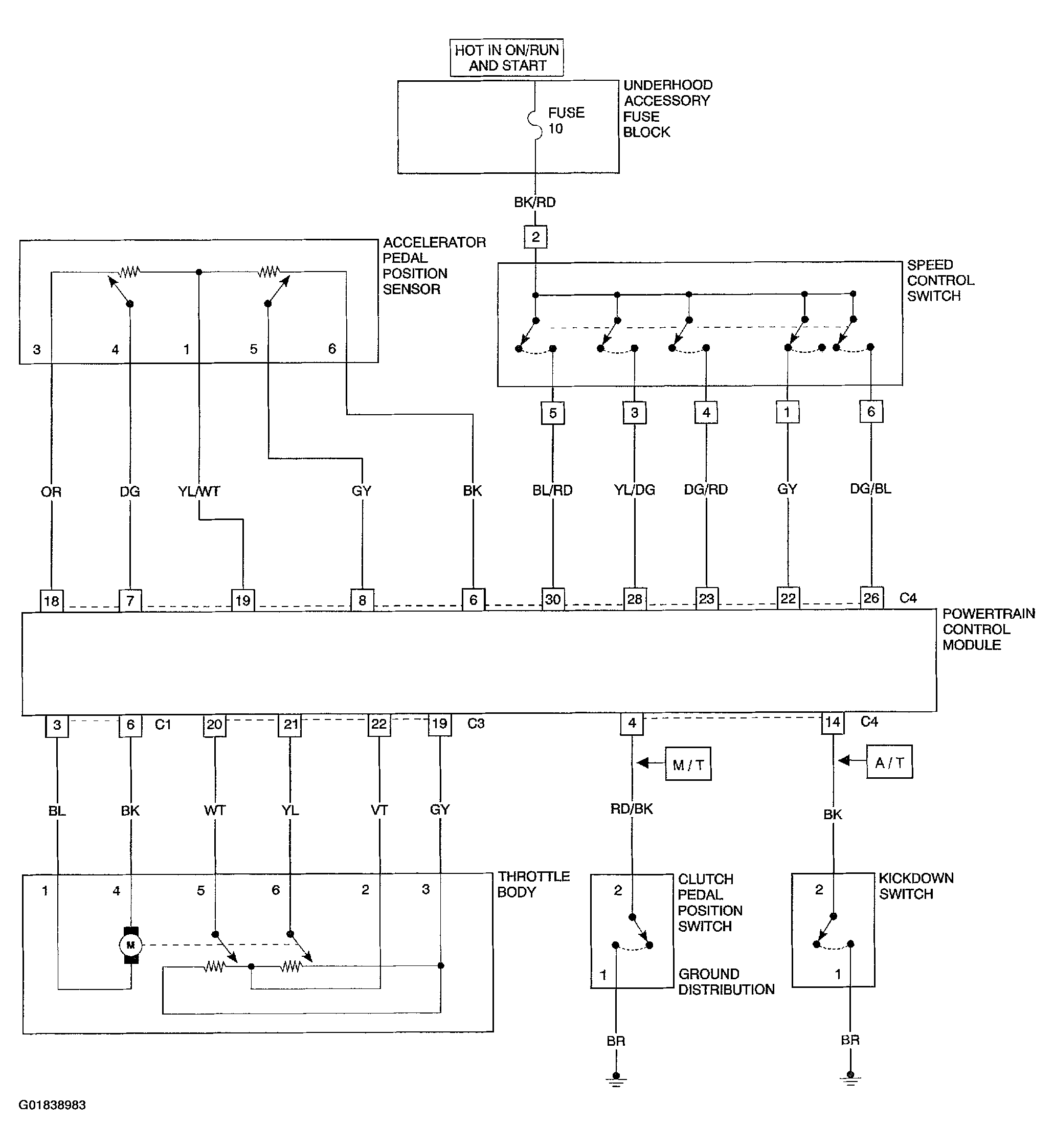

Fig 1: Identifying Speed Control Circuit Diagram
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
