Radiator Fan Control Module Connector End View

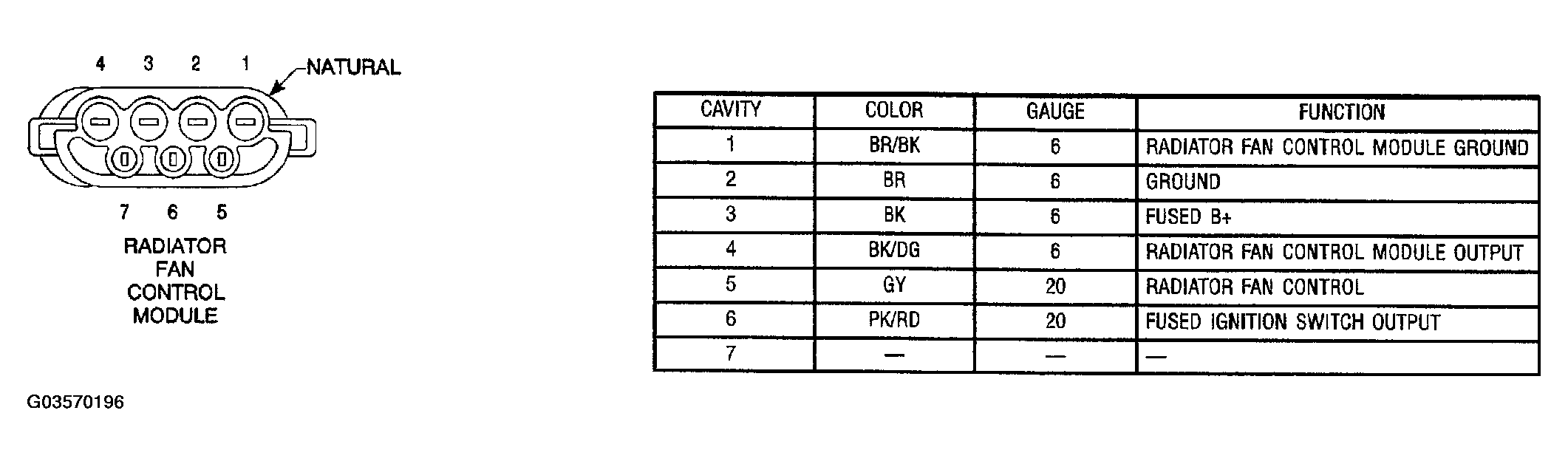

Fig 1: Radiator Fan Control Module Connector End View
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
