Powertrain Control Module Connector End View (C4)

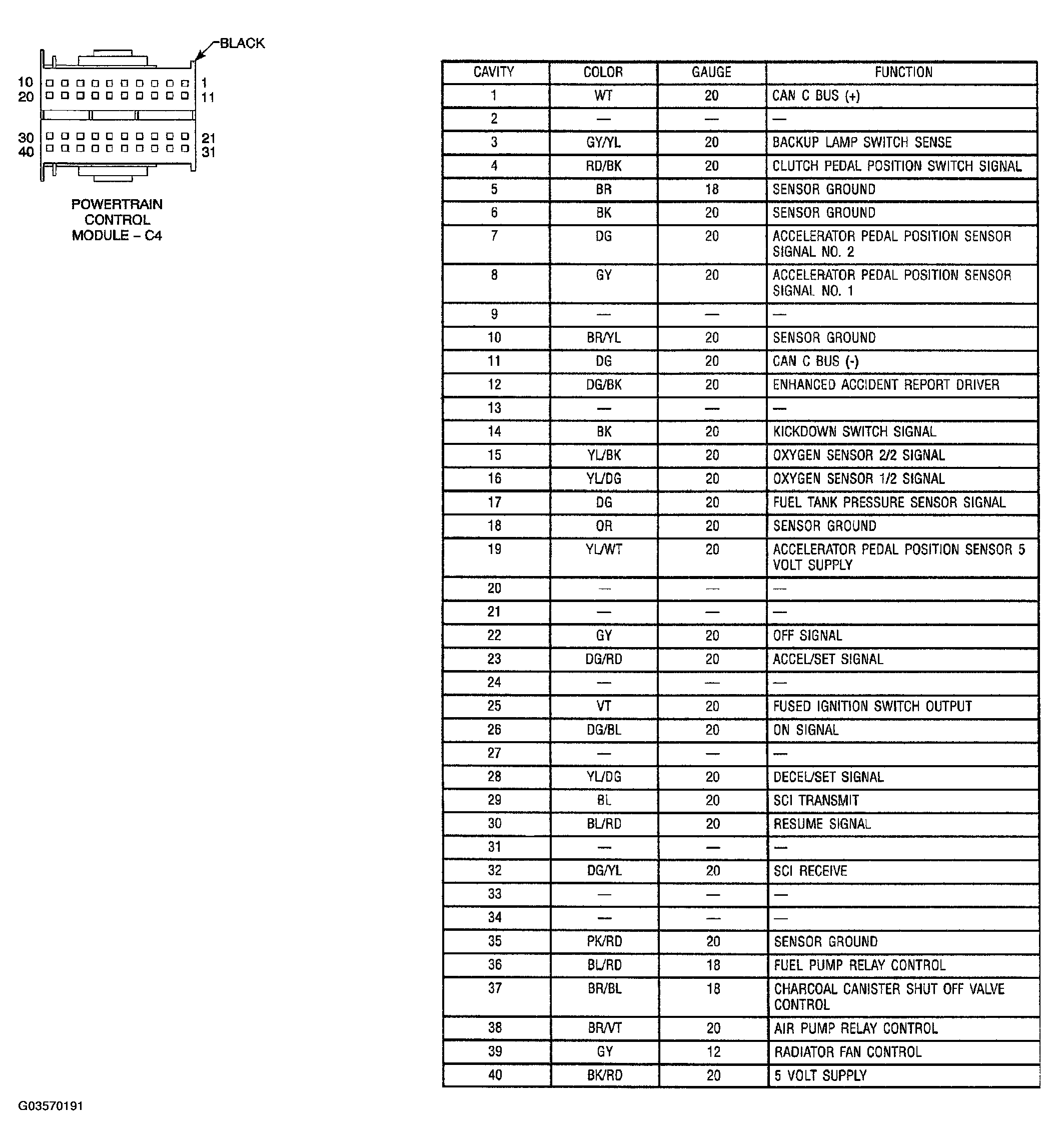

Fig 1: Powertrain Control Module Connector End View (C4)
G03570191Courtesy of DAIMLERCHRYSLER CORP.
