A/C Compressor Clutch Connector End View

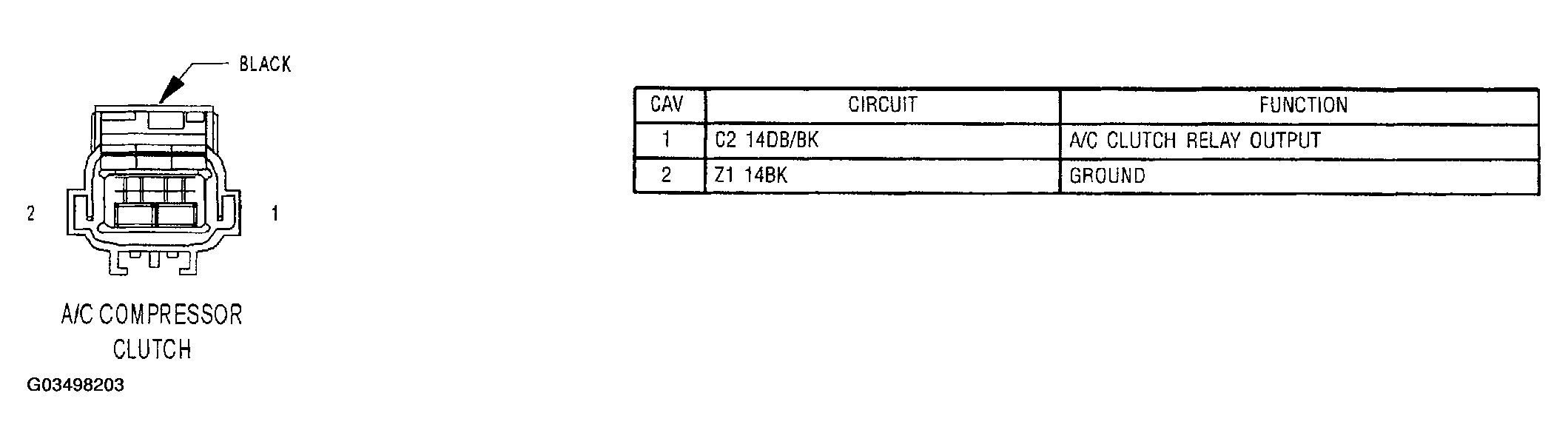

Fig 1: A/C Compressor Clutch Connector End View
G03498203Courtesy of DAIMLERCHRYSLER CORP.
