A/C Compressor Mounting Bracket Replacement

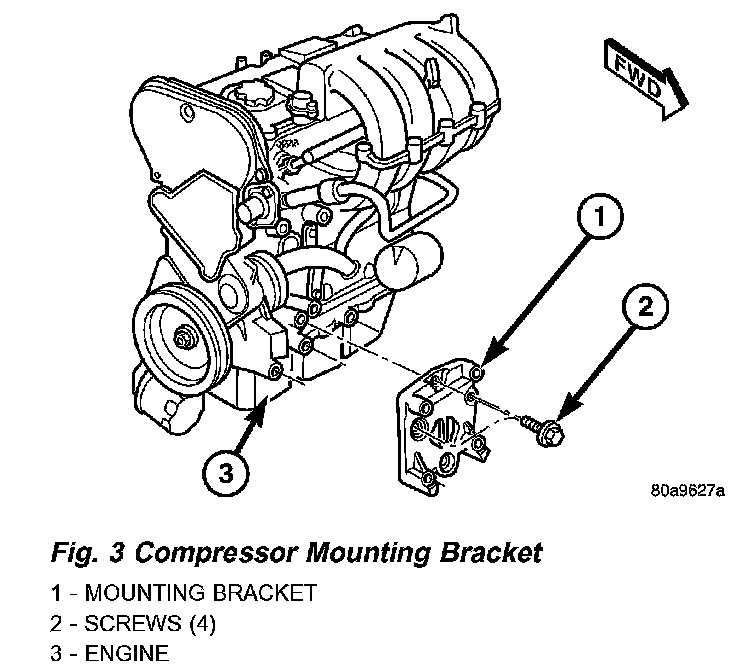

Fig.3 Compressor Mounting Bracket:

REMOVAL
1. Remove the compressor from the mounting bracket.
2. Remove the four screws that secure the compressor mounting bracket to the engine.
3. Remove the compressor mounting bracket from the engine.

INSTALLATION
1. Position the compressor mounting bracket onto the engine.
2. Install and tighten the four screws that secure the compressor mounting bracket to the engine. Tighten the screws to 54 Nm (40 ft. lbs.).
3. Reinstall the compressor onto the mounting bracket.
