Passenger Power Window Switch Connector End View

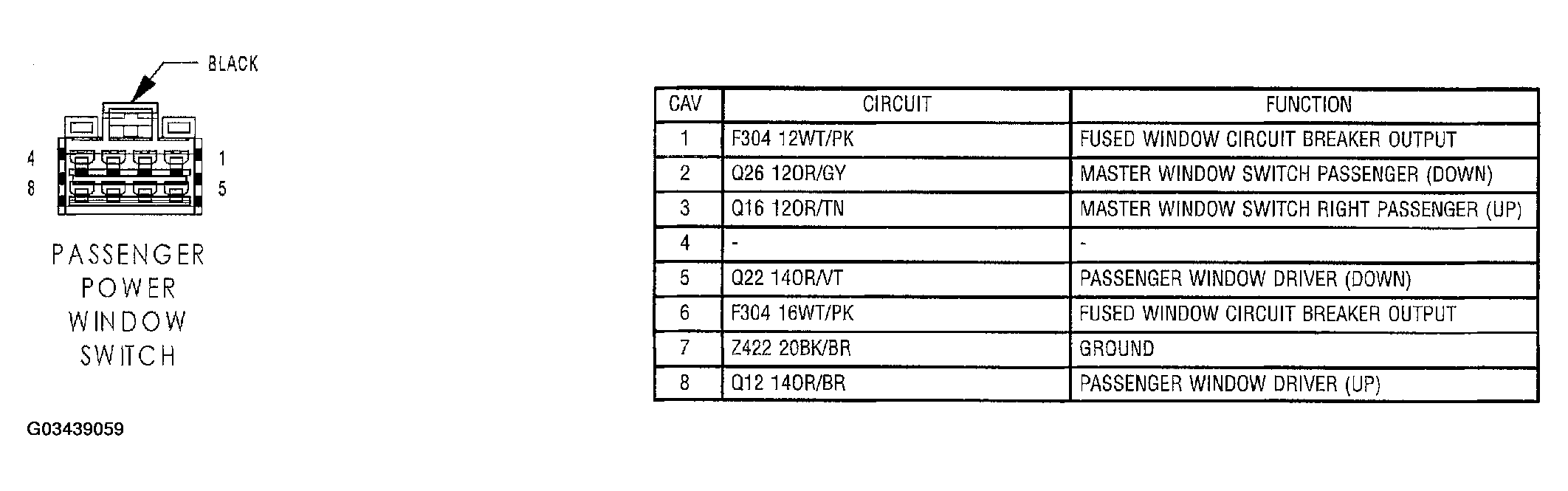

Fig 1: Passenger Power Window Switch Connector End View
G03439059Courtesy of DAIMLERCHRYSLER CORP.
